20mm SMD 5050 RGBW LED Strip 120LEDs/M DC24V

Description

Description

This is a PWM control RGBW color LED strip without Pixel
120pcs SMD RGB 5050 LEDs per meter, 5meters/reel, 20mm PCB width
The cutting unit length is 50mm(24V) per section
The PCB is made by 3 Ounce thick copper
All soldering Pads are very large, allowing you to easily cut and reconnect
DC24V constant voltage operation
Both ends have 5pin bare wires for powering
3M tape attached on backside of FPC

Share to

Facebook Twitter

Specification

Product Parameter

    PN
    S020120CC4PZ
    Voltage
    DC24V
    LED Type
    SMD 5050
    LED Quantity    120LEDs/m
    Color     RGBW
    Dimension
    5000*20mm
    Cutting unit
    50mm
    Lumen/m    R:184G:558B:113W:691lm
    Power
    28W/m
    Protocol
    PWM
    O.T    -25℃ ~ 60℃

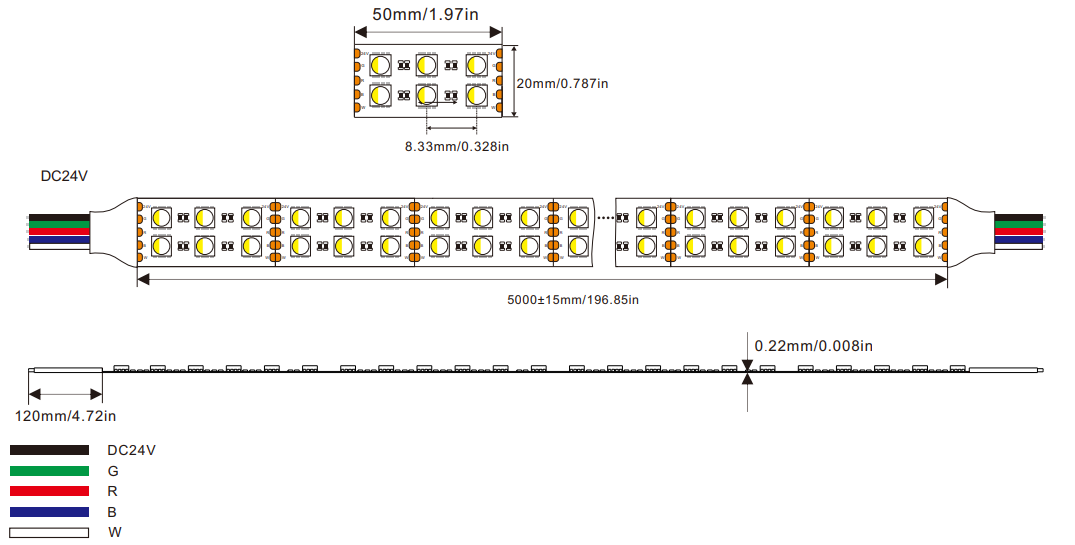

Dimension (unit:mm)

IP Rate
