Home > Products > Custom Product > Custom Flex Strip >    3mm Ultra Skinny Addressable LED Strip

3mm Ultra Skinny Addressable LED Strip

Description

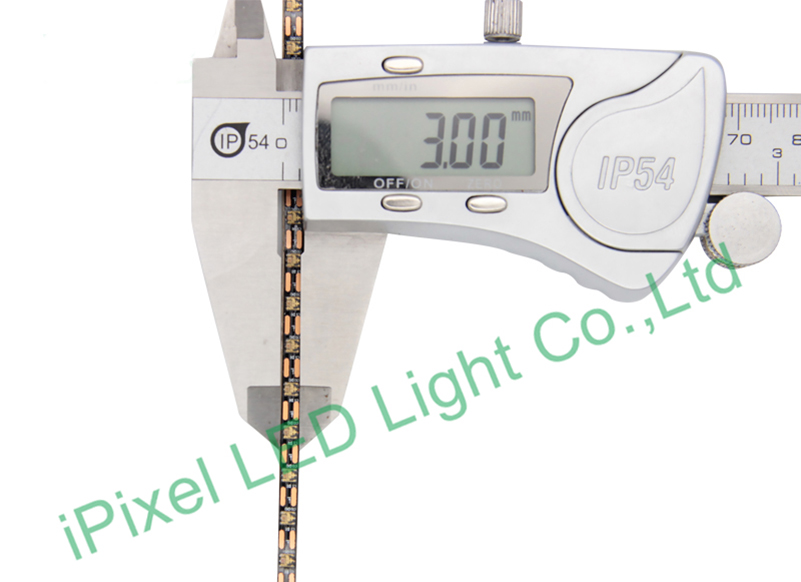

We already have 4mm addressable LED strips. Now we have developed a thinner LED strip with a width of 3mm PCB.

Internal Code： 10104-0569-00

Part Number: S003150EA3SA3

LED chip: 2020RGB

LEDs: 75 leds/pcs(150leds/m)

Share to

Facebook Twitter

Specification

We already have 4mm addressable LED strips. Now we have developed a thinner LED strip with a width of 3mm PCB.
Internal Code： 10104-0569-00
Part Number: S003150EA3SA3
LED chip: 2020RGB
LEDs: 75 leds/pcs(150leds/m)
IC type:APA102 8192
IC : 75/pcs (150pcs/m)
Voltage: DC5V
Power: 30W/M
Size: 500x3mm
Cables: 4pin bare cable

IP rate: IP20



"iPixel retains the copyright of official materials and supports cooperating clients in obtaining relevant information. Please contact us for inquiries and assistance.
