SMD 2835 Mini cut single color 10mm LED strip 160EDs/m DC24V

Description

Description

-SMD 2835 LED chip, 160LEDs/m,
 high luminance efficiency and high Ra
-Input voltage DC24V
-Flexible PCB, FPC color: white, 10mm width
-Standard length 5m per roll, the length also can be  customized

Share to

Facebook Twitter

Specification

Product Parameter

    PN
    S010160BC1LZ
    Voltage
    DC24V
    LED Type
    SMD 2835
    Power
    13W/m
    LED Quantity    160LEDs/m
     Color     3000K/4000K/6500K
     Lumen
    2047lm/m
    Dimension
    5000*10m
    Cutting unit
    6.25mm/1LED
    Materiar    FPC
    RA
    90
    IP Rate
    IP20
    O.T    -25℃ ~ 60℃

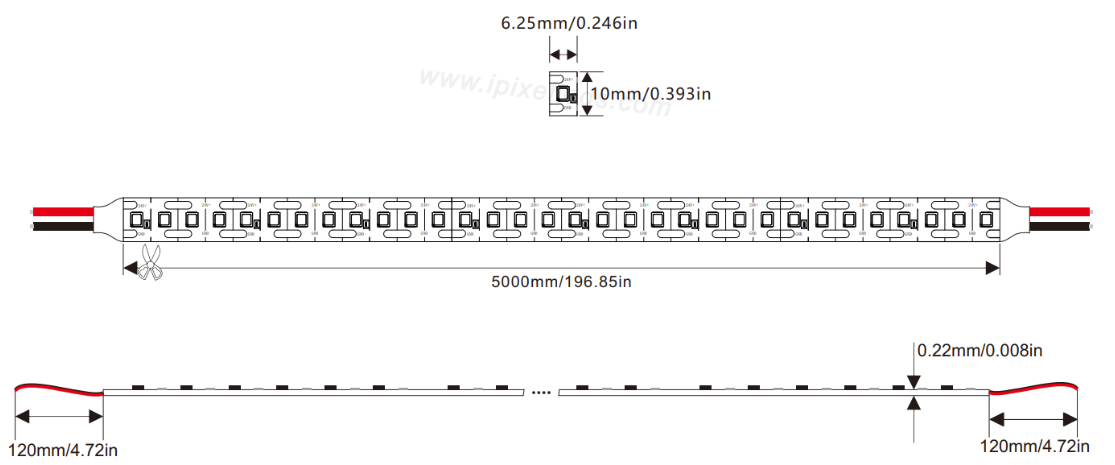

Dimension (unit:mm)
