5mm Super Narrow Addressable RGB COB LED Strip
Description
-This is a COB LED strip,Super Narrow 160LEDs/m
-The chip mounted on FPC directly,uniform light no hot spot /shadow
-Input voltage is DC5V
-Flexible PCB,the FPCB color is white
-The FPCB width is 5mm
-Standard 1M/roll, length can be customized
Share to
Specification
Product Parameter
| PN | S005160ZA3SF | S005160ZB3SF |
| Voltage | DC5V | DC12V |
| Power | 13W | 6W |
| LED Type | COB RGB | COB RGB |
| LED Quantity | 160LEDs/m | 160LEDs/m |
| Beam Angle | 140° | 140° |
| Luminance(lm/m) | R:50 G:110 B:30 | 30 |
| Control | SPI-WS2811&MW1838EA | SPI-MW1838EA |
| Dimension | 1000x5mm | 1000x5mm |
| Cutting unit | 12.5mm | 12.5mm |
| Materiar | FPC | FPC |
| IP Rate | IP20 | IP20 |
| O.T | -25℃ ~ 60℃ | -25℃ ~ 60℃ |

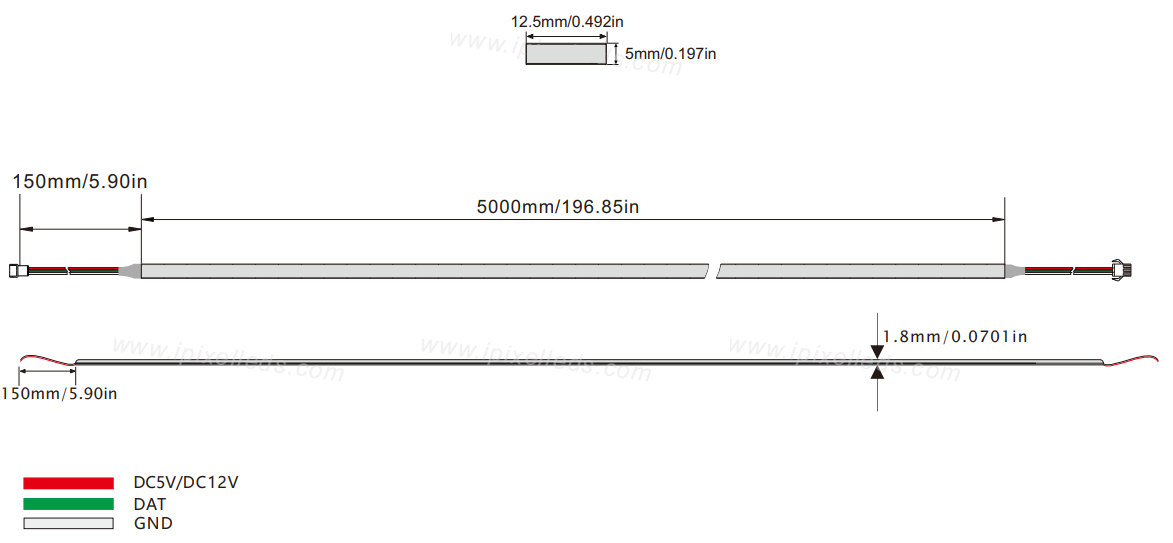

Dimension (unit:mm)
