COB 5mm 504LEDs/m single color led strip DC12V/24V
Description
-Chip-on-board design, with more chips on PCB,the lighting effects are more evenly
-5mm ultra slim PCB, cut length is only12V 7.94mm ro 24V13.89mm, better formore applications in furniture lighting or display lighting.
-Double layer 2oz PCB, for better flexibility, heat dissipationand voltage drop.
Share to
Specification
Product Parameter
| PN | S005504ZB1LZ | S005504ZC1LZ |
| Voltage | DC12V | DC24V |
| Power | 6W/m | 6W/m |
| SMD Type | COB | COB |
| LED Quantity | 504LEDs/m | 504LEDs/m |
| Color | W:3000K/4000K/6500K | W:3000K/4000K/6500 |
| Cutting length | 7.94mm | 13.98mm |
| Dimension | 5000*5mm | 5000*5mm |
| Luminance/m | W:570 lm | W:480 lm |
| Beam Angle | 180° | 180° |
| IP Rate | IP20/IP65 | IP20/IP65 |
| O.T | -25℃ ~ 60℃ | -25℃ ~ 60℃ |

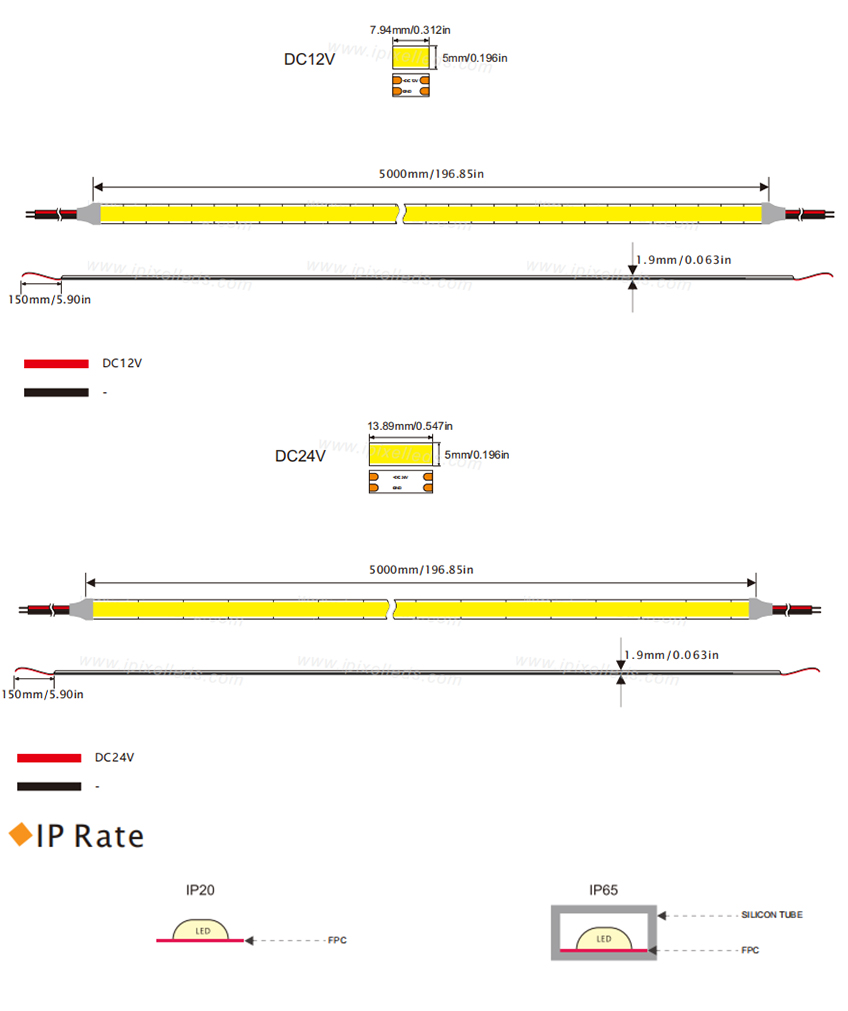

Dimension (unit:mm)
