8mm Side Emitting COB single color led strip - 480LEDs/M

Description

-High density, the light is even and soft

-High efficiency, remarkable energy saving effect

-The maximum luminous angle is 120°

-Chip longitudinal distribution, high reliability;

-Product have good color rendering consistency CRI

 better than 80

-SDCM is less than 5 steps

-Standard 5M/roll, length can be customized

-The side emitting COB LED strip comes out

 under the demand of edge lighting.

Share to

Facebook Twitter

Specification

Product Parameter

    PN
    S008840ZB1LZ(C)
 S008840ZC1LZ(C)
    Voltage
    DC12V
 DC24V
    Power
    10W/m
 10W/m
    SMD Type
    COB
 COB
    LED Quantity    840LEDs/m
 840LEDs/m
    Dimension
    5000*8mm
 5000*8mm
    Cutting length
    16.5mm/8LED 33mm/16LED
    Color    W:3000K/4000K/6500K W:3000K/4000K/6500K
    Lumens(lm/m)
    800 lm
 800 lm
    IP Rate    IP20/IP65  IP20/IP65
    O.T    -25℃ ~ 60℃  -25℃ ~ 60℃

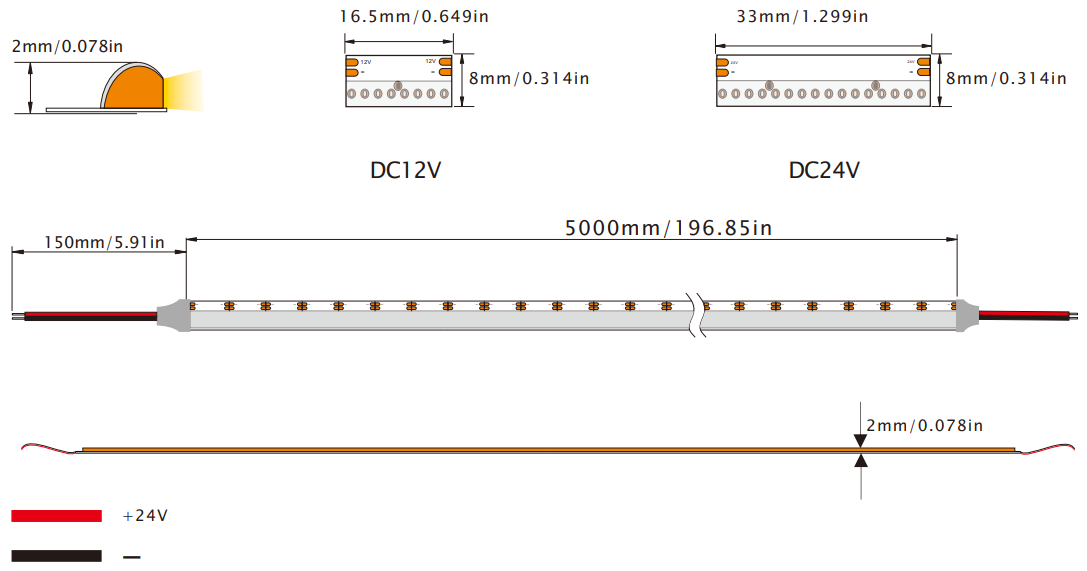

Dimension (unit:mm)
