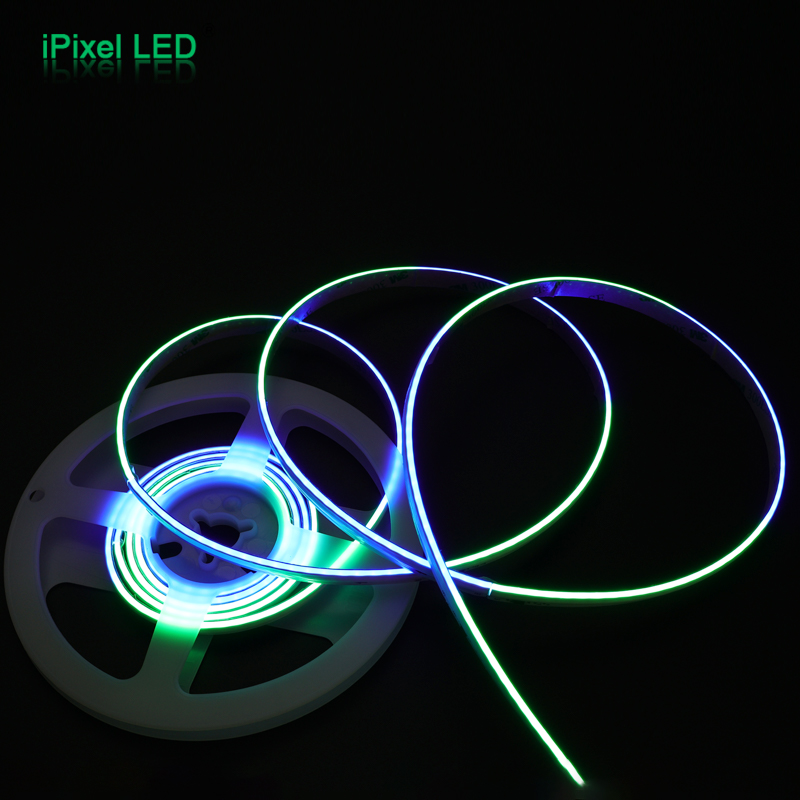

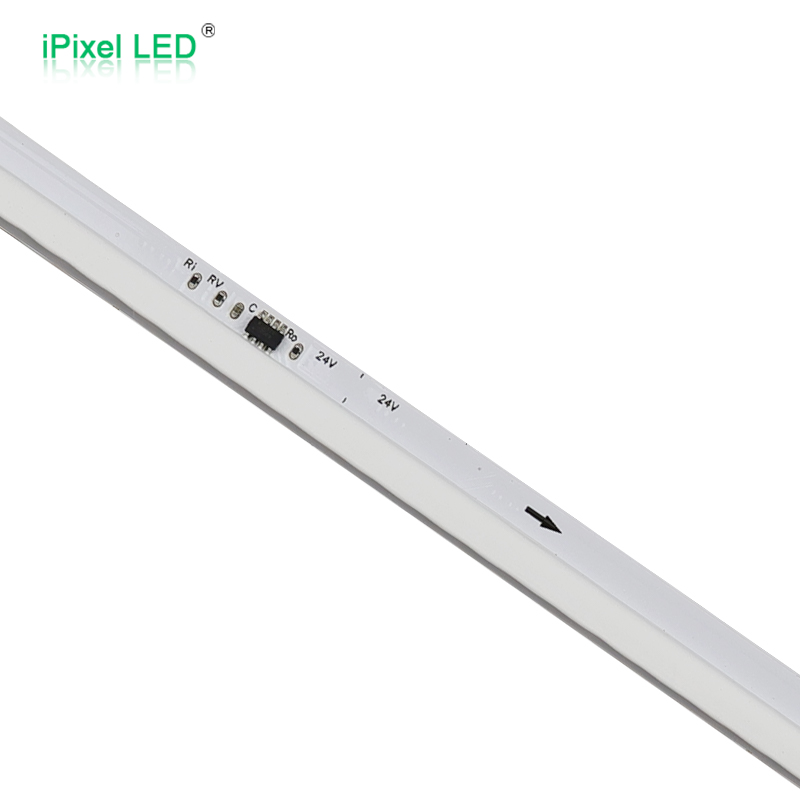

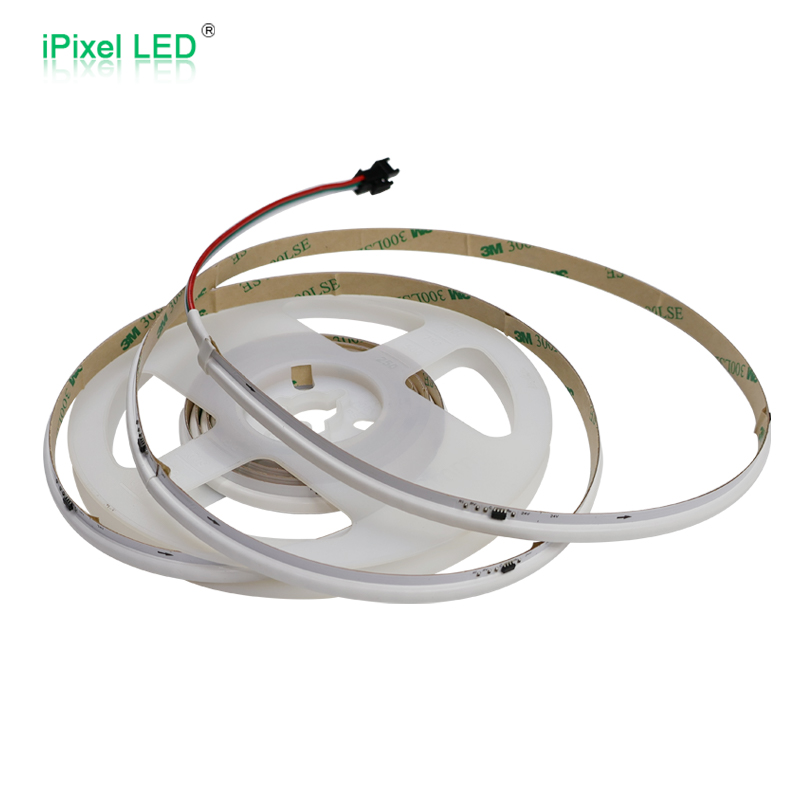

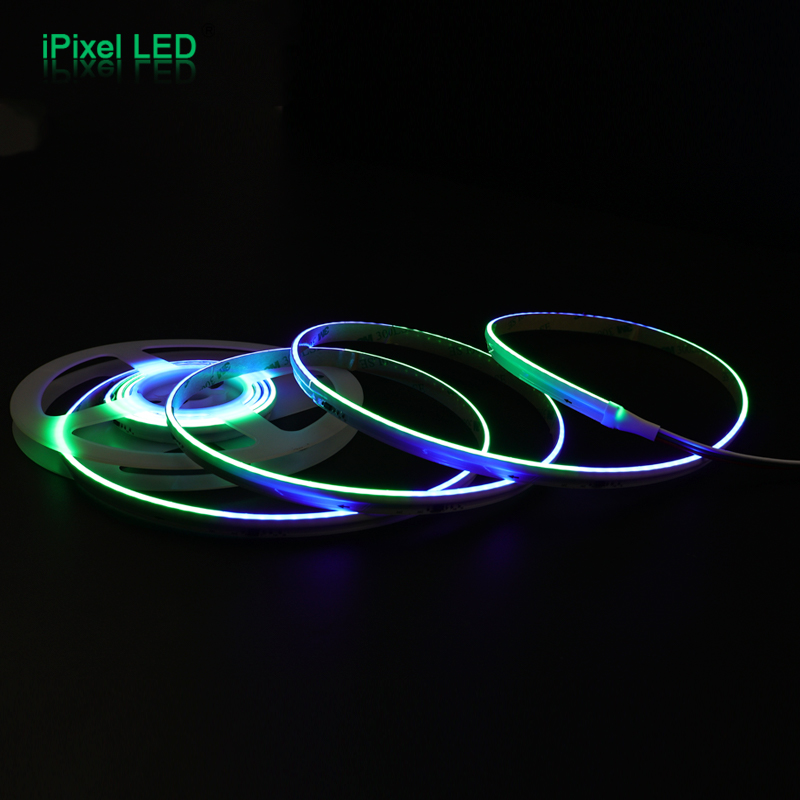

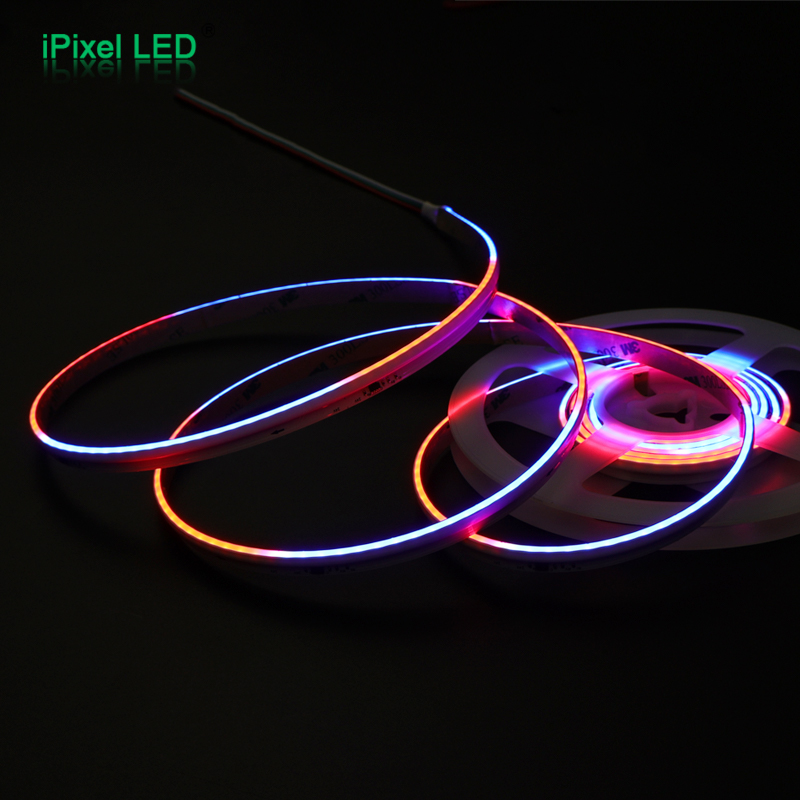

Side emitting Digital RGB COB LED Strip 630 LEDs/m DC24V
Description
-High density, the light is even and soft
-High efficiency, remarkable energy saving effect
-Double layer PCB, balancing voltage drop, heat
dissipation and flexibility.
-Chip longitudinal distribution, high reliability;
-Standard 5M/roll, length can be customized
Share to
Specification
Product Parameter
| PN | S008630ZC3SF(C) |
| Voltage | DC24V |
| Power | 12W/m |
| SMD Type | COB |
| LED Quantity | 630LEDs/m |
| Dimension | 5000*8mm |
| Cutting length | 100mm |
| Lumens(lm/m) | 30 |
| Wavelength | R:615-630 G:520-535 B:450-460nm |
| Control | SPI-WS2811 |
| O.T | -25℃ ~ 60℃ |
Dimension (unit:mm)
