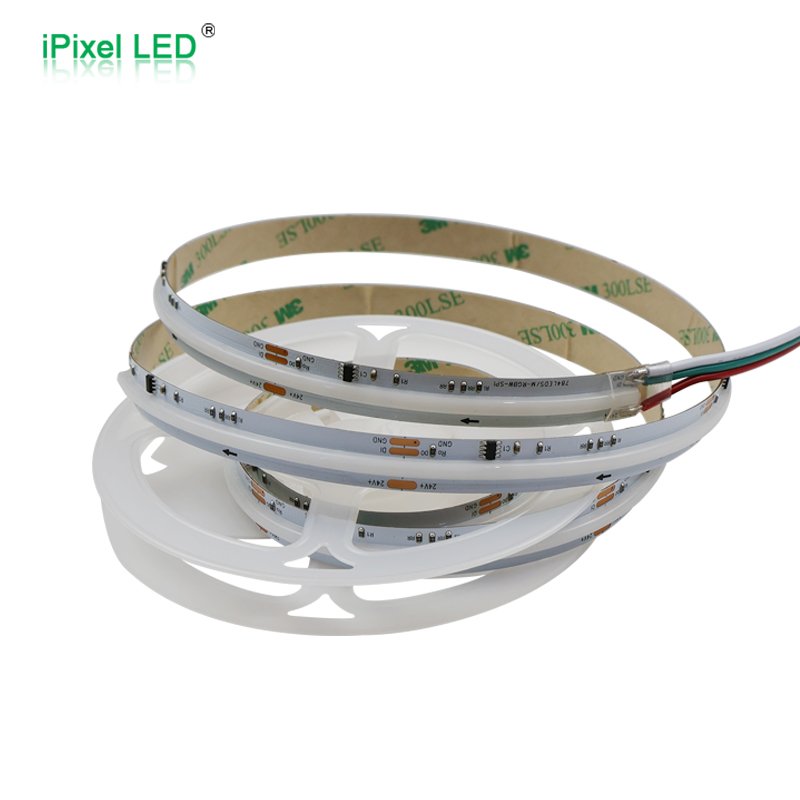

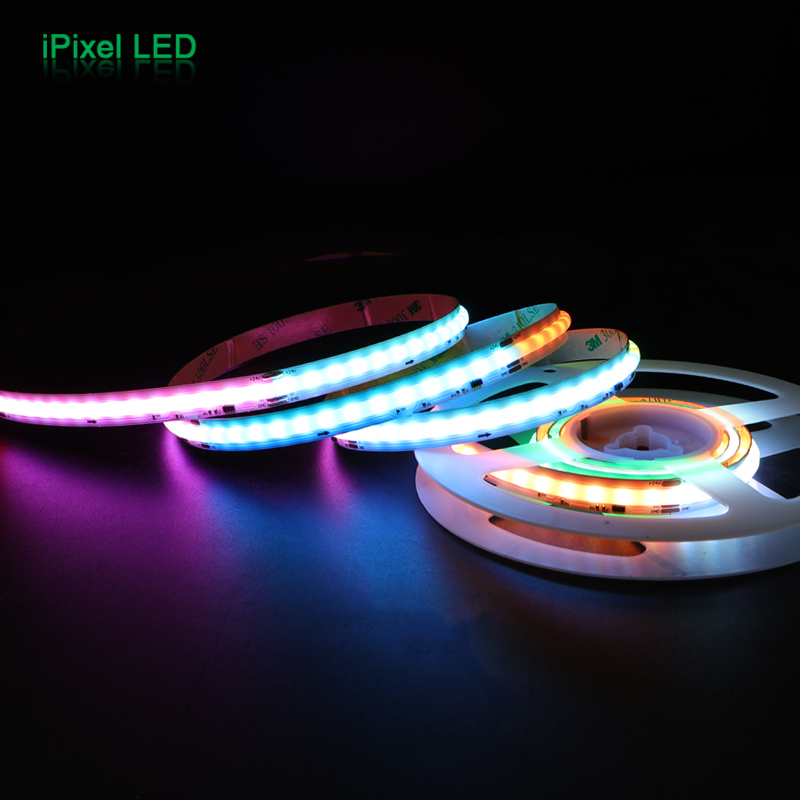

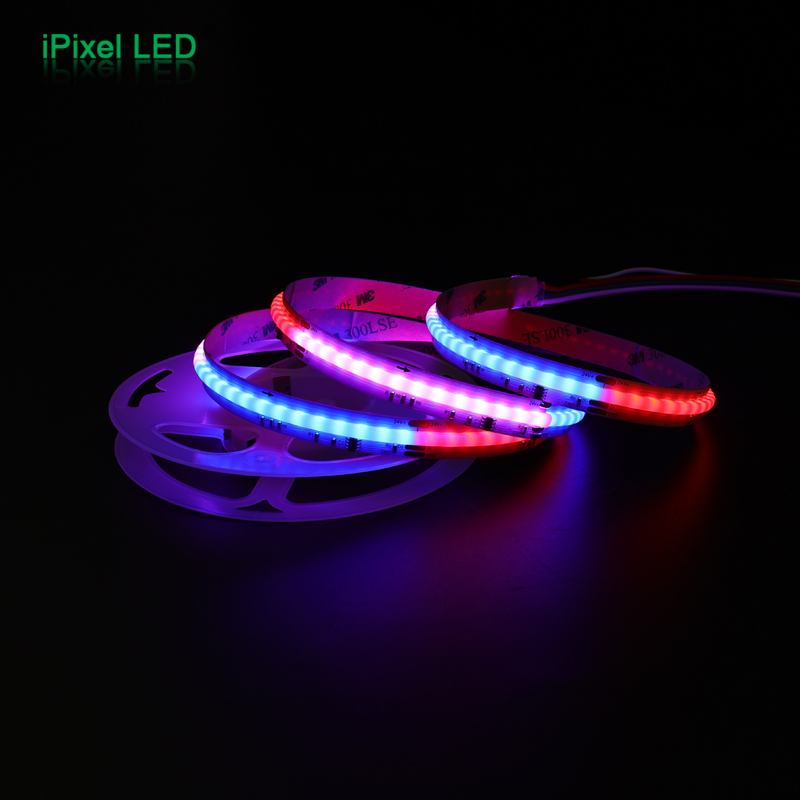

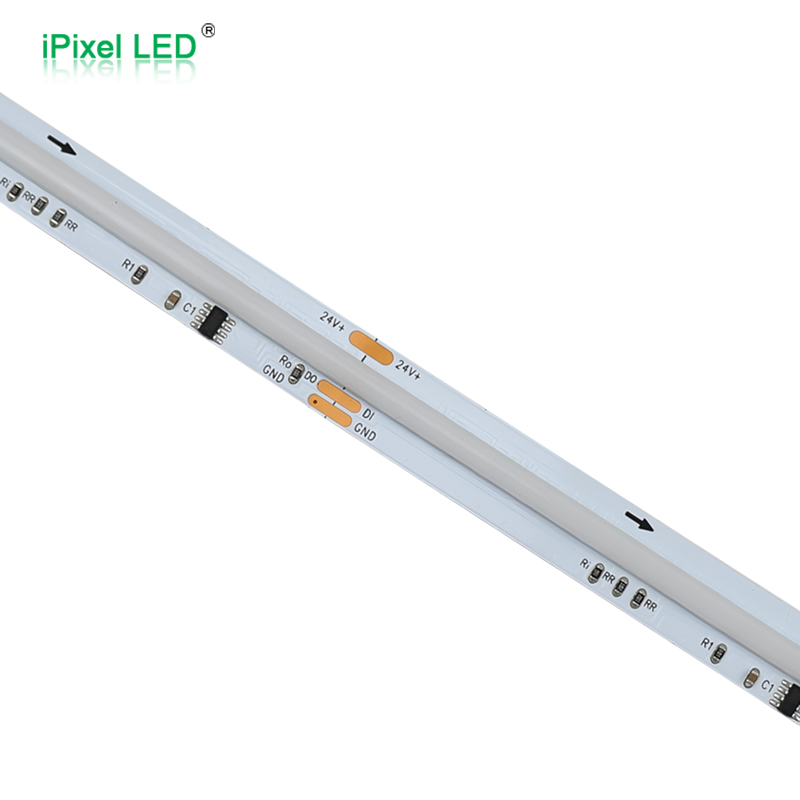

10mm Digital RGB COB LED Strip 784 LEDs/m DC24V

Description

-High density, the light is even and soft

-High efficiency, remarkable energy saving effect

-Double layer PCB, balancing voltage drop, heat

 dissipation and flexibility.

-Chip longitudinal distribution, high reliability;

-Standard 5M/roll, length can be customized

Share to

Facebook Twitter

Specification

Product Parameter

    PN
    S010784ZC4SC5
    Voltage
    DC24V
    Power
    21W/m
    SMD Type
    COB
    LED Quantity    784LEDs/m
    Dimension
    5000*10mm
    Cutting length
     71.41mm
    Lumens(lm/m)
    R:115 G:510 B:102 W:425 lm
    Wavelength
    R:615-630 G:520-535 B:450-460nm
    Control    SPI-WS2814
    O.T    -25℃ ~ 60℃

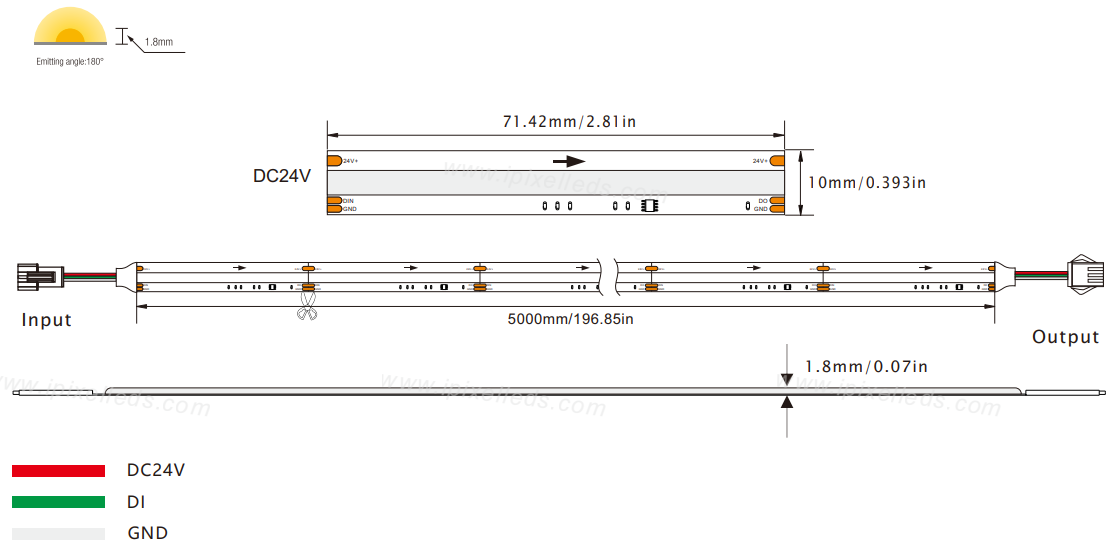

Dimension (unit:mm)
