High Efficiency 2835 single color LED strip 180LEDs/M DC24V
Description
Description
-Luminance efficiency up to 200LM/W， high Ra.
-Use 2835 high brightness led， high purity goldline，SAN AN chip.
-180LEDs/M， 1+2OZ copper thickness FPC，10mmPCB width.
-Higher efficiency：Consumes less energy，saving electricity and reducing energy costs.
-Longer lifespan：Lasts significantly longer，reducing the need for frequent replacements.
Share to
Specification
Product Parameter
| PN | S010180BC1LZ | Luminance efficiency | ||
| Voltage | DC24V | CCT | Ra80 | Ra90 |
| Power | 10W/m | XCustom | ☆Standard | |
| LED Type | SMD 2835 | X2000K | 145lm/w | 130lm/w |
| LED Quantity | 180LEDs/m | X2300K | 160lm/w | 145lm/w |
| Dimension | 3000*10mm | X2500K | 180lm/w | 160lm/w |
| Cutting Length | 50mm/9LEDs | X2700K | 200lm/w | 180lm/w |
| SDCM | <5, 3 step 1 bin | ☆3000K | 200lm/w | 180lm/w |
| ErP 2019 | B / C | X3500K | 200lm/w | 180lm/w |
| Beam Angle | 120° | ☆4000K | 200lm/w | 180lm/w |
| IP Rate | IP20/IP65 | X5000K | 200lm/w | 180lm/w |
| O.T | -25℃ ~ 60℃ | ☆6500K | 200lm/w | 180lm/w |

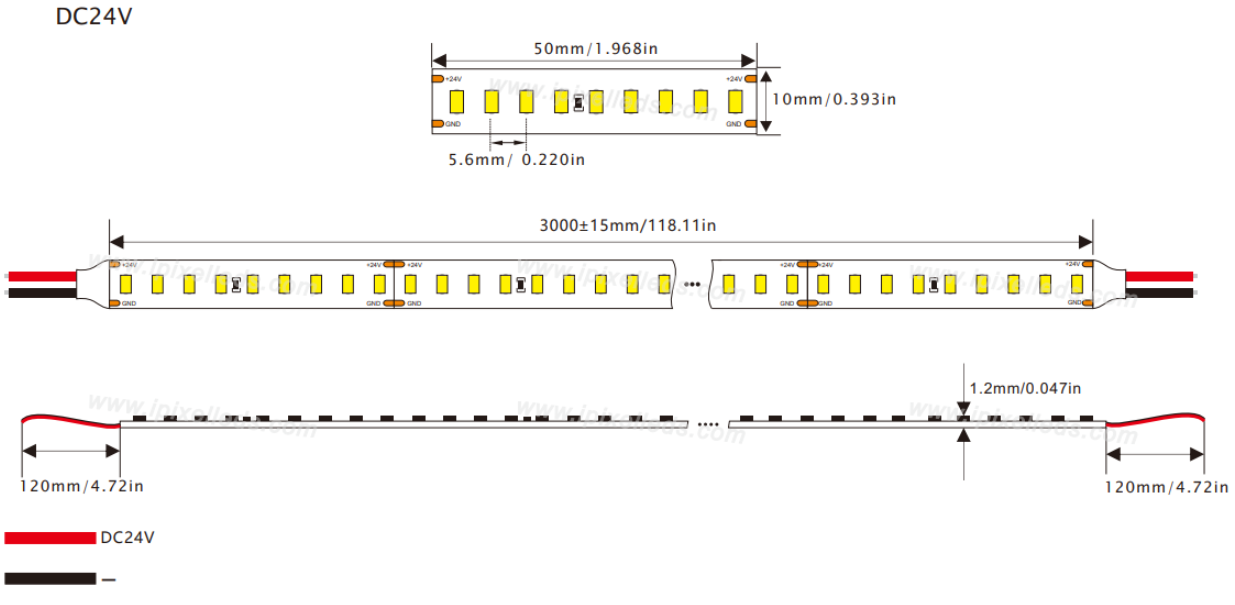

Dimension (unit:mm)
Light distribution curve
