High Efficiency 2835 single color LED strip 90LEDs/M DC24V
Description
Description
-Luminance efficiency upto200LM/W，high Ra.
-Use 2835 high brightness led，high purity goldline，SAN AN chip.
-90LEDs/M， 1+2OZ copper thickness FPC，10mmPCB width.
-Higher efficiency：Consumes less energy，saving electricity and reducing energy costs.
-Longer lifespan：Lasts significantly longer，reducing the need for frequent replacements.
Share to
Specification
Product Parameter
| PN | S010090BC1LZ | Luminance efficiency | ||
| Voltage | DC24V | CCT | Ra80 | Ra90 |
| Power | 5W/m | X Custom | ☆ Standard | |
| LED Type | SMD 2835 | X2000K | X145lm/w | X130lm/w |
| LED Quantity | 90LEDs/m | X2300K | X160lm/w | X145lm/w |
| Dimension | 5000*10mm | X2500K | X180lm/w | X160lm/w |
| Cutting Length | 100mm/9LEDs | X2700K | X200lm/w | X180lm/w |
| SDCM | <5, 3 step 1 bin | ☆3000K | ☆200lm/w | ☆180lm/w |
| ERP 2019 | B / C | X3500K | X200lm/w | X180lm/w |
| Beam Angle | 120° | ☆4000K | ☆200lm/w | ☆180lm/w |
| IP Rate | IP20/IP64/IP65/IP67 | X5000K | X200lm/w | X180lm/w |
| O.T | -25℃ ~ 60℃ | ☆6500K | ☆200lm/w | ☆180lm/w |

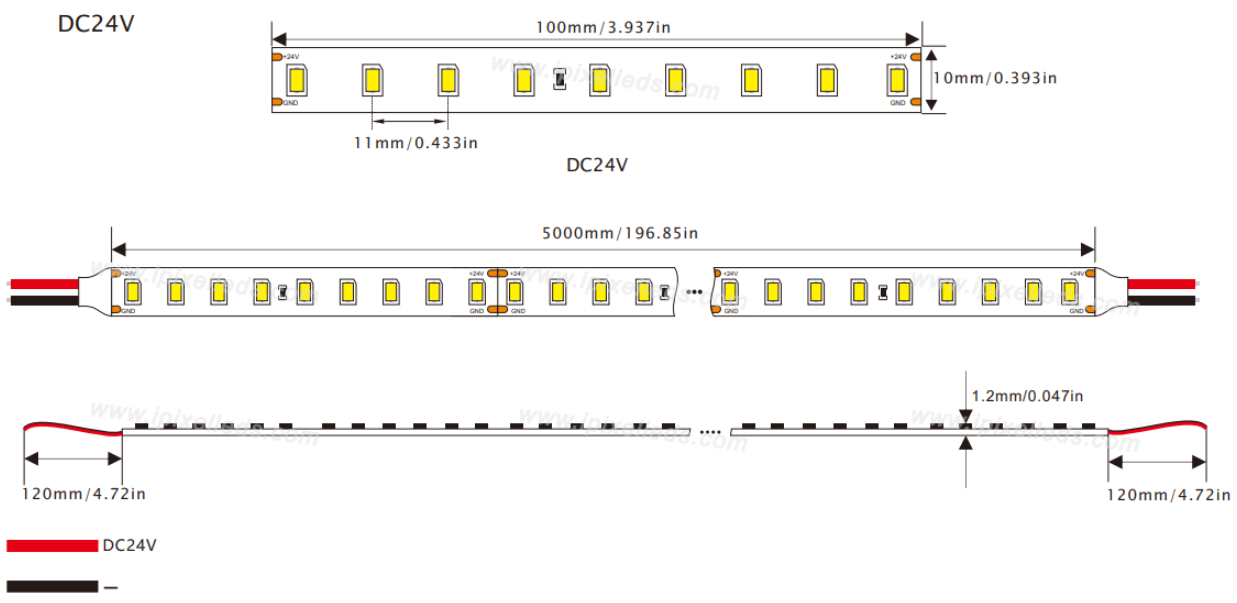

Dimension (unit:mm)
SDCM comparison
IP Rate
