SMD2835 30mm Single Color Flex Led Strip 420LEDs/m DC24V
Description
Description
- Use 2835 high brightness led, high purity gold line, SANAN chip.
- 420LEDs/M, high luminance efficiency and high Ra.
- Input voltage DC24V.
- Flexible PCB, FPC color: white, 30mm PCB width.
- Standard length 5m per roll. The length also can be customized.
Share to
Specification
Product Parameter
| PN | S030420BC1LZ |
| Voltage | DC24V |
| LED Type | SMD 2835 |
| LED Quantity | 420LEDs/m |
| Color | 3000K/4000K/6500K |
| Luminance efficiency | 110Lm/W@RA80, 100Lm/W@RA90 |
| Dimension | 5000x30mm |
| Cutting unit | 33.33mm/14LED |
| Materiar | FPC |
| Power | 30W/m |
| IP Rate | IP20 |
| O.T | -25℃ ~ 60℃ |

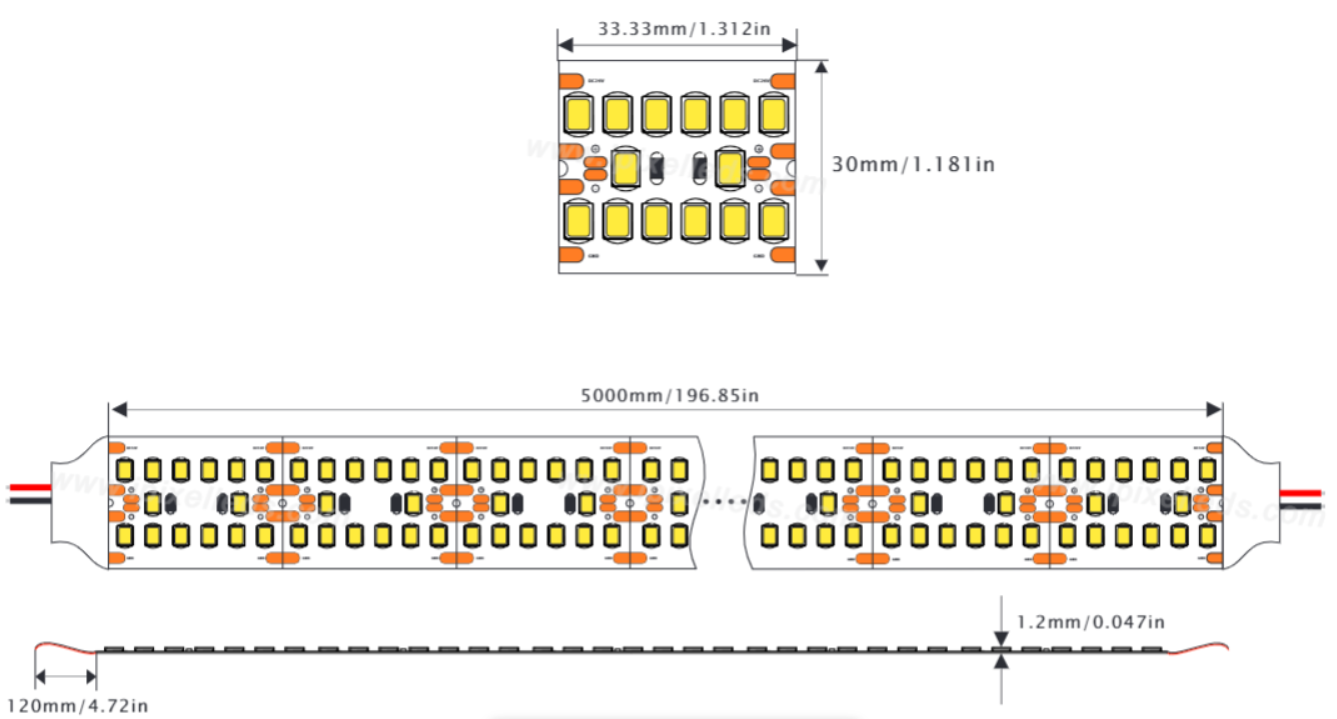

Dimension (unit:mm)
