S Shape (ziggag) Addressable LED strip 48LEDs/M DC5V
Description
Description
S shape(zigzag) addressable flex led strip
SMD5050 RGB 48LEDs/m, 5m in a reel, and 3LEDs per section cut-able every 3 leds
The IC is SK6812, with addressable individually control
The biggest advantage is the S shape, which can be bend at any Angle
Only available in IP20 non-waterproof version
Share to
Specification
Product Parameter
| PN | S005048CA3SA1(S) |
| Voltage | DC5V |
| Power | 10W/m |
| LED Type | SMD5050 RGB |
| LED Quantity | 48LEDs/m |
| Cutting length | 62.5mm/3LED |
| Dimension | 5000*5mm |
| Protocol | SPI - SK6812 |
| Pixel/M | 48 |
| Materiral | FPC |
| Luminance/m | R:60Lm G:150Lm B:35Lm |
| O.T | -25℃ ~ 60℃ |

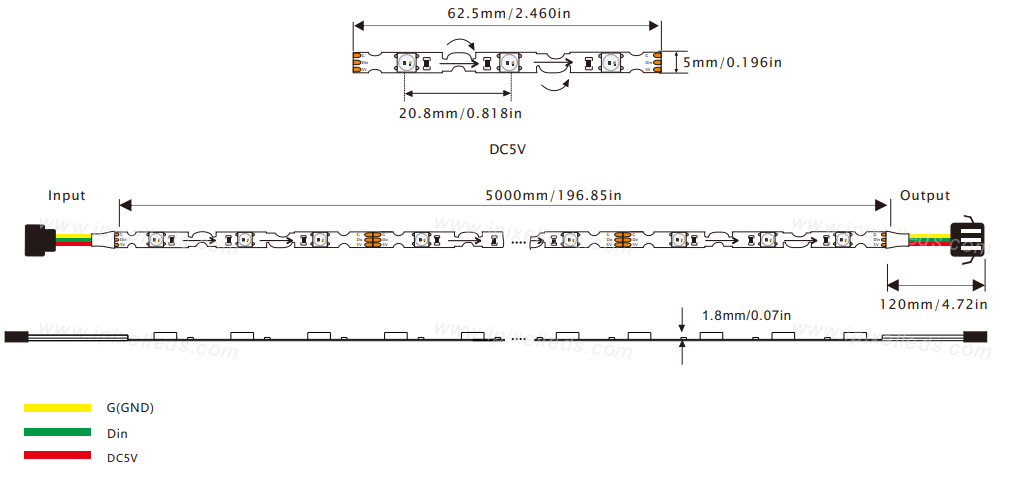

Dimension (unit:mm)
IP Rate
