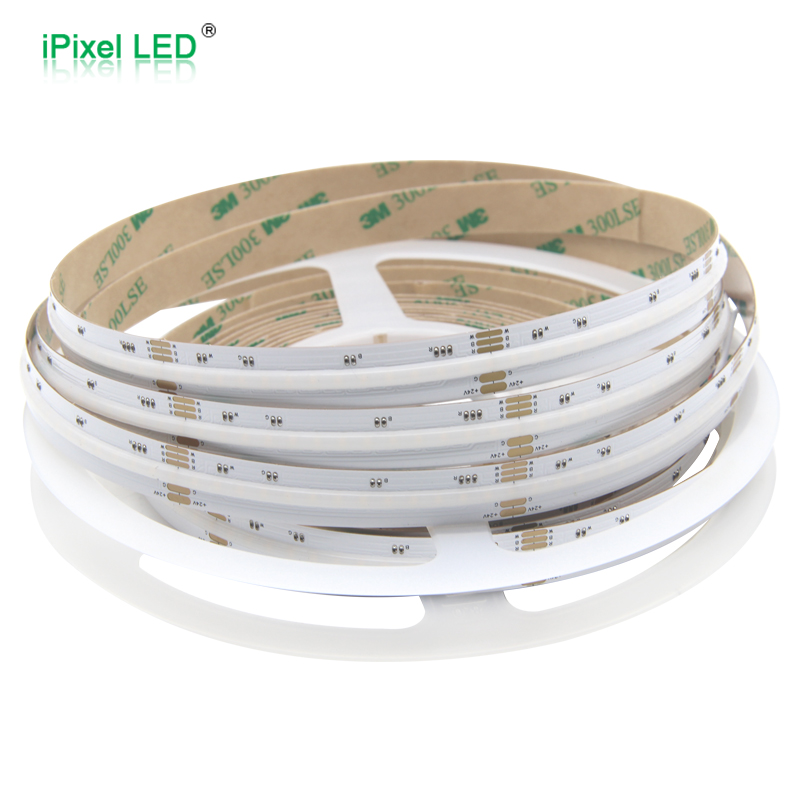

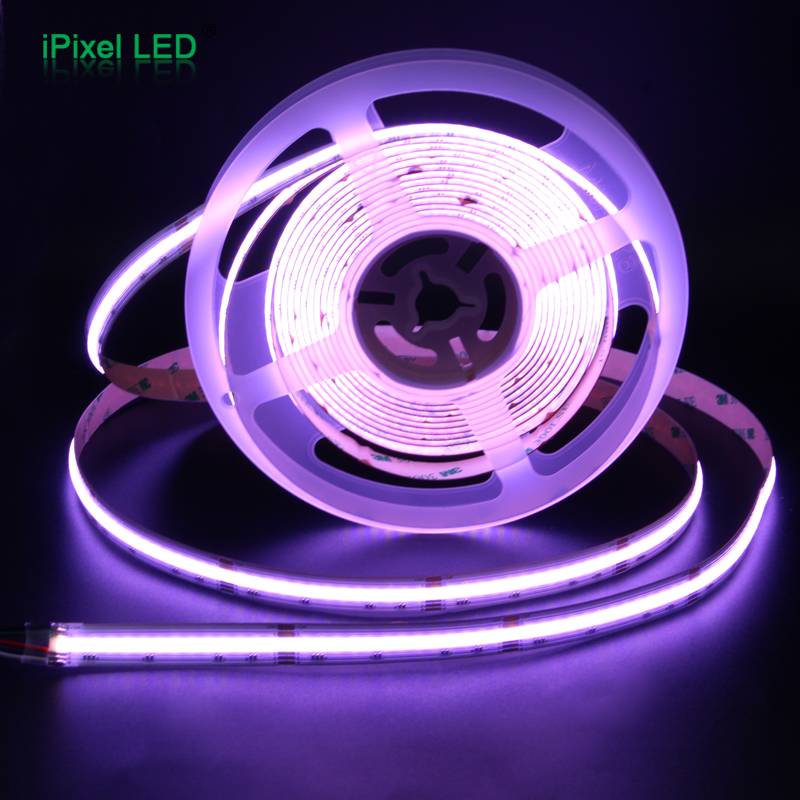

COB RGBW LED flexible strip 896LEDs/m DC24V

Description

-High density, the light is even and soft

-High efficiency, remarkable energy saving effect
-Intelligent lighting, colorful RGB
-Double layer 2oz PCB, balancing voltage drop, heat
 dissipation and flexibility.
-Chip longitudinal distribution, high reliability;
-Standard 5M/roll, length can be customized

Datasheet download.jpg

Share to

Facebook Twitter

Specification

Product Parameter

    PN
     S012896ZC4PZ
    Voltage
     DC24V
    Power
     16W/m
    SMD Type
     COB
    LED Quantity     896LEDs/m
    Cutting Length
     62.5mm
    View Color
     RGB+W:3000K / 4000K / 6500K
    Dimension
     5000*12mm
    Wavelength
     R:620-625 G:520-525 B:460-465nm
    Lumens/m
     R:100 G:190 B:30 W:280lm
    Material     FPC
    Q.T     -25 - 60℃

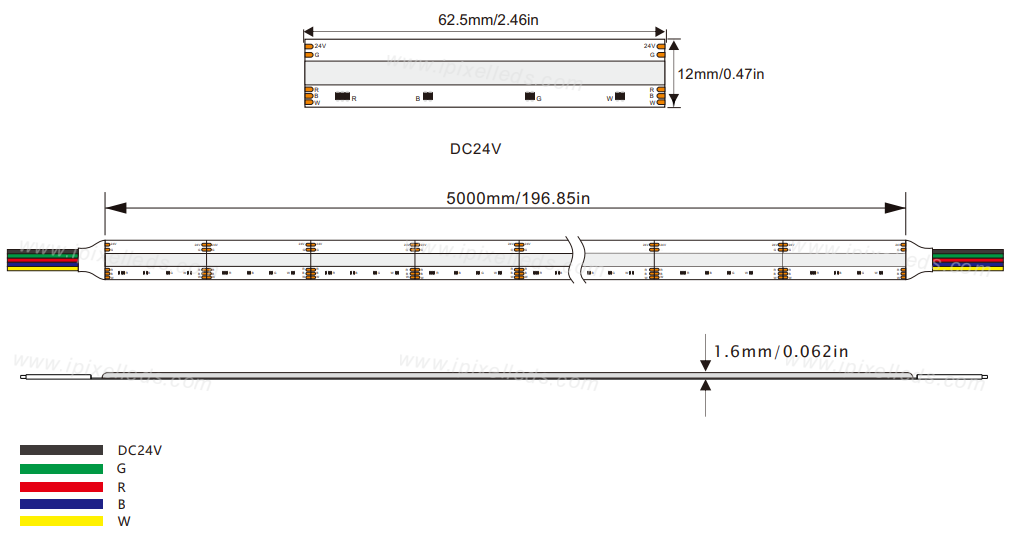

Dimension (unit:mm)
