S Shape (zigzag) Addressable RGB/RGBW LED strip 60LEDs/M DC5V
Description
Description
S shape(zigzag) addressable flex led strip
SMD5050 RGB/RGBW 60LEDs/m, 5m in a reel, and 3LEDs per section (Cut-able)
The IC is SK6812, with addressable individually control
The biggest advantage is the S shape, which can be bend at any Angle
Only available in IP20 non-waterproof version
Share to
Specification
Product Parameter
| PN | S008060CA3SA1(S) | S008060CA4SA1(S) |
| Voltage | DC5V | DC5V |
| Power | 12W/m | 13W/m |
| LED Type | SMD5050 RGB | SMD 5050 RGBW |
| LED Quantity | 60LEDs/m | 60LEDs/m |
| Cutting length | 50mm/3LED | 50mm/3LED |
| Dimension | 5000*8mm | 5000*8mm |
| Protocol | SPI - SK6812 | SPI - SK6812 |
| Pixel/M | 60 | 60 |
| Materiral | FPC | FPC |
| Luminance/m | R:60Lm G:180Lm B:40Lm | R:45Lm G:120Lm B:30Lm W:320Lm |
| O.T | -25℃ ~ 60℃ | -25℃ ~ 60℃ |

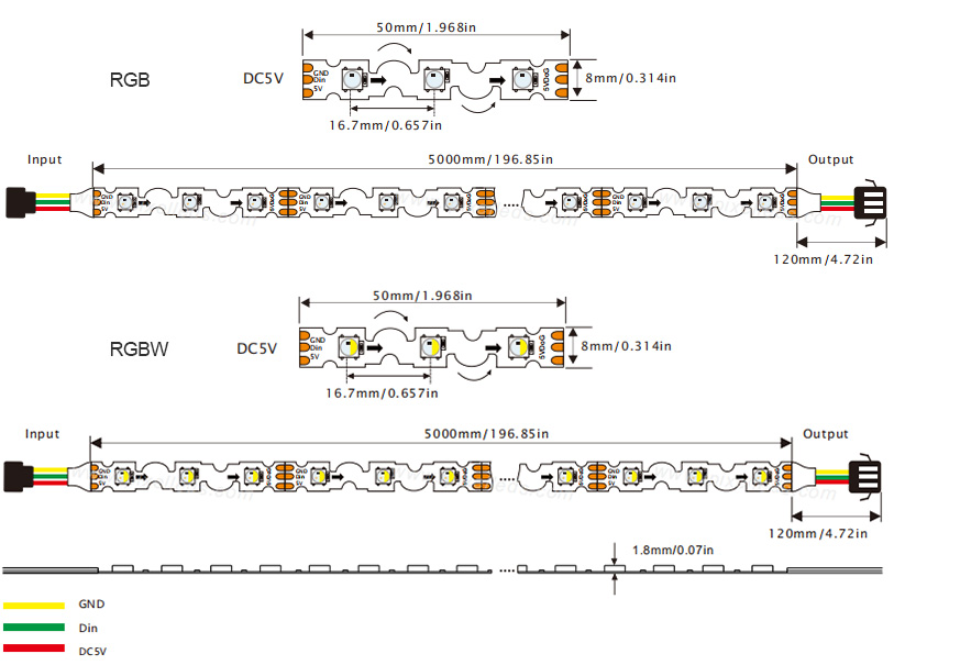

Dimension (unit:mm)
IP Rate
