Addressable SK6805 RGBW LED strip 60LEDs/M DC12V

Description

Description

This led strip with 60pcs high quality SMD5050 RGBW LED chips
Use SPI controller, 60Pixels/m, 1 LED per section
Input voltage is DC12V
Flexible PCB with white / black color
1+2 ounce copper FPC, 12mm width

Standard 5M/roll, length can be customized

Share to

Facebook Twitter

Specification

Product Parameter

PN
S012060CB4SA1
Voltage
DC12V
LED Type
SMD5050
LED Quantity
60LEDs/m
Color
RGBW:3000K/4000K/6500K
Dimension
5000*12mm
Cutting unit
16.67mm
Luminance/M
R:62 G:163 B:45 W:333lm
Power
21W/m
Pixel/M
60
ControlSPI/SK6805
O.T
-25℃ ~ 60℃

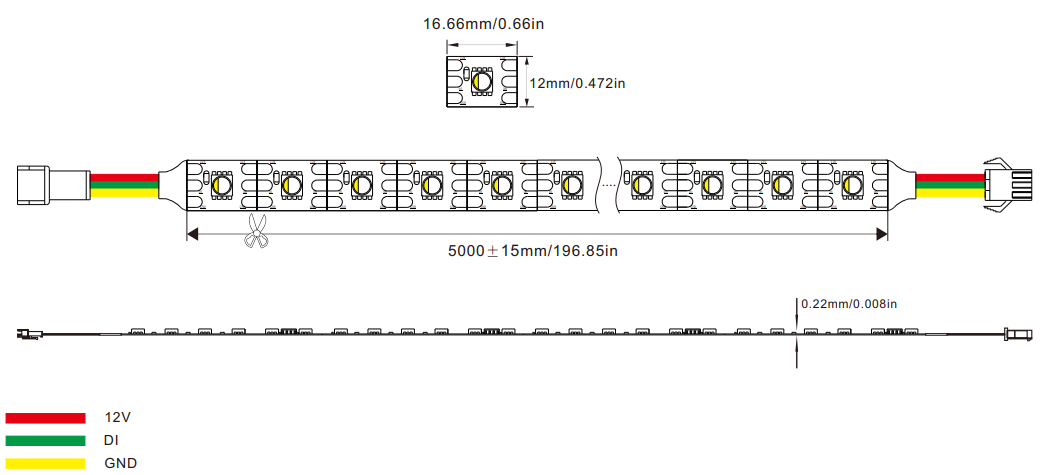

Dimension (unit:mm)


IP Rate
