WS2811 digital 2835 dual color LED strip 120LEDs/M DC24V
Description
Description
Use 2835 high brightness led,120LEDs/M, single row LED.
Input voltage DC24V,Use SPI controller
Flexible PCB, FPC color: white.
1+2 OZ copper thickness FPC, 12mm PCB width.
Standard length 5m per roll, the length also can be customized
Share to
Specification
Product Parameter
| PN | S012120BC2SF |
| Voltage | DC24V |
| LED Type | SMD 2835 |
| Color | 2700K+6500K |
| Pixel/M | 20 |
| LED Quantity | 120LEDs/m |
| Dimension | 5000*12mm |
| Cutting Length | 50mm |
| Lumens/m | CW:689 WW:587lm |
| Material | FPC |
| Power | 16.5W/m |
| Control | SPI/WS2811 |
| O.T | -25℃ ~ 60℃ |

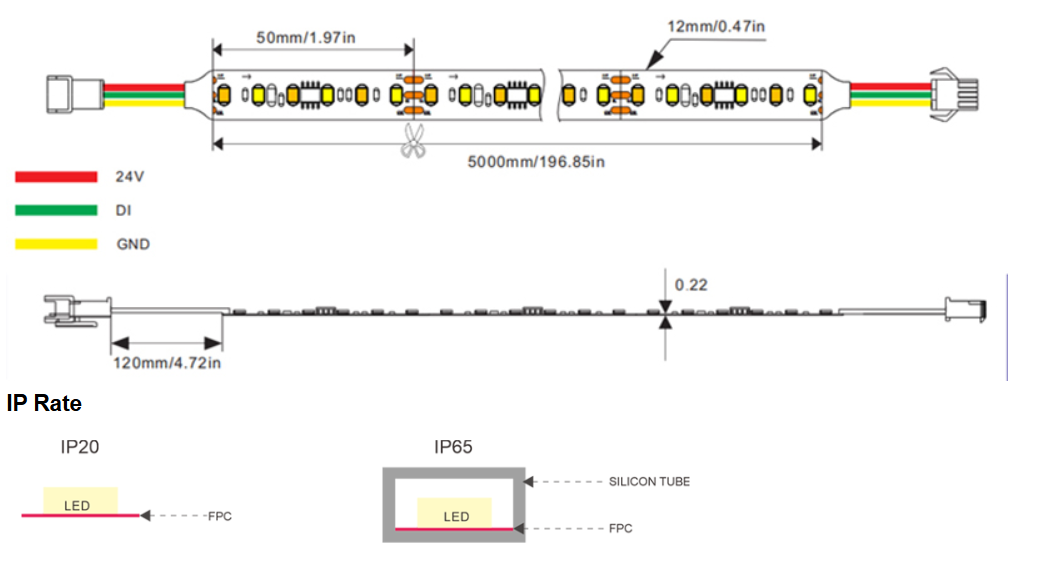

Dimension (unit:mm)
IP Rate
