Dual signal Addressable SK6813 30/60/144LEDs/m 5050 RGB led strip DC5V
Description
Description
SMD 5050 RGB LED, 30 or 60LEDs/M
SPI SK6813 dual signal IC, break-point resume, that means when one LED break, the rest LEDs can still work well
Input voltage DC5V
Using a soft board, FPC color: white/black
1+2 Oz copper thick FPC, 10mm board width
5m per roll, length customizable
Share to
Specification
Product Parameter
| PN | S010030CA3SA6 | S010060CA3SA6 | S012144CA3SA6 |
| Voltage | DC5V | DC5V | DC5V |
| LED Type | SMD5050RGB | SMD5050RGB | SMD5050RGB |
| LED Quantity | 30LEDs/m | 60LEDs/m | 144LEDs/m |
| Pixel | 30 | 60 | 144 |
| Dimension | 5000*10mm | 5000*10mm | 5000*12mm |
| Lumen/m | R:35 G:99 B:20lm | R:63 G:184 B:39lm | R:184 G:496 B:108lm |
| Cutting unit | 33.33mm | 16.66mm | 6.9mm |
| IP | IP20/IP64/IP65/IP67 | IP20/IP64/IP65/IP67 | IP20/IP64/IP65/IP67 |
| Power | 6 W/m | 12 W/m | 24 W/m |
| O.T | -25℃ ~ 60℃ | -25℃ ~ 60℃ | -25℃ ~ 60℃ |

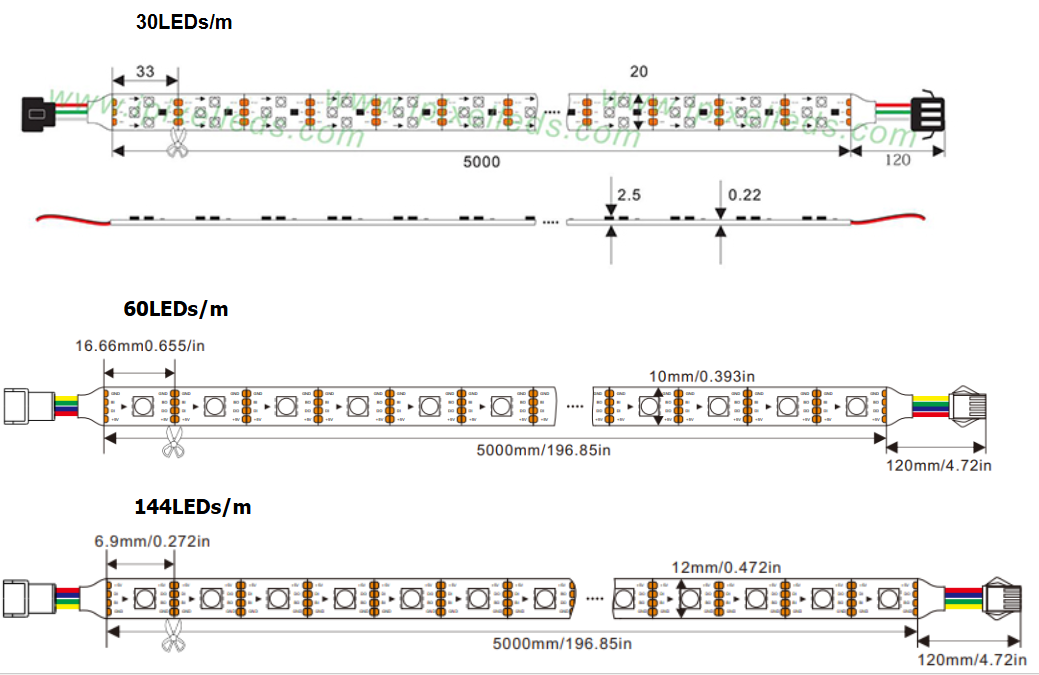

Dimension (unit:mm)
30LEDs/m
60LEDs/m
144LEDs/m
IP Rate
