SPI digital 4040 RGBW LED Strip 120LEDs/M DC24V
Description
Description
This led strip with 120pcs high quality SMD4040 RGBW LED chips
20Pixels per meter, SPI control, 6LEDs per section
DC24V constant voltage operation
Flexible PCB, FPC color: white.
1+2 ounce copper FPC, 12mm width
5 m per reel, length can be customized
Share to
Specification
Product Parameter
| PN | S012120TC4SC5 |
| Voltage | DC24V |
| LED Type | SMD4040RGBW |
| LED Quantity | 120LEDs/m |
| CCT | RGBW |
| Dimension | 5000*12mm |
| Cutting unit | 50mm |
| PCB Color | White |
| Power | 30W/m |
| Protocol | SPI/WS2814 |
| O.T | -25℃ ~ 60℃ |

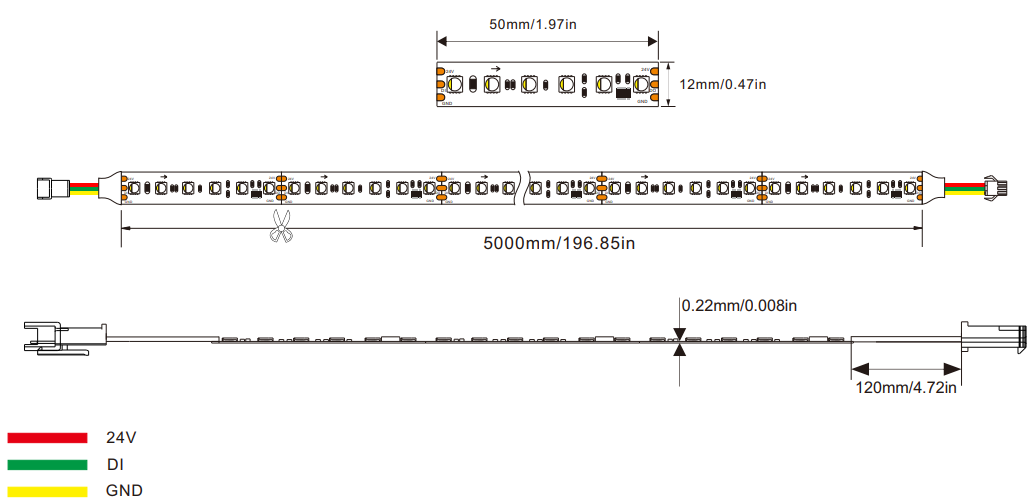

Dimension (unit:mm)
IP Rate
