SPI RGB Digital LED Strip 5mm Wide 120LEDs/m DC24V
Description
Description
This flex led strip uses SMD2835 RGB LED chip,
120leds/m, single row led chip
20Pixels per meter, SPI control
DC24V constant voltage operation
Flex PCB with white color or black color
1+2 ounce copper FPC, 5mm width
120leds/m, single row led chip
20Pixels per meter, SPI control
DC24V constant voltage operation
Flex PCB with white color or black color
1+2 ounce copper FPC, 5mm width
5 m per reel, length can be customized
Share to
Specification
Product Parameter
| PN | S005120BC3SC |
| Voltage | DC24V |
| LED Type | SMD2835 |
| LED Quantity | 120LEDs/m |
| Color | RGB |
| Dimension | 5000*5mm |
| Cutting unit | 50mm |
| Luminance/M | Ｒ:157 Ｇ:415 Ｂ:94lm |
| Power | 24W/m Max |
| Pixel/M | 20 |
| Control | SPI-TM1903 |
| O.T | -25℃ ~ 60℃ |

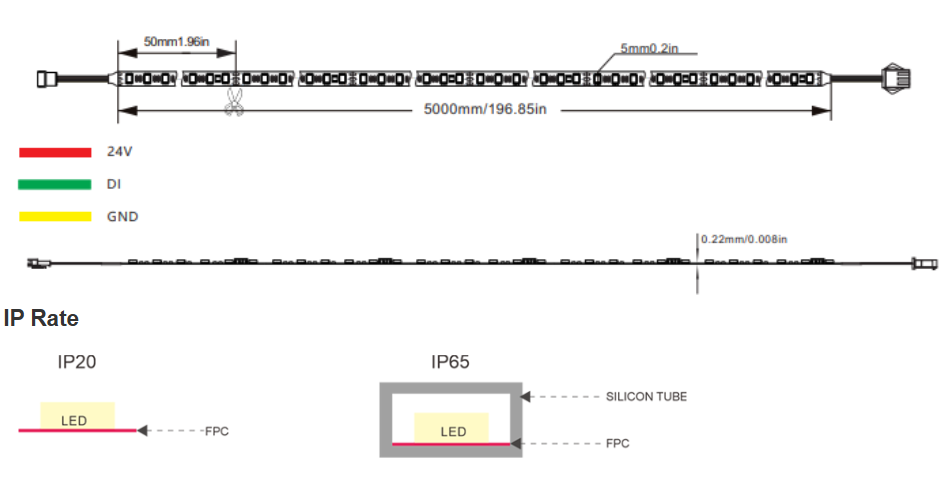

Dimension (unit:mm)
IP Rate
