SPI WS2811 RGB LED Strip 96LEDs/m DC24V
Description
Description
This led strip with 96pcs high quality SMD4040 RGB
LED chips
Use SPI controller, 16Pixels/m, 6LEDs per section
Input voltage is DC24V
Flexible PCB with white color
1+2 ounce copper FPC, 10mm width
Standard 5M/roll, length can be customized
Share to
Specification
Product Parameter
| PN | S010096TC3SF |
| Voltage | DC24V |
| LED Type | SMD 4040 |
| LED Quantity | 96LEDs/m |
| Color | RGB |
| Dimension | 5000*10mm |
| Cutting unit | 62.5mm |
| Luminance/M | R:885 G:2085 B:475lm |
| Power | 17.5W/m |
| Protocol | SPI/WS2811 |
| O.T | -25℃ ~ 60℃ |

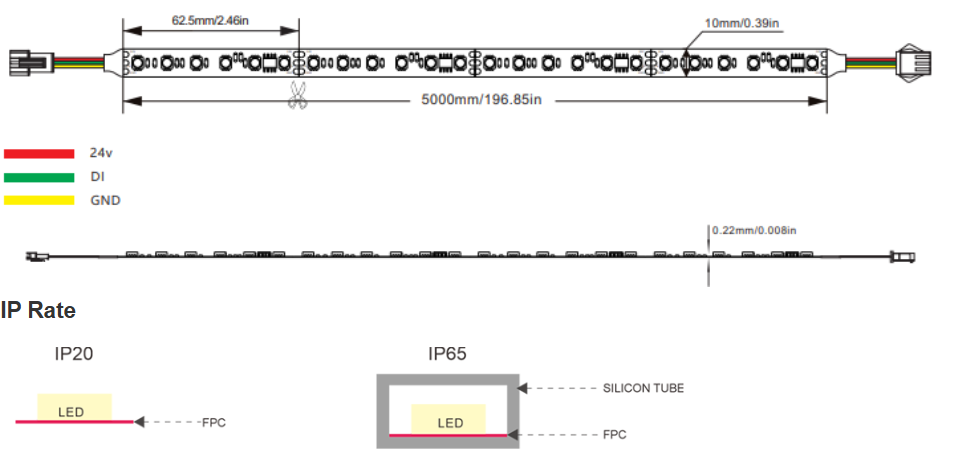

Dimension (unit:mm)
IP Rate
