As the regular Digital RGB flex cannot play pure white color we developed this RGBW pixel flexible strip,
It comes 5 m in a reel , 6 LED per pixel per section with a cutting mark per 100mm,
Waterproof made by silicone tube housing , W14*H4mm,
White chip has warm white and pure white , customized CCT available,
PCB board only has black color available,
DC24V constant voltage operation ,it request to feed the power from each end of 5meters as the Voltage
drop from the reel
![]()
| PN | S012060CC4ST |
| Voltage | DC24V |
| LED Type | RGB+W2800-3200K/4000-4500K/6000-6500K/9000-13000K |
| LED Quantity | 60LEDs/m |
| Dimension | 5000*12mm |
| IC | UCS2904 |
| Lumens | R:159lmG:B:38lmW/WW:558lm |
| Power | 19.2W/m(avg) |
| O.T | -25℃ ~ 60℃ |

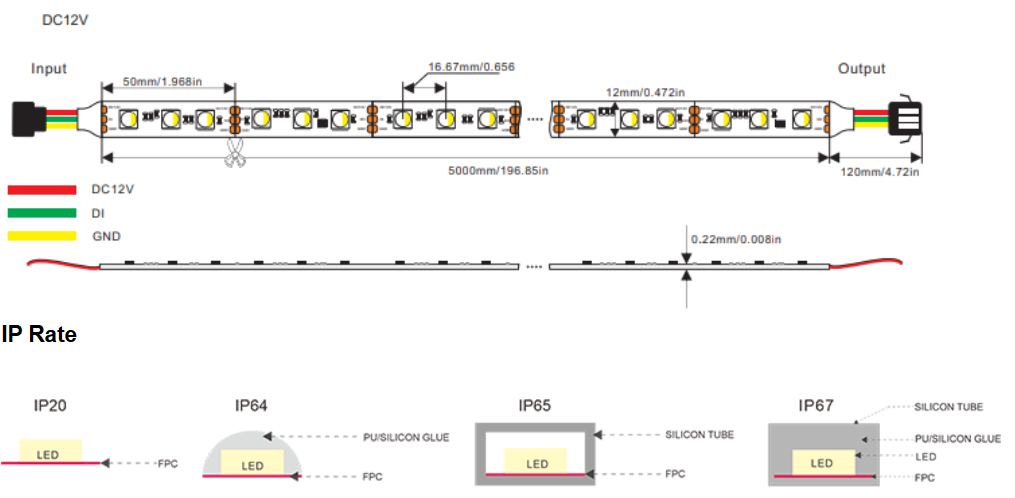

Dimension (unit:mm)
IP Rate
![]()
