SPI RGBW Digital LED Strip 60LEDs/m DC12V
Description
Description
RGBW Digital led strip has 60LEDs per meter
1+1 Ounce copper FPC, 5m per reel, 3M tape is included
White PCB, DC12V; Black PCB, DC24V
Cut-able every 50mm/12V, 100mm/24V
JST SM connector on each side, DC12 /24V constant voltage operation
The CCT of white can be customized as warm white or cool white
Silicon coating, silicon tube housing waterproof
Share to
Specification
Product Parameter
| PN | S012060CB4ST |
| Voltage | DC12V |
| LED Type | SMD5050 4 in1 RGBW |
| LED Quantity | 60LEDs/m |
| CCT | RGB+W2800-3200K/4000-4500K/6000-6500K/9000-13000K |
| Dimension | 5000*12mm |
| Pixel/m | 20PCS |
| PCB Color | White |
| Power | 19.2W/m |
| Protocol | SPI-UCS2904 |
| O.T | -25℃ ~ 60℃ |

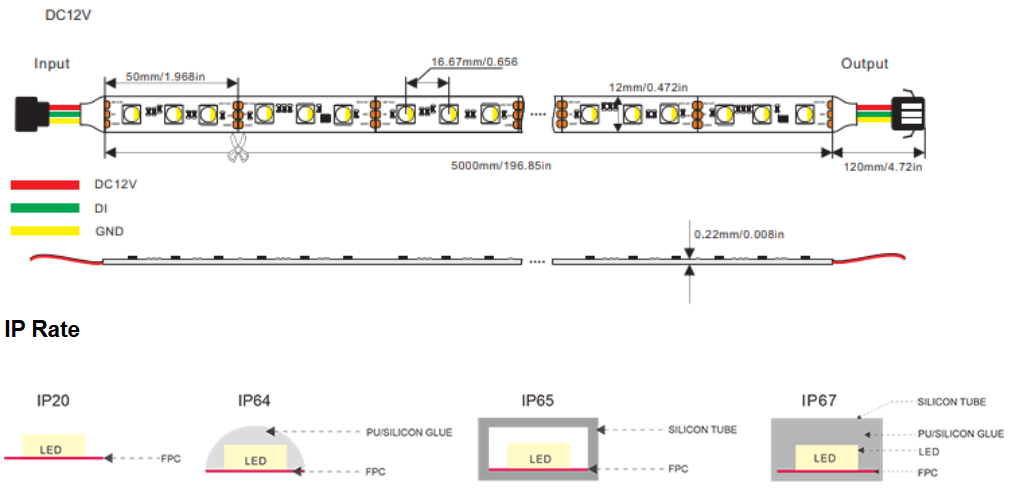

Dimension (unit:mm)
IP Rate
