SPI WS2811 digital LED Strip 60LEDs/m DC12V/24V
Description
Description
This digital led strip has 60 pcs 5050 RGB LED Chip per meter
20Pixels per meter, SPI control, 3LEDs per section
Can be cut every 50mm, white & black PCB board are available
1+1 Ounce copper FPC, 5 m per reel, 3M tape is included
JST SM connector on each side, DC12Vconstant voltage operation
Silicon coating, silicon tube housing, silicone injection waterproof
Share to
Specification
Product Parameter
| PN | S010060CB3SF | S010060CC3SF |
| Voltage | DC12V | DC24V |
| LED Type | 5050RGB | 5050RGB |
| LED Quantity | 60LEDs/m | 60LEDs/m |
| Dimension | 5000*10mm | 5000*10mm |
| Protocol | SPI - WS2811 | SPI - WS2811 |
| PCB Color | White/Black | White/Black |
| Power | 12W/m | 12W/m |
| Pixel/m | 20pcs | 10pcs |
| O.T | -25℃ ~ 60℃ | -25℃ ~ 60℃ |

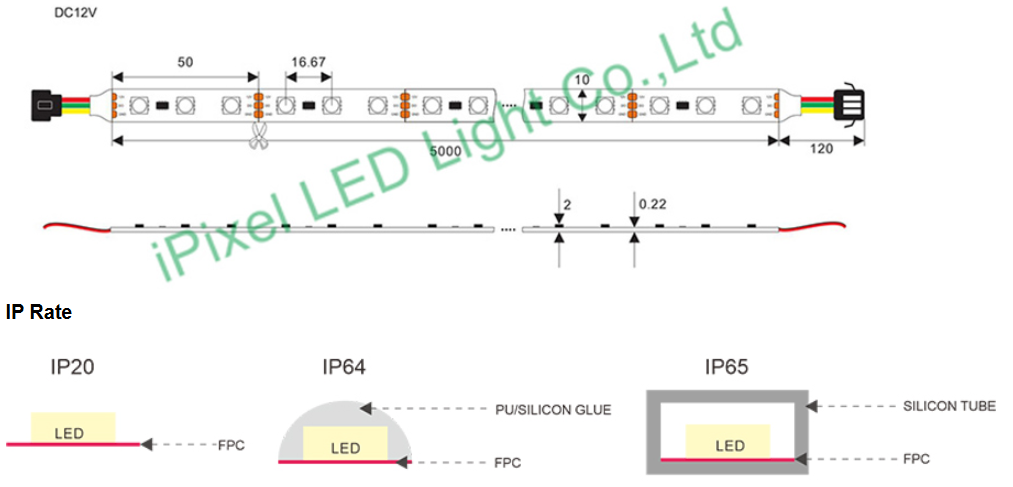

Dimension (unit:mm)
IP Rate
