Description

To solve the chip breakdown and Strip's Voltagedrop ,now we welcome RT1809.

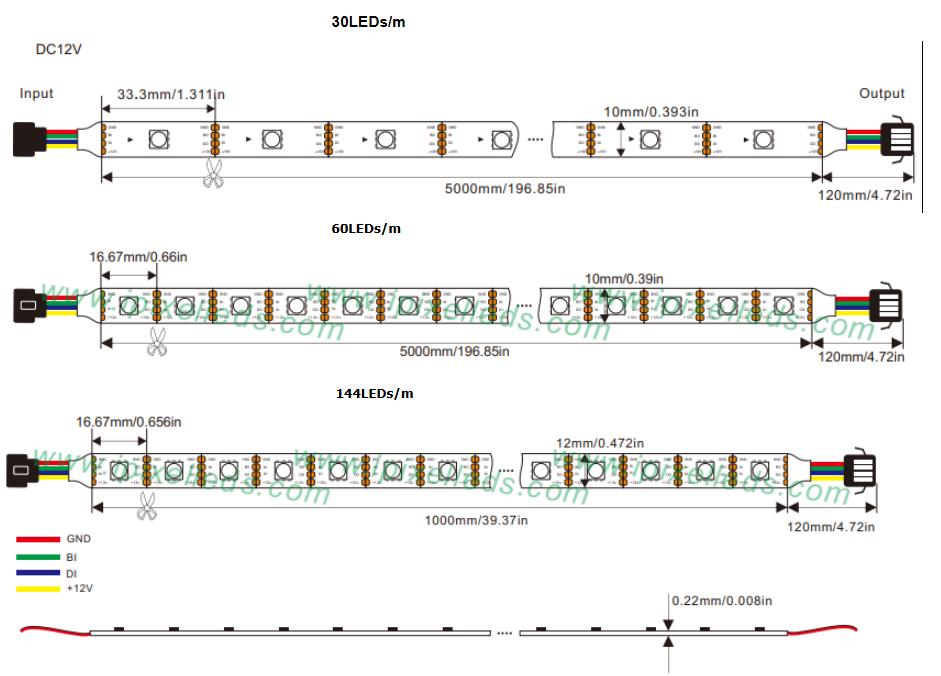

The Flex is 30/60/144 Pixel/LED per meter ,and 5 m in a roll we provide black and  white color board.

same as our other addressable tapes, it's cut-able per unit LED with a large soldering Pad which makes easy to re-solder again.

the PCB printed +12V DI ,BI, GND , both DI and BI means signal but it's only required to link the DI cable to your controller.

 this PCB made by 3Ounce copper for more reliable application.

3 M tape attached on backside of strip.

 again we suggested you power it every 5 meters even it's 12V addressable.
