COB RGBWW LED flexible strip 840LEDs/m DC24V
Description
Description
-High density, the light is even and soft
-High efficiency, remarkable energy saving effect
-Intelligent lighting, colorful RGBWW;
-Double layer 2oz PCB, balancing voltage drop, heat dissipation and flexibility.
-Chip longitudinal distribution, high reliability;
-Standard 5M/roll, length can be customized
Share to
Specification
Product Parameter
| PN | S012840ZC5PZ |
| Voltage | DC24V |
| Power | 16W/m |
| SMD Type | COB |
| LED Quantity | 840LEDs/m |
| Cutting Length | 41.6mm |
| View Color | RGBWW: 2700K+6500K |
| Dimension | 5000*12mm |
| Wavelength | R:615-630 G:520-535 B:450-460 nm |
| Lumens/m | R:102.4 G:301 B:47.7 WW:248.3 CW:262.5 Lm |
| Beam Angle | 180° |
| Dimension | 5000*12mm |
| Q.T | -25 - 60℃ |

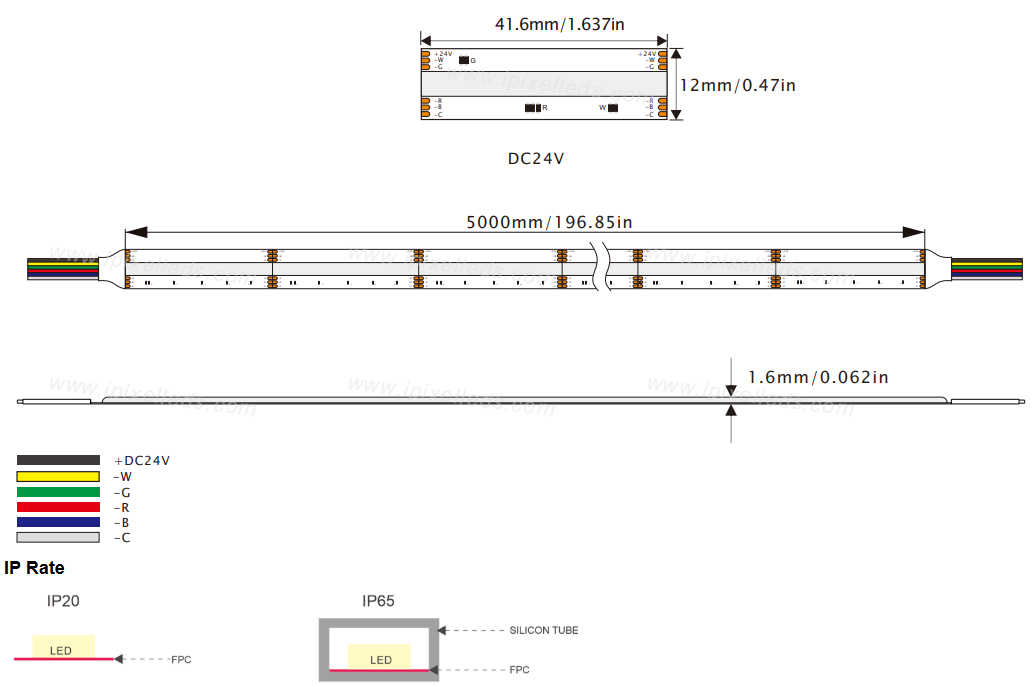

Dimension (unit:mm)
IP Rate
