SK6813 RGB Addressable LED strip 30/60/144LEDs/M DC5V
Description
Description
- Dual signal line transmission LED strip, Break-point
resume
- The strip will keep working if any LED becomes
damaged or physically removed
- White & Black PCB, DC5V voltage
- 5 Meters per reel, Customized sizes are also available
Share to
Specification
Product Parameter
| PN | S010030CA3SD7 | S010060CA3SD7 | S012144CA3SD7 |
| Voltage | DC5V | DC5V | DC5V |
| LED Type | SMD5050RGB | SMD5050RGB | SMD5050RGB |
| LED Quantity | 30LEDs/m | 60LEDs/m | 144LEDs/m |
| Protocol | SPI - SK6813 | SPI - SK6813 | SPI - SK6813 |
| Dimension | 5000*10mm | 5000*10mm | 1000*12mm |
| Pixel/m | 30PCS | 60PCS | 144PCS |
| PCB Color | White/Black | White/Black | White/Black |
| Power | 7.2W/m | 12W/m | 24W/m |
| O.T | -25℃ ~ 60℃ | -25℃ ~ 60℃ | -25℃ ~ 60℃ |

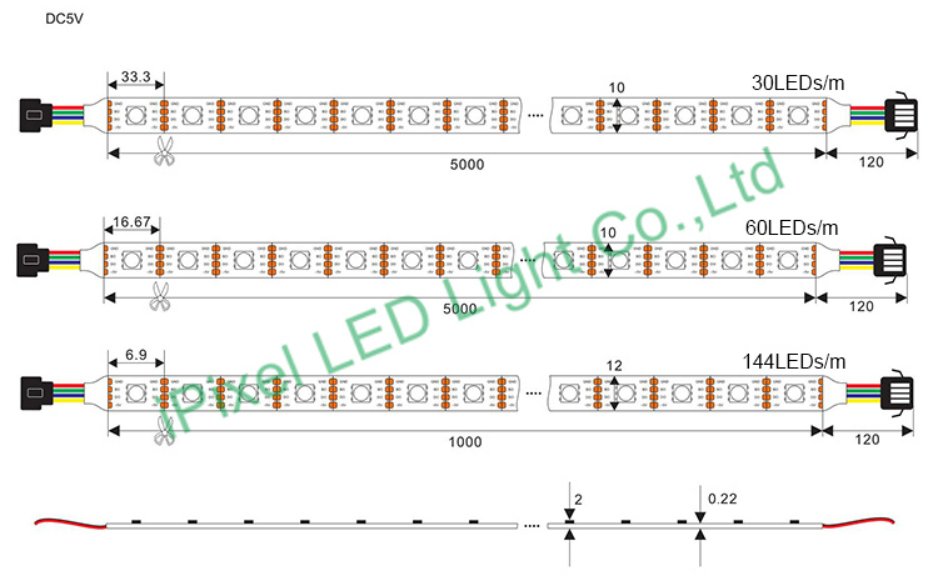

Dimension (unit:mm)
IP Rate
