Side emitting SK6812 RGB LED stripe 144LEDs/m DC12V
Description
Description
Side emitting addressable LED strip with SMD4020 RGB LED chips
144pixels/m, cut-able every 6.94mm
The PCB is 3 Ounce copper, 8mm width
PCB Color: White only, DC12V voltage, SPI signal protocol 1 Meter per reel,
customized sizes are also available 3Pin JST SM connector
Share to
Specification
Product Parameter
| PN | S008144IB3SA1 |
| Voltage | DC12V |
| Power | 16W/m |
| LED Type | SMD 4020 |
| LED Quantity | 144LEDs/m |
| Cutting length | 6.94mm / 1LED |
| Protocol | SPI - SK6812 |
| Dimension | 1000*8mm |
| Pixel/m | 144 |
| Luminance/m | R:95 G:313 B:77 lm |
| Beam Angle | 120° |
| IP Rating | IP20/IP65 |
| O.T | -25℃ ~ 60℃ |

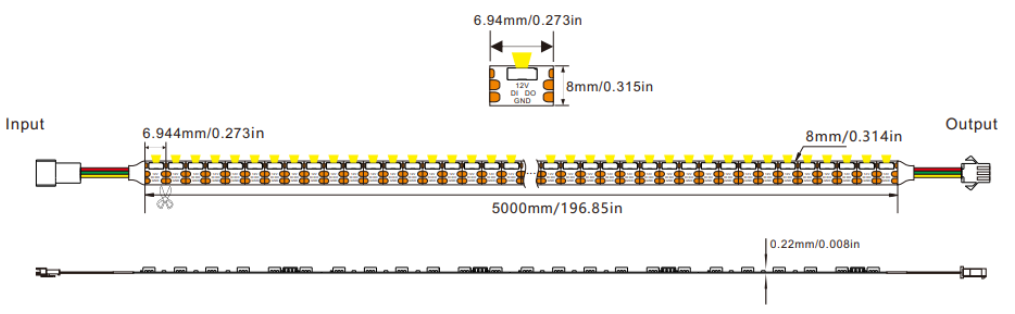

Dimension (unit:mm/in)
