SK9822 RGB Addressable LED strip 30/60/144LEDs/M DC5V
Description
Description
Control IC included, supporting numerous Color-change effects,
Pcontrol by SD controller, Arduino, DMX512, Artnet,
Flexible PCB 5V low voltage input,
PCB Color: White & Black available for choose,
Absolutely addressable ,each IC built inside RGB LED,
5M per roll,Customer’s size available also,
The non-waterproof version strip attached white color 3M tape on back side of PCB
Control IC included, supporting numerous Color-change effects,
Pcontrol by SD controller, Arduino, DMX512, Artnet,
Flexible PCB 5V low voltage input,
PCB Color: White & Black available for choose,
Absolutely addressable ,each IC built inside RGB LED,
5M per roll,Customer’s size available also,
The non-waterproof version strip attached white color 3M tape on back side of PCB
Each LED cut-able.
Share to
Specification
Product Parameter
| PN | S012060CA3SA2 | S012144CA3SA2 |
| Voltage | DC5V | DC5V |
| LED Type | SMD 5050 RGB | SMD 5050 RGB |
| LED Quantity | 60LEDs/m | 144LEDs/m |
| Protocol | SPI - SK9822 | SPI - SK9822 |
| Dimension | 5000*10mm | 1000*12mm |
| Pixel/m | 60PCS | 144PCS |
| PCB Color | White/Black | White/Black |
| Power | 15.5W/m | 34W/m |
| O.T | -25℃ ~ 60℃ | -25℃ ~ 60℃ |

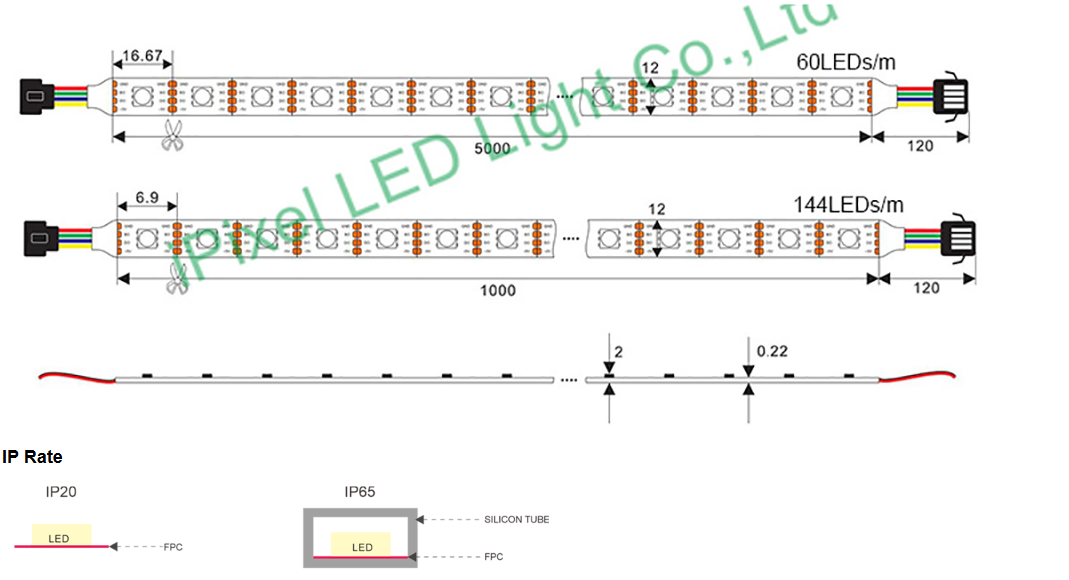

Dimension (unit:mm)
IP Rate
