SK6812 RGB Addressable LED strip 30/60/144LEDs/M DC5V

Description

30/60/144 individually-controllable LED pixels on a flexible PCB,

It's completely out of control and ready for you to blink,

And an extra heavy flex PCB in white & Black version,
The digitally-addressable type of LED strip. You can set the color of each LED's red, green and blue component

with 8-bit PWM precision (so 24-bit color per pixel),

Regarding it's flexible PCB material, you can cut this stuff pretty easily with wire cutters, there are cut-lines every

LED. Solder to the 0.1" copper pads,

You can also connect strips together to make them longer, just watch how much current you need.

Datasheet download-3.jpg  Datasheet download-3.jpg  Datasheet download-3.jpg

Share to

Facebook Twitter

Specification

Product Parameter

   PN
    S010030CA3SA1
    S010060CA3SA1
    S012144CA3SA1
   Voltage
    DC5V
    DC5V
    DC5V
   LED Type
    SMD 5050 RGB
    SMD 5050 RGB
    SMD 5050 RGB
   LED Quantity    30LEDs/m
    60LEDs/m
    144LEDs/m
   Protocol
    SPI - SK6812
    SPI - SK6812
    SPI - SK6812
   Dimension
    5000*10mm
    5000*10mm
    1000*12mm
   Pixel/m
    30PCS
    60PCS
    144PCS
   PCB Color    White/Black    White/Black
    White/Black
   Power
    6W/m
    12W/m
    24W/m
   O.T    -25℃ ~ 60℃    -25℃ ~ 60℃
    -25℃ ~ 60℃

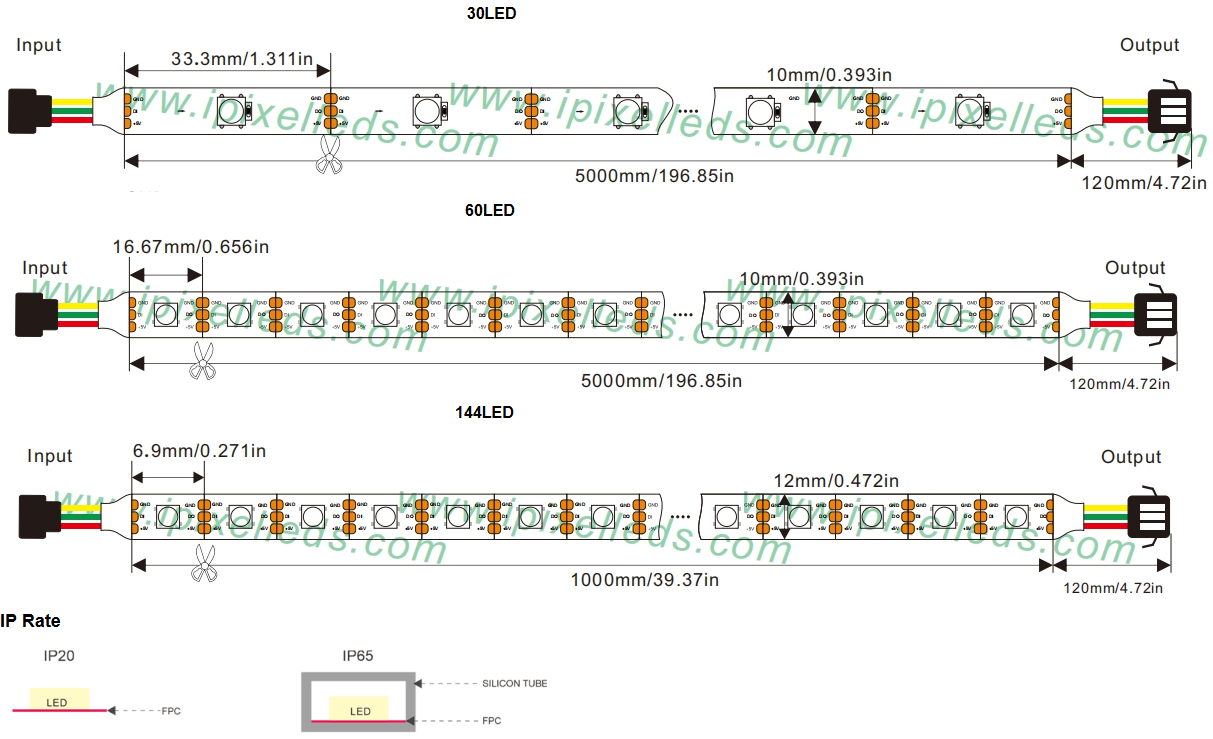

Dimension (unit:mm)
