DMX512 5050 RGBW flex led strip 120LEDs/m DC24V
Description
Description
5050 LED chip, 120LEDs/m, double row
DMX IC chip and controlled by DMX controller
Input voltage is DC24V
Flexible PCB, FPC color is white
PCB with 1+2 Oz copper, 20mm width
5050 LED chip, 120LEDs/m, double row
DMX IC chip and controlled by DMX controller
Input voltage is DC24V
Flexible PCB, FPC color is white
PCB with 1+2 Oz copper, 20mm width
Standard 5m/roll, length can be customized
Share to
Specification
Product Parameter
| PN | S020120CC4DC0 |
| Voltage | DC24V |
| LED Type | SMD5050 |
| LED Quantity | 120LEDs/m |
| Color | RGBW |
| Dimension | 5000*20mm |
| Cutting unit | 100mm |
| Luminance/M | R:90 G:291 B:76 W:413lm |
| Power | 19.2W/m |
| Protocol/Pixel/M | DMX/TM512AC/10Pixel |
| O.T | -25℃ ~ 60℃ |

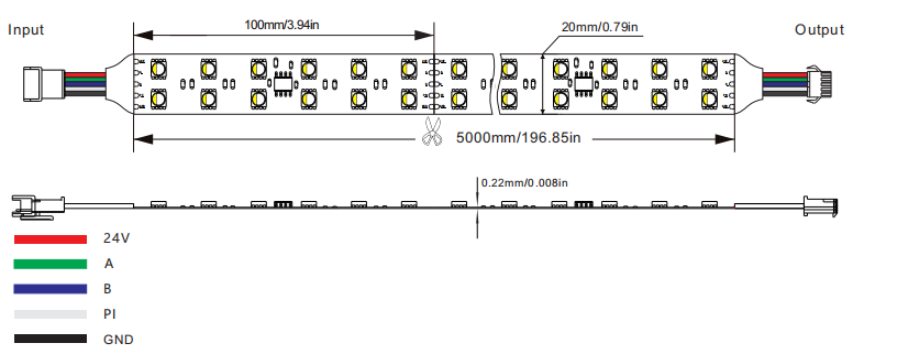

Dimension (unit:mm)
IP Rate
Set DMX address Video:
