20×10mm Digital RGBW Flexible LED Wall Washer (TM1824/SPI, DC24V, TPU, IP67)

A 20×10mm single-sided digital RGBW flexible LED wall washer running on DC24V. With TM1824/SPI signal control, it creates dynamic effects such as chasing, flowing and gradients. Built with high-transmittance, eco-friendly TPU for excellent flexibility, and IP67 protection for indoor/outdoor use. Designed for reliable linear wall-wash and outline lighting with salt, corrosion, flame and UV resistance features.

POWER

12W/roll (datasheet); approx. 2.4W/m (estimated based on 4.97m/roll)

LUMINOUS EFFICACY

Approx. 22 lm/W (estimated from “Flux out ≈ 265.8 lm” and 12W/roll; varies by color/program—final by test)

BRIGHTNESS

Reference luminous flux: Flux out ≈ 265.8 lm; channel flux: R ≈ 69 lm / G ≈ 195 lm / B ≈ 40 lm / W ≈ 184 lm (datasheet)

WEBSITE

10 mm (cross-section 20×10 mm)

Description

  • Type: 20×10mm digital RGBW flexible wall washer, single-sided output, bendable up & down

  • Electrical: DC24V; 42 LEDs/roll; 6 IC/roll; 12W/roll

  • LED Source & Color: SMD 4040 RGBW; white CCT options 3000K/4000K/6500K (subject to order confirmation)

  • Control: TM1824 / SPI digital control for chasing, flowing, jumping, gradient animations, etc.

  • Protection & Reliability: IP67; high-transmittance TPU; salt tolerance, corrosion resistance, flame retardant, UV resistance; working temp -25~60℃

  • Optics: Asymmetric distribution (approx. 30°±5° / 45°±5°, per datasheet/curve), suitable for wall-wash & edge outlining

  • Dimensions & Length: 20×10mm cross-section; customizable length (diagram shows min ~180mm, max ~4970mm with tolerance)

  • Mounting Options: aluminum profile + clips/end caps/covers/connectors available for fast installation

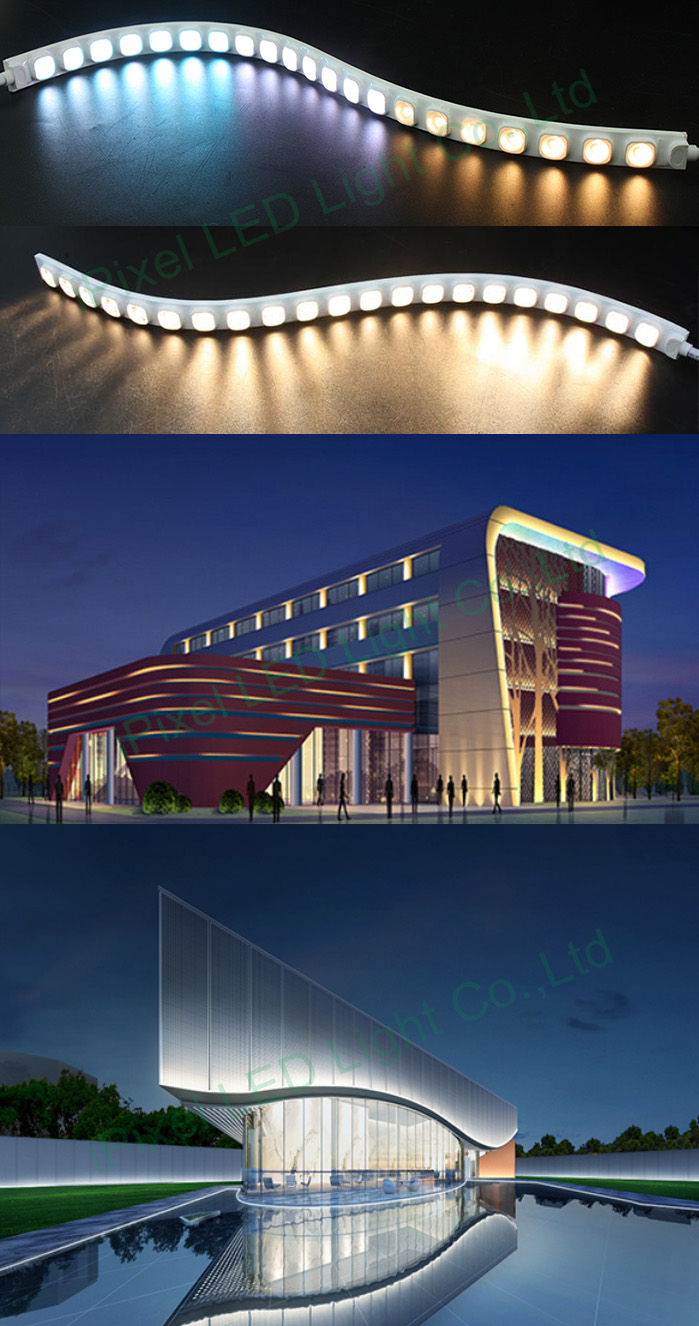

  • Applications: architectural facade outline, signage lines, landscape accents, indoor wall washing, stage/exhibition decoration

  • Compliance Note: RoHS/EMC/REACH documents can be provided based on actual shipping configuration and certifications
