Φ50mm DMX512 RGB Pixel LED Tube | 360° No-Shadow Milky Diffuser

Φ50mm DMX512 RGB Pixel LED Tube (Milky White, No Shadow)

This Φ50mm DMX pixel LED tube uses a milky white PC diffuser to deliver smooth 360° light output—eliminating the typical hotspots/shadows found in transparent tubes. With DMX512 or SPI control options, it is ideal for stage entertainment, TV show set decoration, clubs, KTV, and ambient background lighting. Vertical or horizontal hanging is supported, and custom lengths are available.

POWER

12W/pc (0.5m, L517 × Φ50) 20W/pc (1m, L1003 × Φ50)

LUMINOUS EFFICACY

Approx. 10–13 lm/W (estimated from LM/pc and wattage; mixed white output depends on programming/settings)

BRIGHTNESS

0.5m (12W): R 40 / G 126 / B 13 1m (20W): R 80 / G 252 / B 26

WEBSITE

Φ50mm (outer diameter)

Description

Designed for Entertainment Lighting

IP20 design for stage lighting, TV show decoration, and indoor creative installations.

Clean camera-friendly light appearance with a no-shadow 360° diffusion effect.

Key Benefits

Milky white diffuser tube: reduces hotspots and shadowing for premium visual performance.

360° viewing angle: perfect for hanging arrays, pixel animations, background walls, and decorative trees.

Flexible control: DMX512 or SPI control for easy integration with lighting controllers.

Easy installation: vertical/horizontal hanging; standard version includes connectors and a hook (top-output wiring).

Robust construction: anodized aluminum top & end caps for durability and finishing quality.

Standard Specifications (Customization Available)

Model: B050072CB3DS (0.5m) / B050144CB3DS (1m)

Size: L517 × Φ50 (0.5m) / L1003 × Φ50 (1m)

LED: SMD 5050 RGB

Pixel Qty: 12 pixels (36ch) / 24 pixels (72ch)

Voltage: DC12V (datasheet indicates other versions for longer runs)

Power: 12W/pc (0.5m) / 20W/pc (1m)

LM/pc: R/G/B as listed above

Operating Temp.: -40 to 50°C

IP Rating: IP20

Applications

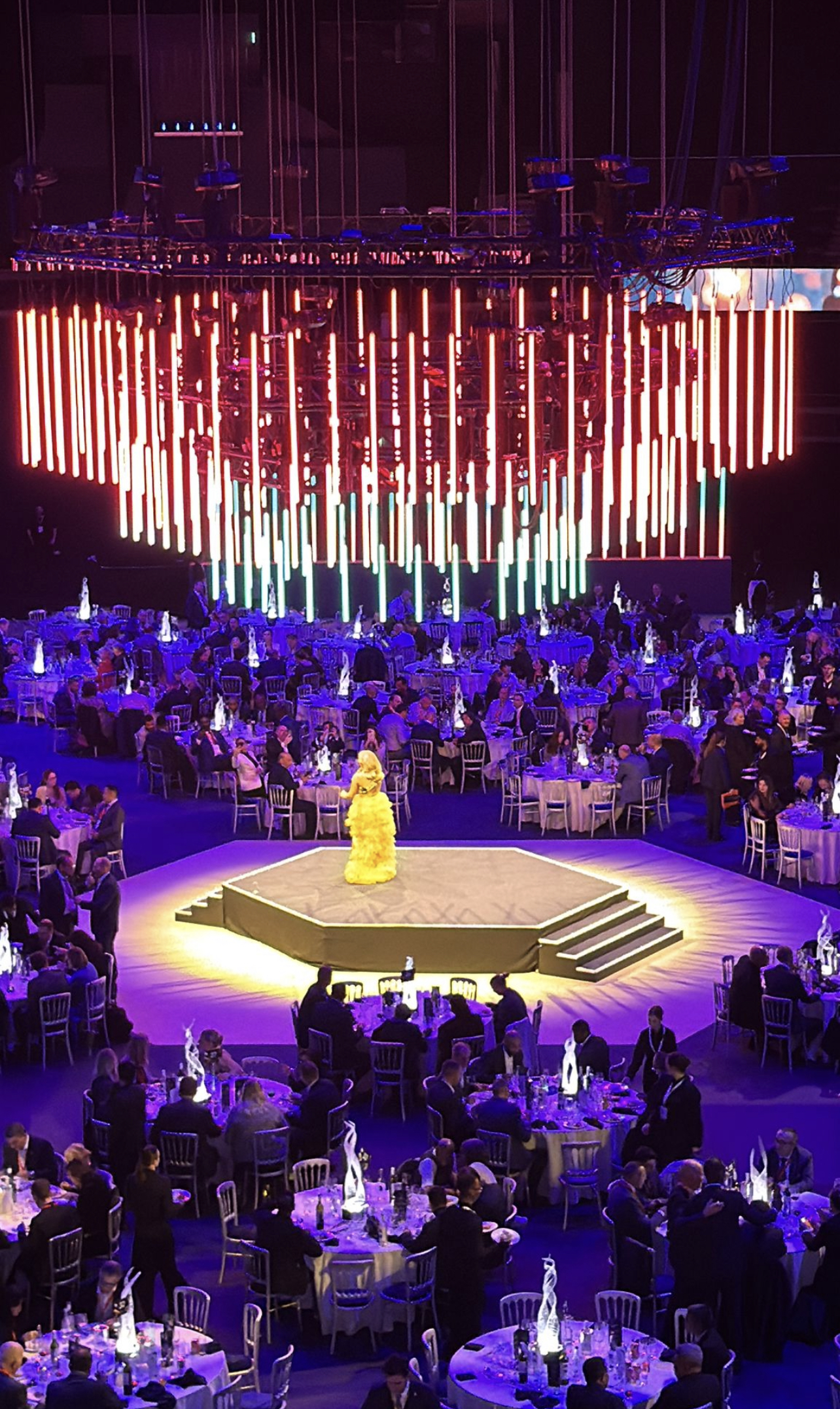

Amusement parks, night clubs, background lighting, stage, disco club, dance floor, decorative trees, and KTV (ideal for pixel effects and dynamic scenes)
