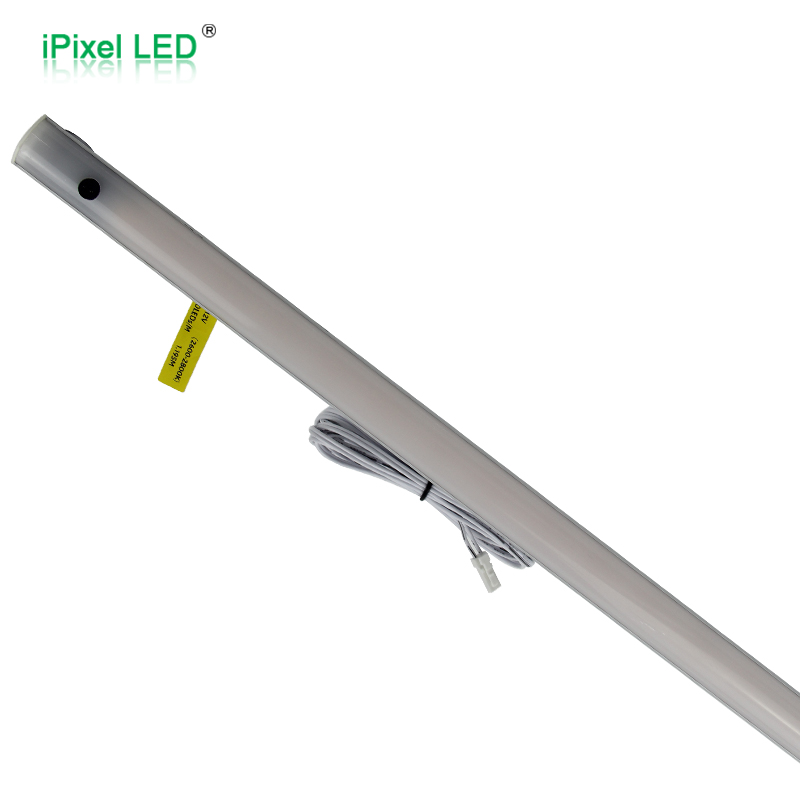

B016320ZB1LZ | 12V COB LED Rigid Bar Light | Hand-Sweep Sensor | 16×16mm Aluminum Profile
B016320ZB1LZ is a DC12V COB aluminum LED rigid bar with a built-in hand-sweep sensor for touchless switching. It also supports brightness adjustment by blocking the sensor area. Thanks to COB continuous emitting surface, the light is soft, uniform and nearly dot-free—ideal for premium cabinet and furniture lighting. CCT options include 3000K/4000K/6500K, and the length can be customized.
Description
Touchless hand-sweep control: Swipe to turn ON/OFF—more hygienic and convenient for daily use.
Dimming by hand blocking (0–10cm): Easy brightness adjustment without extra switches or remotes.

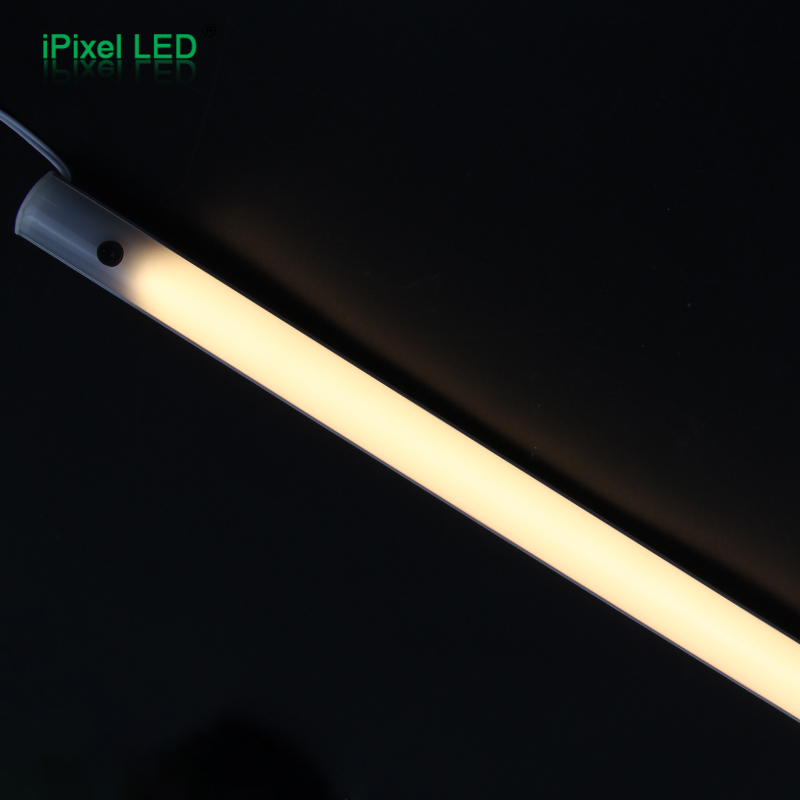

COB dot-free uniform lighting: Smooth, soft light output with excellent visual comfort.
Aluminum profile construction: Reliable heat dissipation and stable performance.
Key specs: DC12V; 320 LEDs/m; 8W/m; 120° beam angle; Ra≥80; IP40; operating temp -25~60°C; standard size 1000×16×16mm.
CCT options: 3000K / 4000K / 6500K.
Applications: Kitchen cabinets, wardrobes/closets, display cabinets, shelves, furniture and vanity lighting.
Power & wiring: Works with constant-voltage power supply (AC100–240V to DC12V). Multiple bars can be connected in parallel. Custom cable/connector and length are available for projects.
