Bed Frame & Bedroom Furniture LED Lighting
- Headboard recessed cove (low‑glare reading ambience)
- Toe‑kick / footboard strip for night guidance
- Drawer / storage illumination with door‑trigger
- Wall niche or perimeter glow behind the bed
Description
Bed Frame & Bedroom Furniture LED Lighting
Soft, low-glare ambience with safe low voltage. Ideal for headboard recess, toe-kick, side rails, drawers and storage compartments.

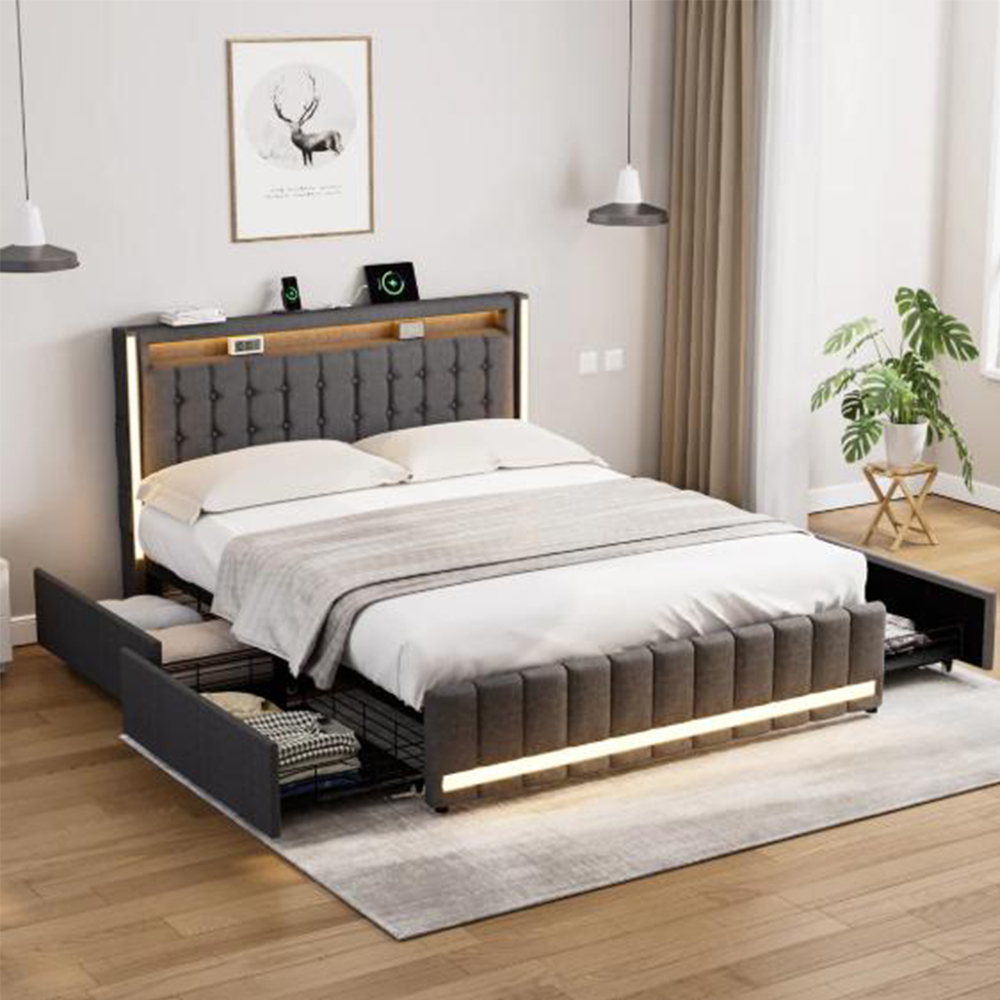

Typical Lighting Positions
- Headboard recessed cove (low-glare reading ambience)
- Toe-kick / footboard strip for night guidance
- Drawer / storage illumination with door-trigger
- Wall niche or perimeter glow behind the bed
Quick Quantity Estimator
Total meters = sum of (position length × quantity)
- Queen: headboard recess ≈1.8 m; front rail ≈1.6 m; two sides ≈2.0 m each → ≈5.4–6.0 m/bed
- King: add ≈0.4–0.8 m on top
Driver rating = (W/m × total meters) × 1.25. Prefer 12V for short runs; 24V for longer or multi-branch layouts.
Interactive Quantity Estimator
Driver sizing ≈ (W/m × total meters) × 1.25 headroom. Use 24V for longer runs/multi-branch wiring.
Recommended Products (Unified Spec Fields)
| Voltage | W/m | lm/m | CRI | CCT | Cutting | Width | IP | Notes | Datasheet | RFQ |
|---|---|---|---|---|---|---|---|---|---|---|

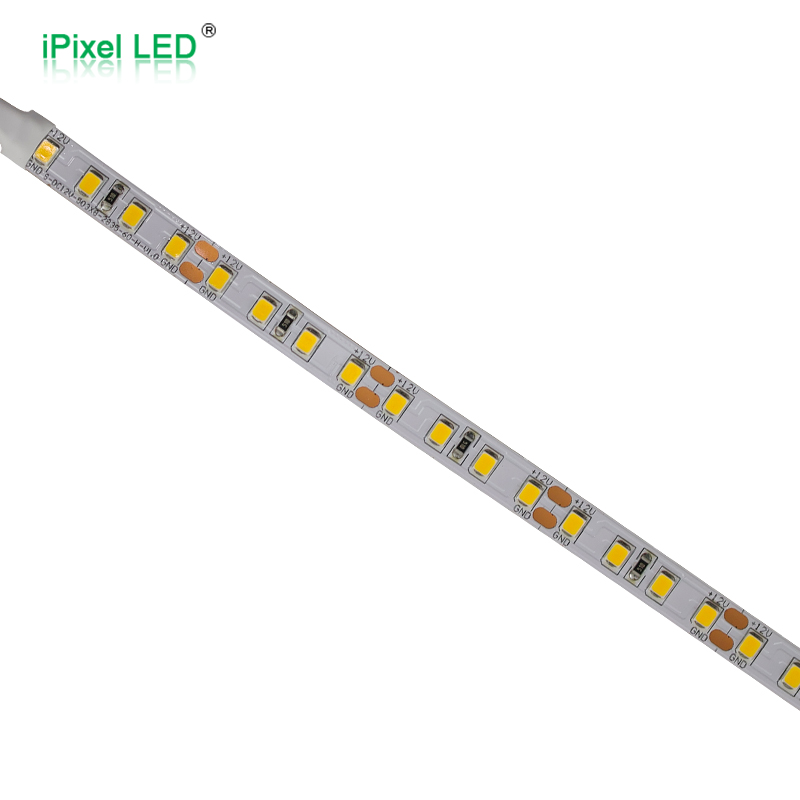

| 12V | 9.6 | ~900 | ≥90 | 3000K / 4000K | 25 mm | 8 mm | IP20 | Great for short sections; smooth dimming | Test Report | RFQ |
| 24V | 10 | ~1000 | ≥90 | 2700K / 3000K | 50 mm | 8 / 10 mm | IP20 | Lower voltage drop for longer runs | Datasheet | RFQ |
| 24V | 12 | ~1100 | ≥95 | 2700–6500K (tunable white) | 50 mm | 10 mm | IP20 / IP54 | Tunable ambience: warm for bedtime, cool for tasks | Datasheet | RFQ |
Reference BOM (Per Bed)
BOM-A (Base ambience)
- LED strip: 12V/9.6W/m × 4–6 m
- Driver: 12V / 60 W (headroom for dimming)
- Profile: U-channel aluminum + opal diffuser (glare control)
- Control: touch/rocker dimmer or foot-kick sensor
BOM-B (Tunable white)
- LED strip: 24V CCT tunable 12W/m × 5–7 m
- Driver: 24V / 100 W + CCT controller (remote/BLE)
- Others: same as above
Report & downloads: S008120BB1LZ 4000K 1 m Spectrum Test Report (PDF)
Environment & Safety
- Indoor IP20/54. Keep wiring thermally isolated from upholstery/wood; avoid direct glare.
- ≥10 W/m recommend aluminum profile; follow datasheet Tc.
- Use cable sleeves and drag chains for moving parts (drawers/lids).
Compliance / Certifications
Coverage depends on actual certified models/materials. Contact us for certificate lists by model.
Gallery
FAQ
How many meters per bed?
Queen typically 5.4–6.0 m; King add 0.4–0.8 m. Adjust for headboard, side rails and drawer count.
12V or 24V?
Choose 12V for short segments and compact drivers; use 24V for longer runs or multi-branch wiring to reduce voltage drop.
Can I use a door magnet or PIR?
Yes. NC/NO door switches and PIR/microwave modules are available for low-voltage plug-and-play.
What IP rating do I need?
Indoor furniture typically IP20. Consider IP54 only for special cleaning or moisture exposure, and ensure proper thermal design.
