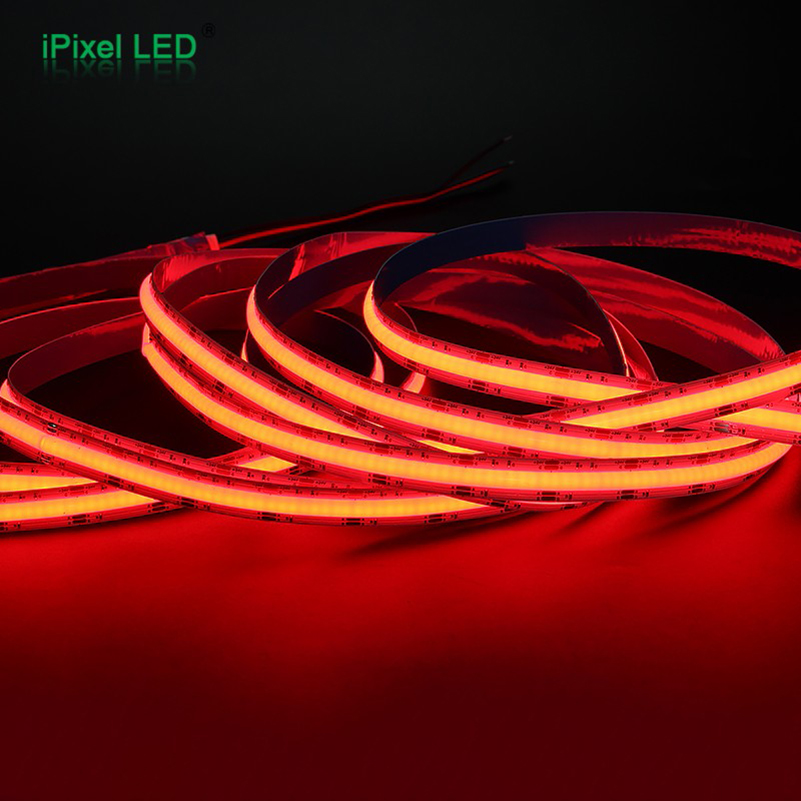

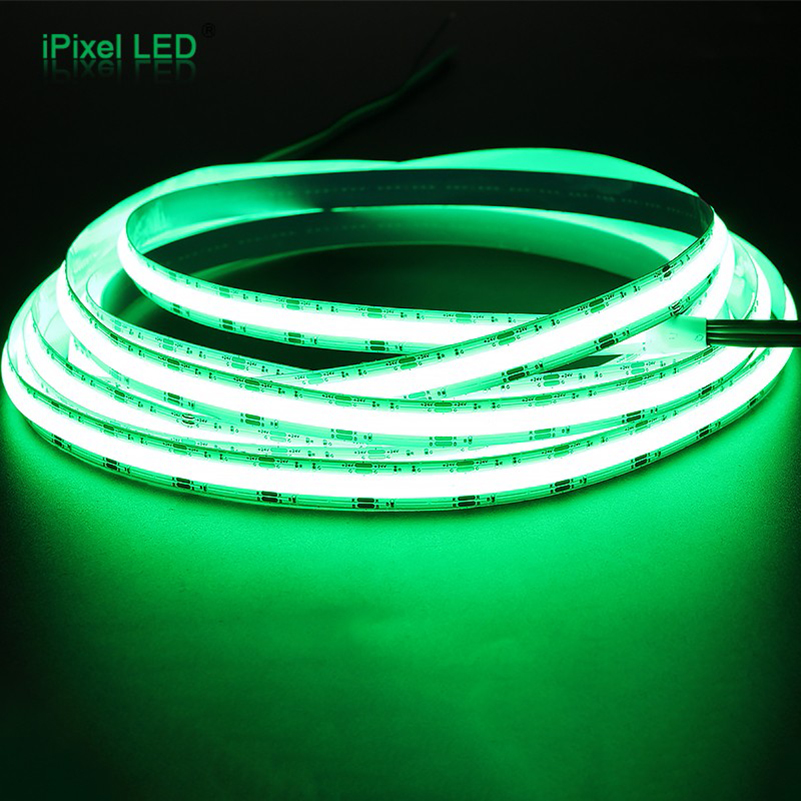

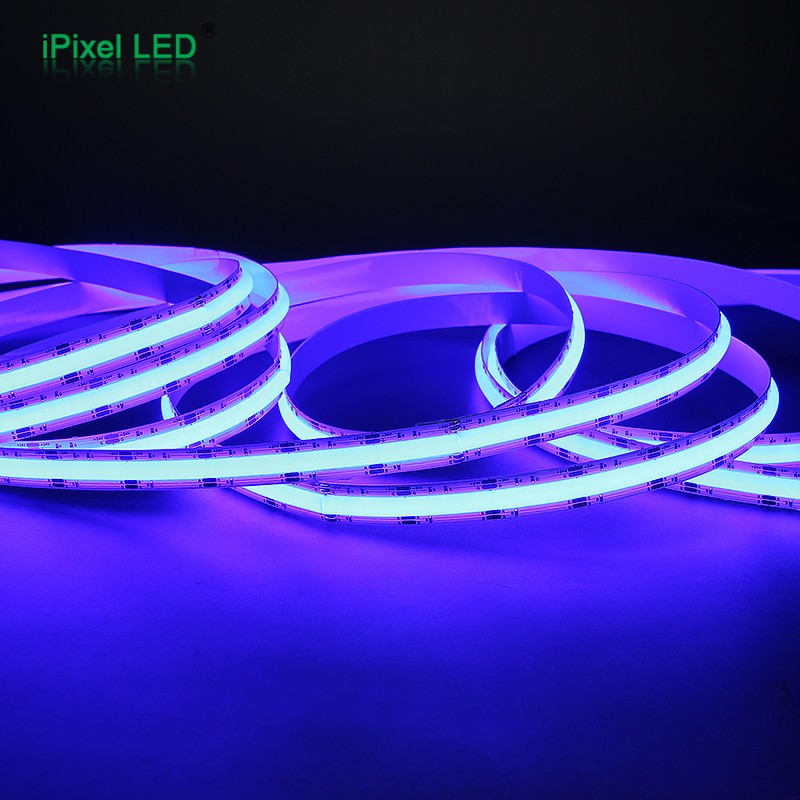

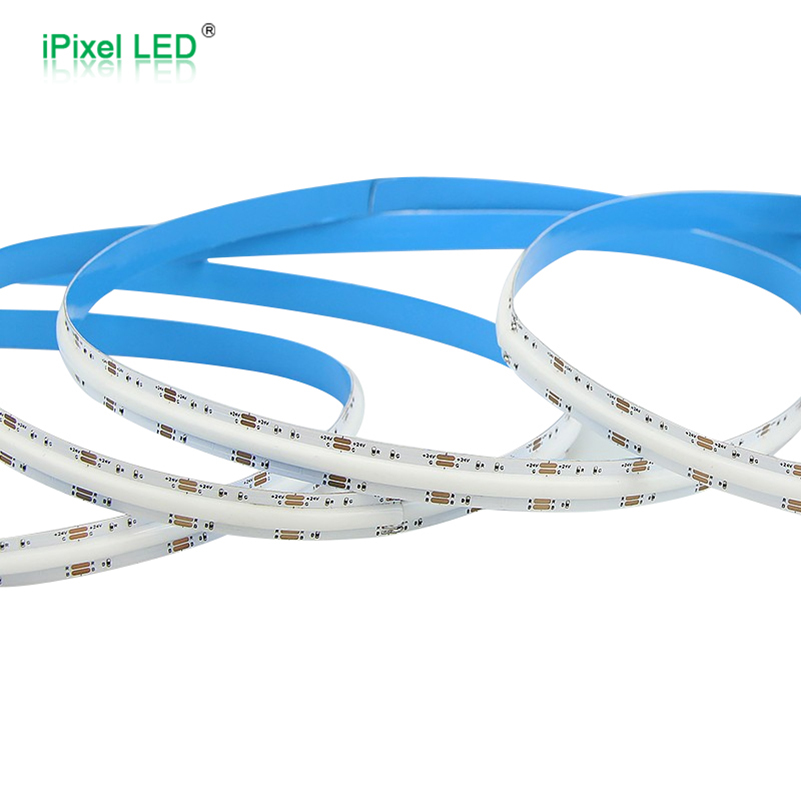

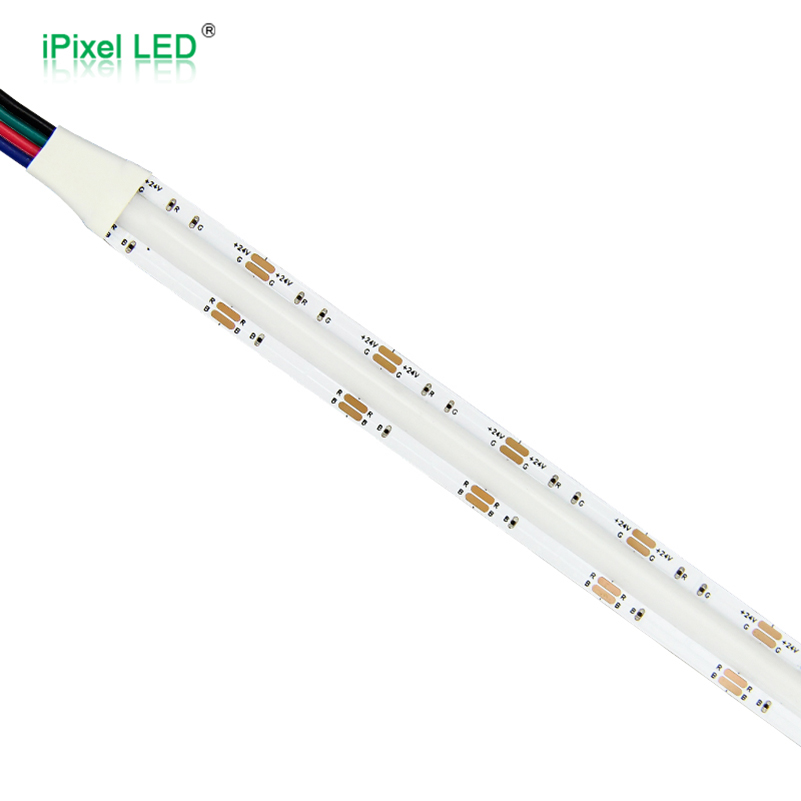

COB RGB LED flexible strip 1056 LEDs/m

Application:

1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club
6. Outdoor building,fridge

Share to

Specification

Product Parameter

PN	S0121056ZC3PZ
Voltage	DC24V
SMD Type	COB
LED Quantity	1056 LEDs/m
View Color	RGB
Dimension	5000*12mm
Wavelength	R:620-625 G:520-525 B:460-465nm
Lumens/m	Ｒ: 980 Ｇ: 3245 Ｂ: 575lm
PCB Color	White
Power	18 W/M
Minimum Cutting Length	22.7mm
IP Rate	IP20/IP65

Description

This led strip uses COB LED chips, high density with 1056LEDs/m
PWM control
Input voltage is DC24V
Flexible PCB, the FPCB color is white
The FPCB width is 12mm, 1 + 2 Oz copper
Standard 5M/roll, length can be customized

Dimension (unit:mm)

COB RGB LED flexible strip1056 LEDs/m

IP Rate

COB RGB LED flexible strip1056 LEDs/m
