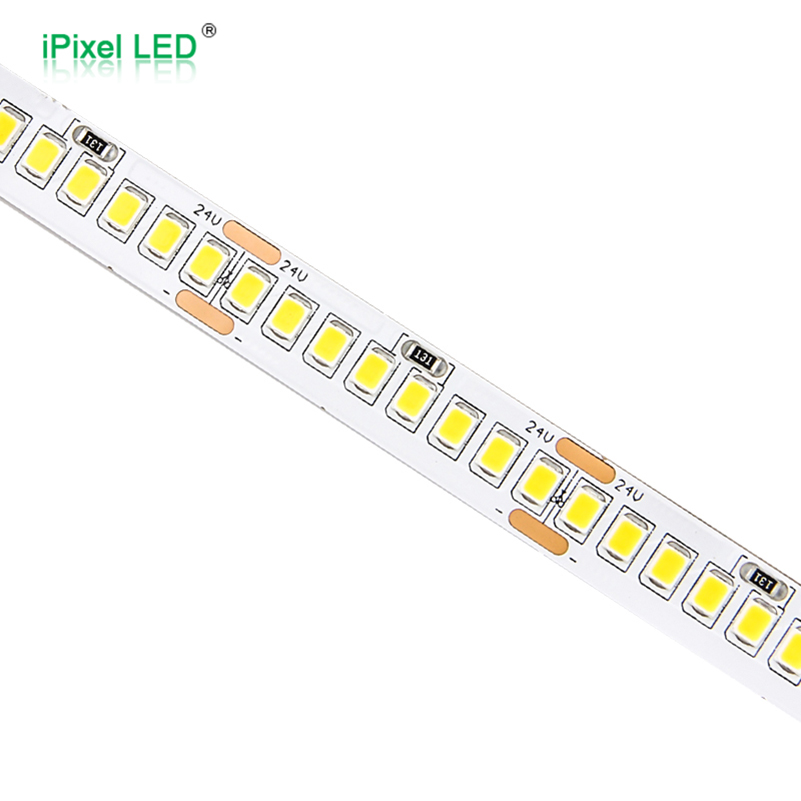

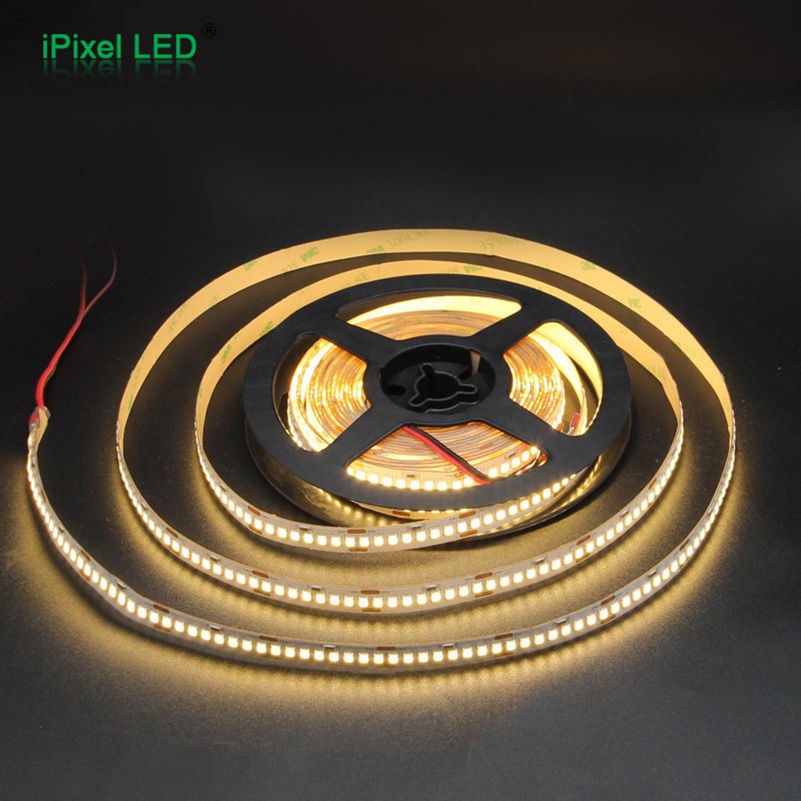

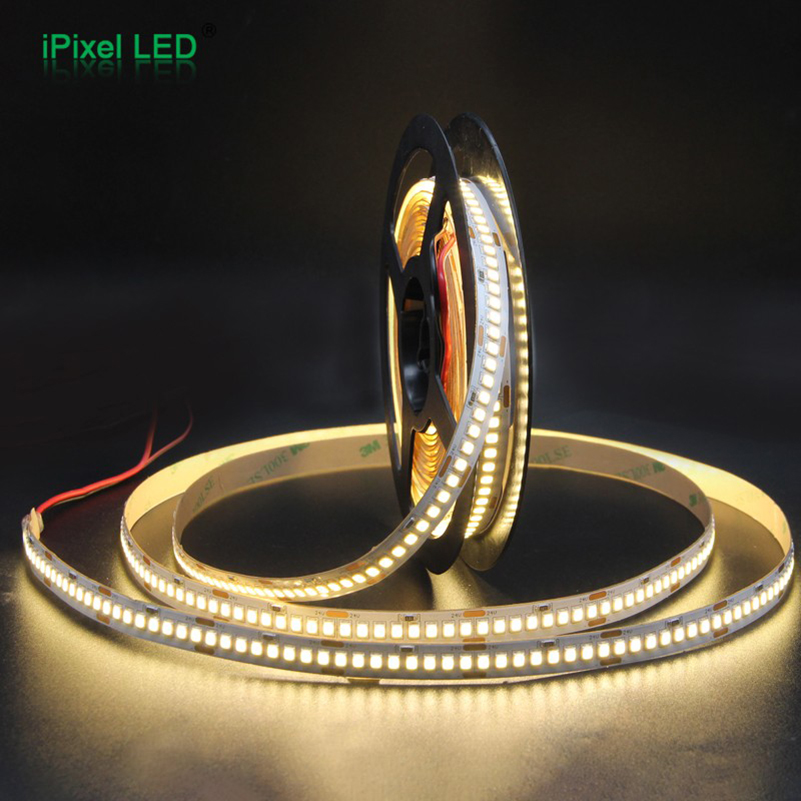

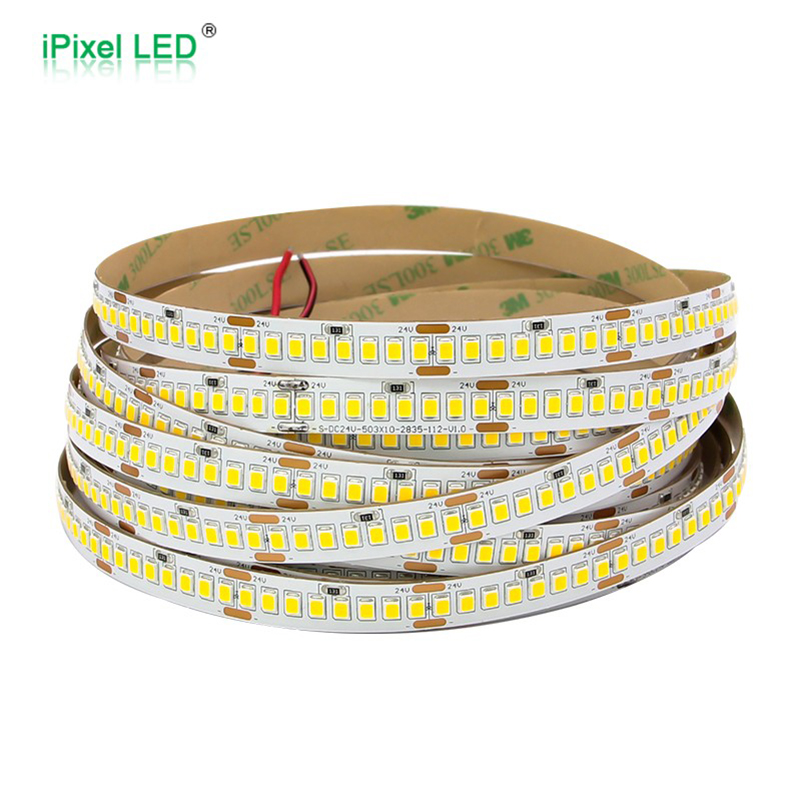

High Efficiency 2835 single color LED strip 224 LEDs/M DC24V

Application:

1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club
6. Outdoor building,fridge

Share to

Specification

Product Parameter

PN	S010224BC1LZ (150lm)	Luminance efficiency
Voltage	DC24V	CCT	Ra80	Ra90
LED Type	SMD 2835	☆2000K	☆105lm/w	☆95lm/w
LED Quantity	224 leds/m	☆2300K	☆120lm/w	☆105lm/w
Dimension	5000*10 MM	☆2500K	☆135lm/w	☆120lm/w
Cutting Length	35.71mm / 8LEDs	☆2700K	☆150lm/w	☆135lm/w
SDCM	<5, 3 step 1 bin	3000K	150lm/w	135lm/w
Power	14 W/M	☆3500K	☆150lm/w	☆135lm/w
Beam Angle	120°	4000K	150lm/w	135lm/w
IP Rate	IP20/IP65	☆5000K	☆150lm/w	☆135lm/w
O.T	-25℃ ~ 60℃	6000K	150lm/w	135lm/w

☆Indicates that this item needs customization

PN	S010224BC1LZ(180lm)
Voltage	DC24V	CCT	Ra80	Ra90
LED Type	SMD 2835	☆2000K	☆130lm/w	☆115lm/w
LED Quantity	128 leds/m	☆2300K	☆145lm/w	☆130lm/w
Dimension	5000*10 MM	☆2500K	☆160lm/w	☆145lm/w
Cutting Length	35.71mm / 8LEDs	☆2700K	☆180lm/w	☆160lm/w
SDCM	<5, 3 step 1 bin	3000K	180lm/w	160lm/w
Power	14 W/M	☆3500K	☆180lm/w	☆160lm/w
Beam Angle	120°	4000K	180lm/w	160lm/w
IP Rate	IP20/IP65	☆5000K	☆180lm/w	☆160lm/w
O.T	-25℃ ~ 60℃	6000K	180lm/w	160lm/w

☆Indicates that this item needs customization

Description

Use 2835 high brightness led, high purity gold line, SANAN chip.
224LEDs/M, single row LED, high luminance efficiency and high Ra.
Input voltage DC24V. Luminance efficiency
Flexible PCB, FPC color: white.
1+2 OZ copper thickness FPC, 10mm PCB width.
Standard length 5m per roll, the length also can be customized.

Dimension (unit:mm)

High Efficacy 2835 single color LED strip 224 LEDs/M
