Application:
. Hotels,restaurants,nights clubs,
. Shopping malls,various shops,
. Coffee/wine bars, furniture light
. Cinemas,beauty centers,
. Coffee/wine bars, furniture light.
PN |
S010030CA3SA6 |
S010060CA3SA6 |
S012144CA3SA6 |
Voltage |
DC5V |
DC5V |
DC5V |
LED Type |
SMD 5050 RGB |
SMD 5050 RGB |
SMD 5050 RGB |
LED Quantity |
30LEDs/m |
60LEDs/m |
144LEDs/m |
Protocol |
SPI - WS2813 |
SPI - WS2813 |
SPI - WS2813 |
Dimension |
5000*10MM |
5000*10MM |
1000*12MM |
Pixel/m |
30PCS |
60PCS |
144PCS |
PCB Color | White/Black |
White/Black |
White/Black |
Power |
7.2W/M |
12W/M |
24 W/M |
O.T | -30℃ ~ 45℃ |
-30℃ ~ 45℃ |
-30℃ ~ 45℃ |
Description
WS2813 a new version addressable LED based on WS2812B.
The advantage is when 1pcs LED burn, the other LED will keep working.

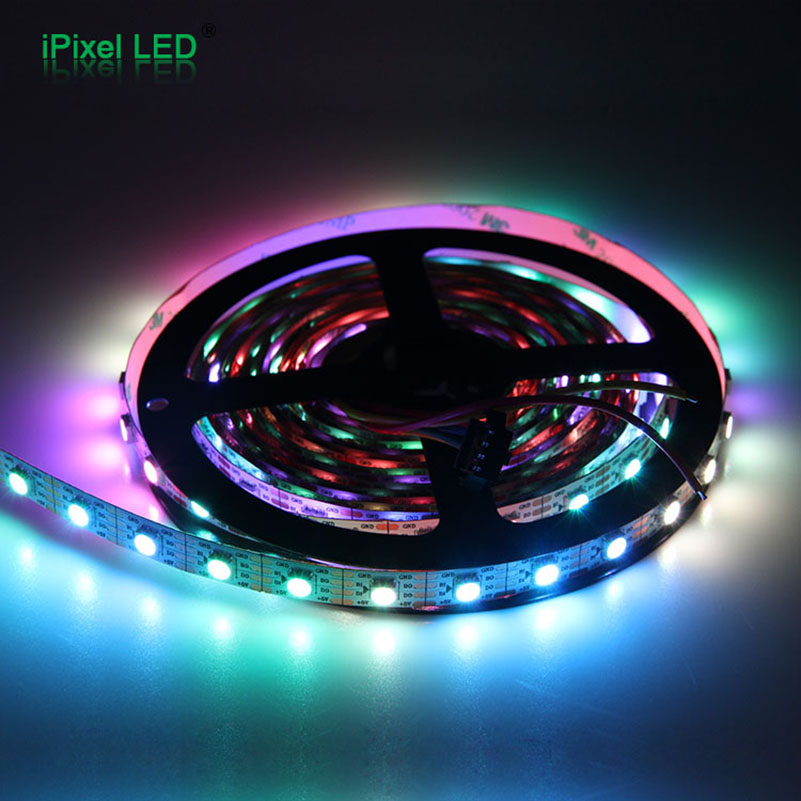

It's 5meters in a reel and 30 Pixel/LED per meter cut-able of each unit.

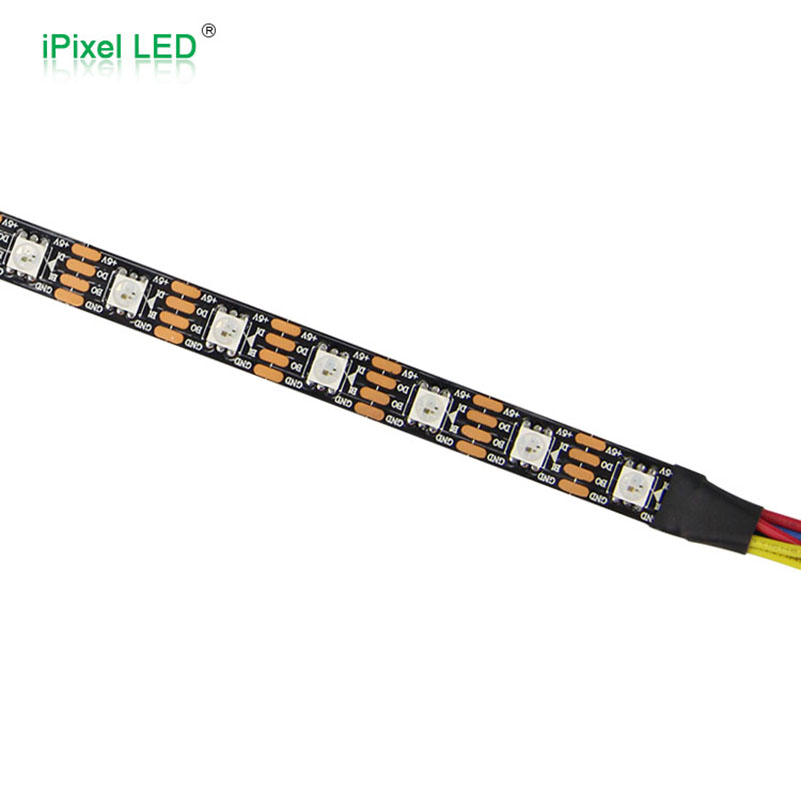

White & black both color available on surface of
LED chip and PCB, but our standard one is white LED and White color PCB also.
DC5V input, suggest inject Power from start and end of the reel.
3M adhesive attached on strip,waterproof version IP65,silicon tube coating.
With a pair of JST SM connector (IP20).

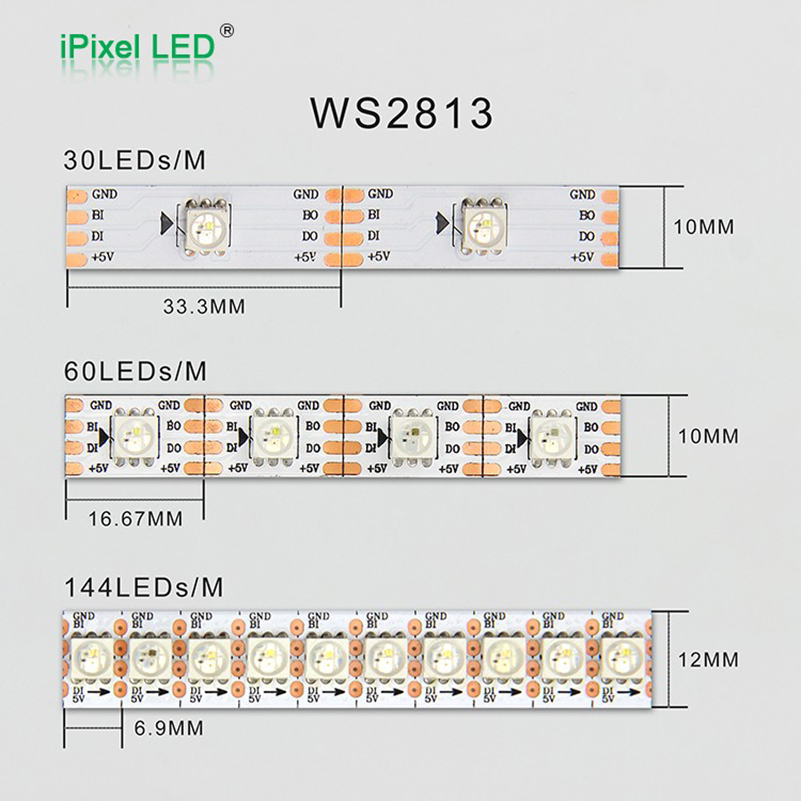

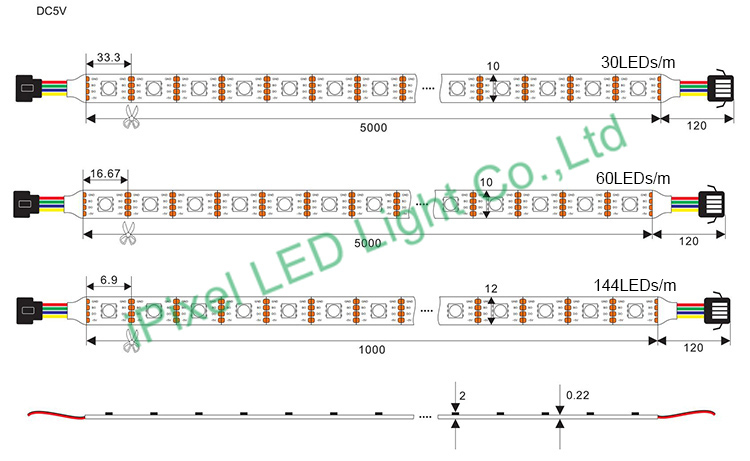

Dimension (unit:mm)
IP Rate
