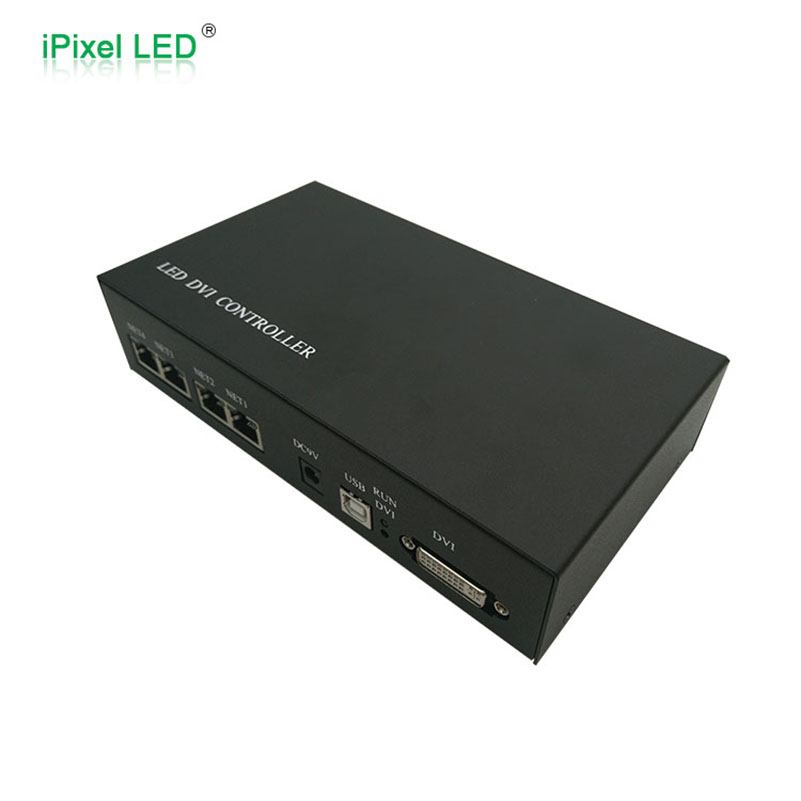

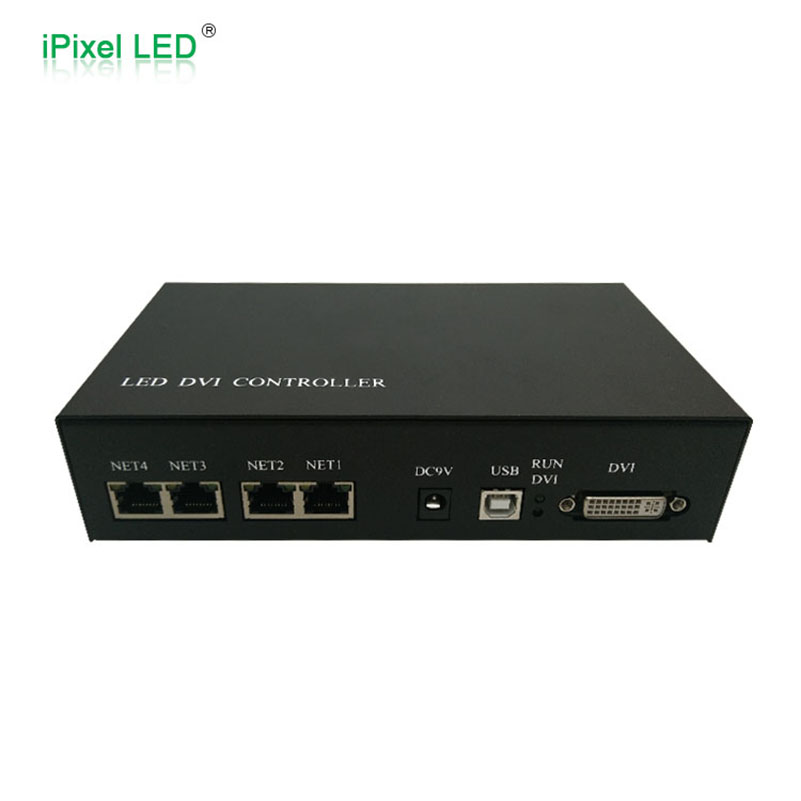

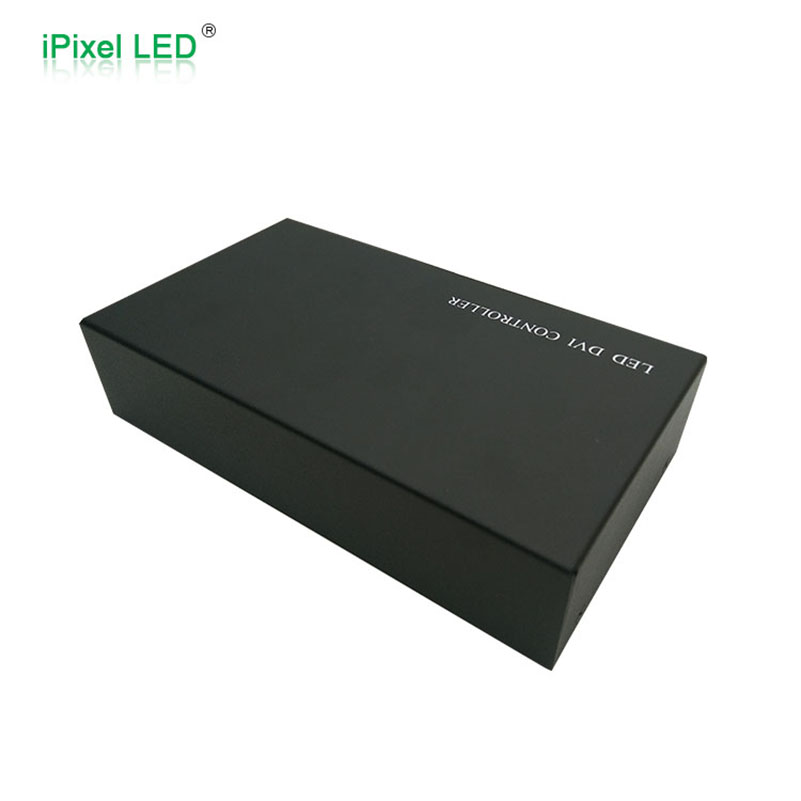

LED DVI Controller H803TV

Download Software

 Online LEDStudio_V4_40



H803TV Manual for Parameter


H803TV Manual for use


Share to

Specification

Abstract:

H803TV is an online master controller that transmits data via DVI/HDMI interface and has the features of high speed transmission and large control ability. H803TV can be connected to different computers with different operating systems, and can also be connected to devices with DVI/HDMI interface. It supports dual-monitor mode, multi-monitor extension mode and duplication mode. Using duplication mode when H803TV is connected to computer.


Auxiliary slave controller is H801RA, H801RC and H802RA.
Auxiliary software is “LED studio software” or “Madrix”.


Supported Driver Chips:


LPD6803, LPD8806, LPD1882, LPD1889, LPD6812, LPD1883,LPD1886, DMX512, HDMX, APA102, MY9221, DZ2809, SM16716,SM16711, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912,WS2801, WS2803, WS2811, INK1003, TM1812, TM1809, TM1804,TM1803, TM1913, TM1914, TM1926, TM1829, TM190, TM1814,BS0901,BS0815, LY6620, BS0825, LD1510, LD1512,LD1530, LD1532, TLS3001, TLS3002, DM412, DM413, DM114,DM115, DM13C, DM134, DM135, DM136, MBI6023, MBI6024,MBI5001, MBI5168, TB62726, TB62706,A8012, etc.


Specifications:


Input Voltage
          DC9V
Power Consumption
          5W
Control pixels number
          400000 pixels
Weight
          0.8Kg
Working Temperature
          -20C°--75C°
Dimension
          L183 x W139 x H40
Carton Dimension
          L205 x W168 x H69


Connection Diagram:

LED DVI Controller H803TV

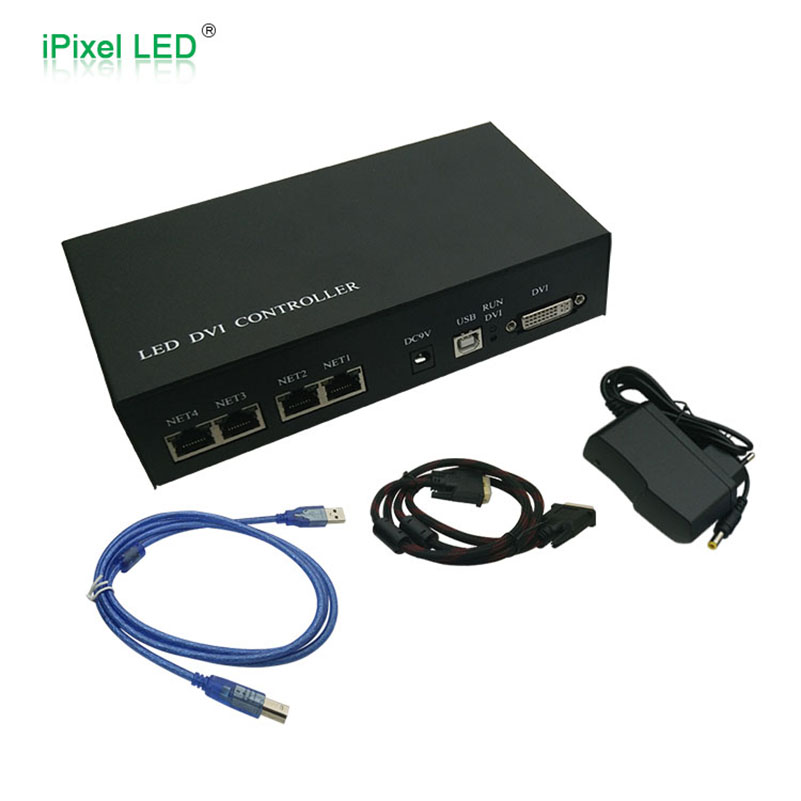

Accessories:

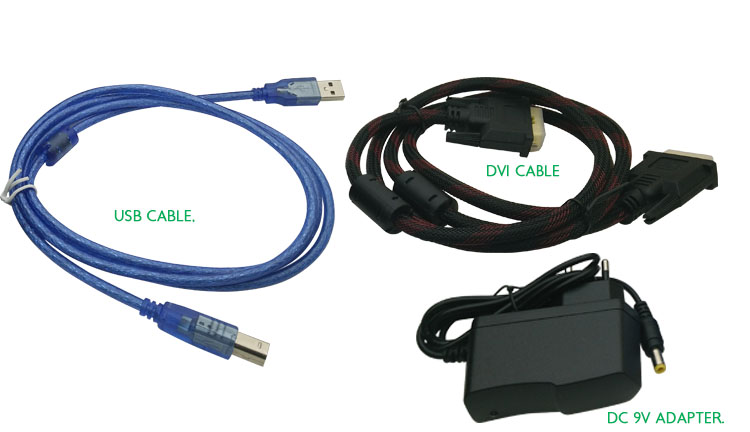

DVI cable, USB cable, DC 9V adapter.
LED DVI Controller H803TV
