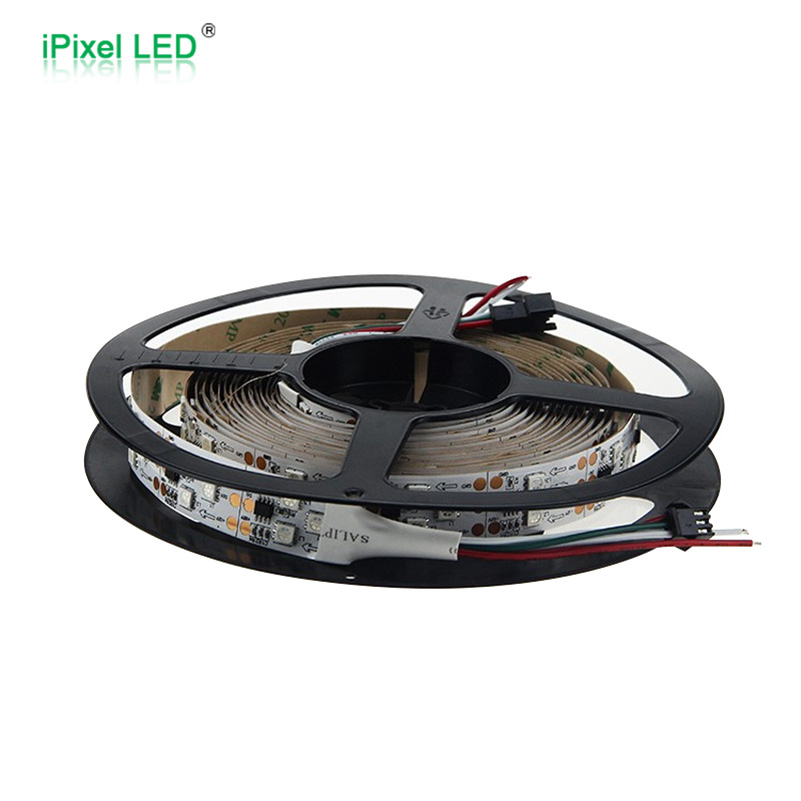

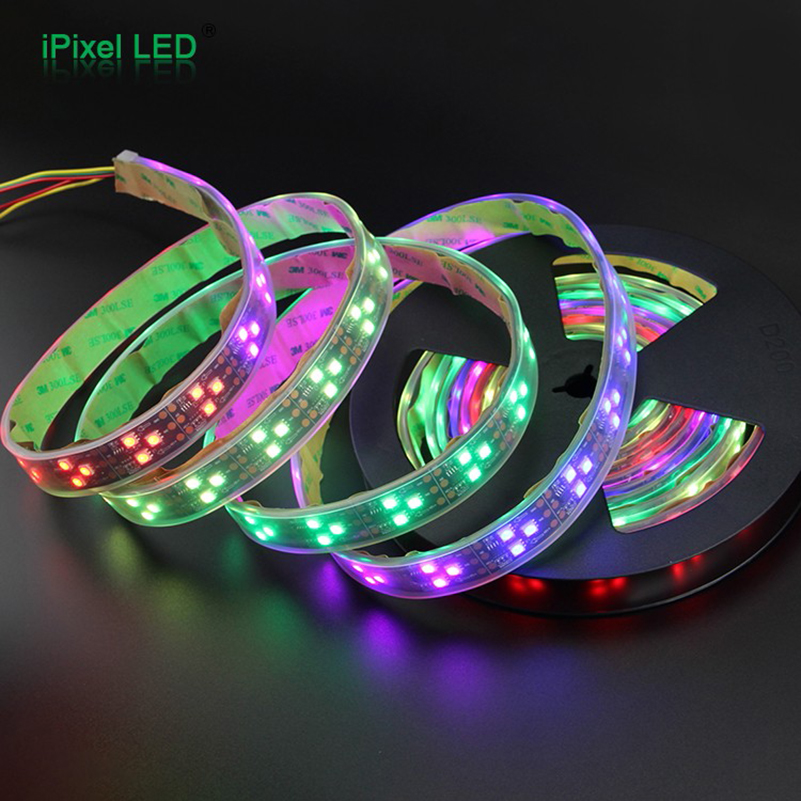

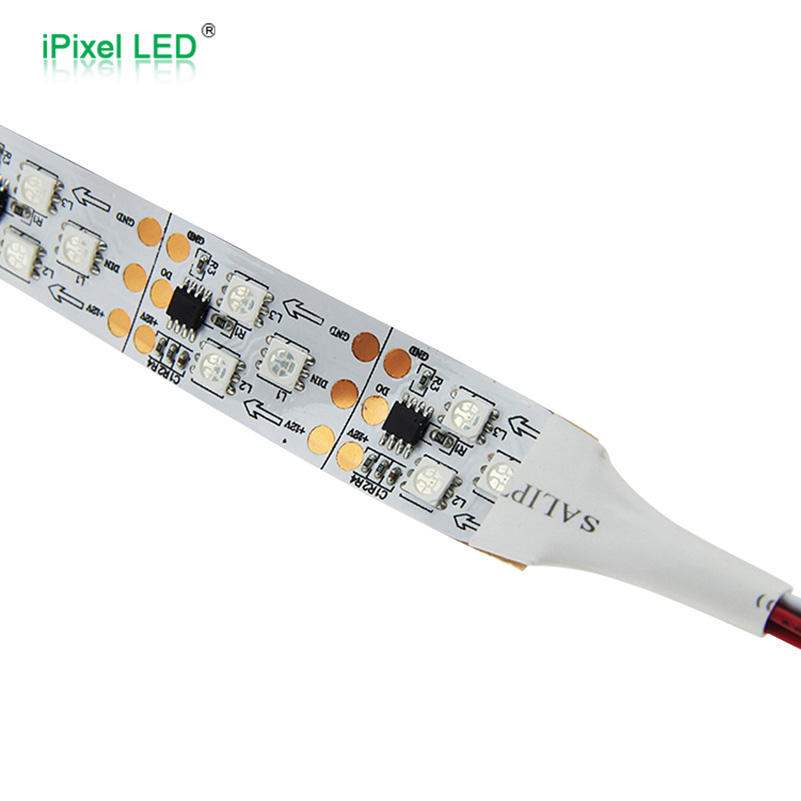

SPI WS2811 digital LED Strip 90LEDs/m 20mm Wide DC12V

Application:

1. Hotels,restaurants,nights clubs,

2. Shopping malls,various shops,

3. Coffee/wine bars, furniture light

4. Cinemas,beauty centers,
5. Coffee/wine bars, furniture light.

Email: inquiry@ipixelleds.com

Share to

Specification

Product Parameter

PN	S020090CB3SF
Voltage	DC12V
LED Type	SMD 5050 RGB
LED Quantity	90 leds/m
IC Quantity	30 IC/m
Dimension	5000*20 MM
Protocol	SPI
IP	IP 20/IP 65
Power	18 W/M
O.T	-30℃ ~ 45℃

Description

Ws2811 all lights shall adopt a three lights IC,commonly konwn as "a drag three",IC for the WS2811,

5050RGB lamp beads lamp beads,the working voltage of 1 2V DC,12V with full-color Happy Valley,
running water/chase cahnging,metor/flash,color change/mixed mode changed,and so a variety of
effects!Lights with intellgent IC chip,througn full color controller or with programming,to achieve any
effect you want.

Dimension (unit:mm)

WS2811 Magic LED Strip
