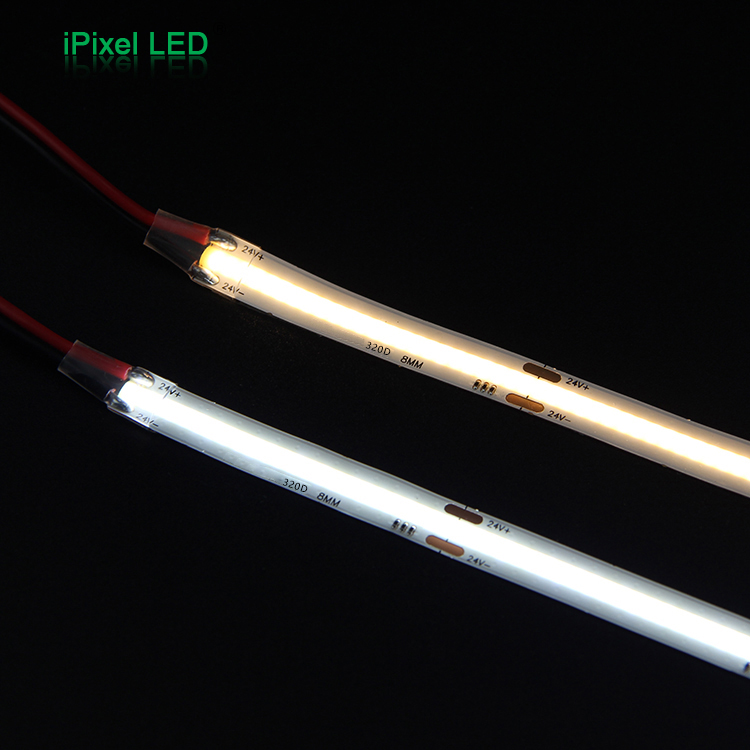

320LEDs/m COB single color led strip DC24V

Application:

1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club
6. Outdoor building,fridge

Share to

Specification

Product Parameter

PN	S008320ZC1LZ
Voltage	DC24V
SMD Type	COB
LED Quantity	320 leds/m
CCT	3000K 4000K 6000K
Dimension	5000*8 MM
Lumens/m	840 LM
PCB Color	White
Power	10 W/M
CRI	90 RA
O.T	-25℃ ~ 45℃

Description

What is a COB LED Strip Light ? Compared to the SMD 2835: 1 chip on board, or 5050: 3 chips

on board, a COB(Chip On Board) LED light has multiple chips on the same PCB (Printed Circuit

Board),which make the emitting units unprecedentedly close to each other, and create super

even lighting performance The Highlights of COB: Lower power, higher light efficiency
(110LM/W),higher CRI(85+). 180 degrees beam angle design for 50% wider lighting,multiple

chips on board for uniform illumination,NO MORE worries about dark spot!

Dimension (unit:mm)

320 LEDs/m COB LED Strip
