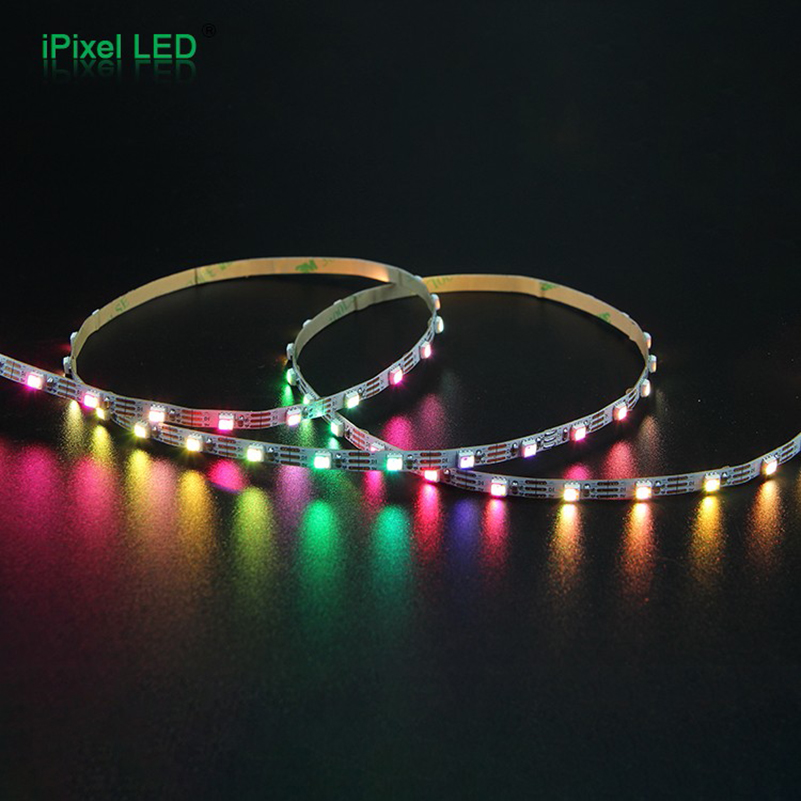

SMD 3535 RGBW Addressable LED strip 30/60/144LEDs/M DC5V

Application:

1. Hotels,restaurants,nights clubs,

2. Shopping malls,various shops,

3. Coffee/wine bars, furniture light

4. Cinemas,beauty centers,
5. Coffee/wine bars, furniture light.

Email: inquiry@ipixelleds.com

Share to

Specification

Product Parameter

    PN
    S005030DA4SA1
    S005060DA4SA1
    S008144DA4SA1
    Voltage
    DC5V
    DC5V
    DC5V
    LED Type
    SMD 3535 RGBW
    SMD 3535 RGBW
    SMD 3535 RGBW
    LED Quantity     30 leds/m
    60 leds/m
    144 leds/m
    Protocol
    SPI - SK6812
    SPI - SK6812
    SPI - SK6812
    Dimension
    5000*5MM
    5000*5MM
    1000*8MM
    Pixel/m
    30PCS
    60PCS
    144PCS
    PCB Color     White/Black     White/Black
    White/Black
    Power
    7.2W/M
    13W/M
    34W/M
    O.T     -30℃ ~ 45℃     -30℃ ~ 45℃
    -30℃ ~ 45℃

Description

This SMD 3535 RGBW Addressable LED Strip with 30\60\144LEDs and 30\60\144Pixels per

meter(individually controlled every LEDs).
Compare with RGB led strip , there are one more white color, more lighting effects for us,

The color(CCT) of White can be warm white,nature white,pure white and cold white.

Colors are rich and varied, It can realize different changing effects in the controller.
5/8mm width, Light and thin: suitable for installation in narrow space.

Easy and free cutting and welding: You can cut and weld all kinds of length according

to the above cutting mark.

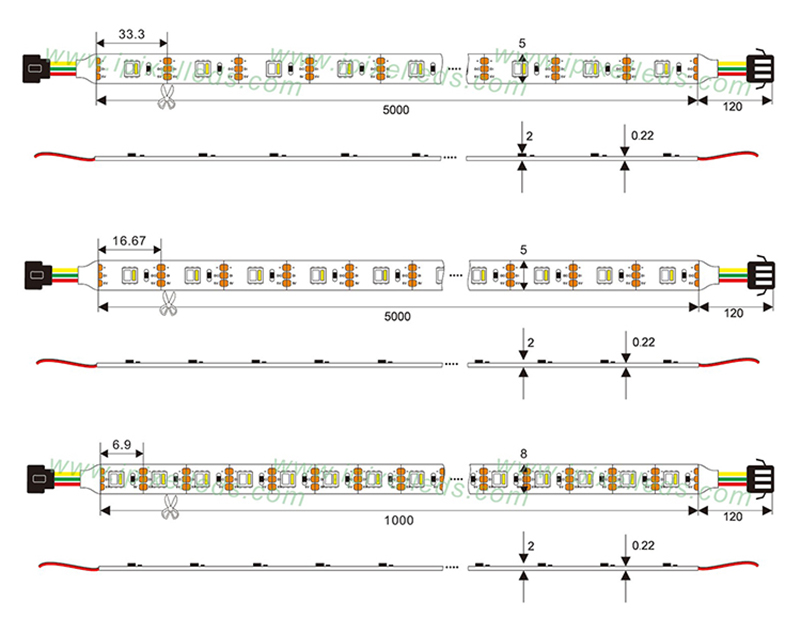

Dimension (unit:mm)

SDM3535 RGBW Addressable LED strip

IP Rate

SK6812 RGB Addressable LED strip 5V
