2835 static color S Shape zigzag LED strip

Application:

1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club
6. Outdoor building,fridge

Share to

Specification

Product Parameter

    PN
    S008060BB1LZ
    Voltage
    DC12V
    LED Type
    SMD 2835
    LED Quantity     60 leds/m
    CCT
    2800-3200K   |    4000-4500K   |    9000-10000K
    Lumens
    860 LM/M       |    1170 LM/M     |    1380 LM/M
    Dimension
    5000*8 MM
    PCB Color     White
    Power
    8 W/M
    CRI
    85 RA
    O.T     -30℃ ~ 45℃

Description

This flexible LED strip solders 60pcs SMD 2835 LEDs
per meter FPC in white color with 8mm Width, and 1+1 Ounce copper
Cut-able every 3LEDs & 50mm(DC12V)
DC12V constant voltage operation
Both ends have 2pin bare wires for powering
heat resistant tape attached on backside of FPC,5 meters in a reel,
Only available in IP20 non-waterproof version
CCT 2800-3200K 4000-4500K 9000-10000K are available

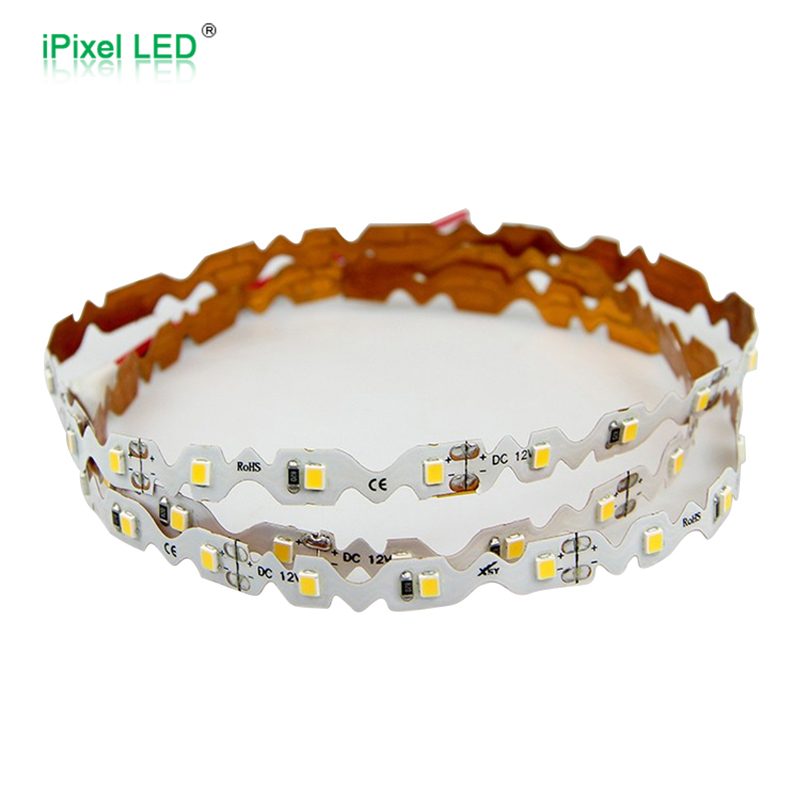

The biggest advantage is the S shape which can be bend at any Angle


Dimension (unit:mm)

2835 static color S Shape zigzag LED strip w w

IP Rate

2835 static color S Shape zigzag LED strip w w
