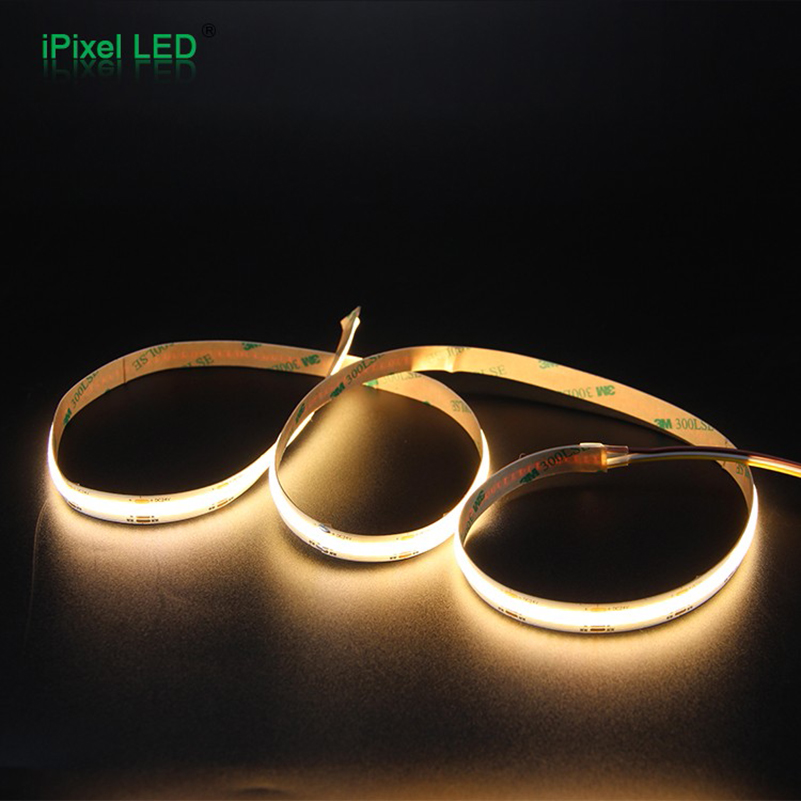

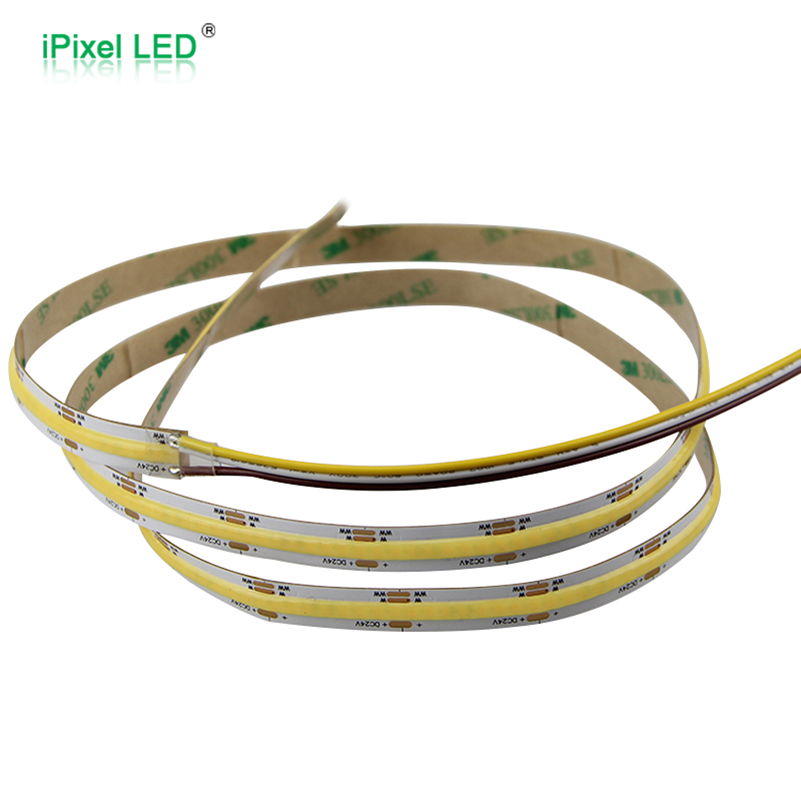

Dual Color COB LED strip 576LEDs/m DC24V

Application:

1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club
6. Outdoor building,fridge

Share to

Specification

Product Parameter

    PN
   S010576ZC2PZ
    Voltage
    DC24V
    SMD Type
    COB
    LED Quantity     576 LEDs/m
    CCT
    2800-3200K+5500-6500K CCT
    Dimension
    5000*10 MM
    Lumens/m
    WW:1041LM   W:1575LM
    PCB Color     White
    Power
    24W/M
    CRI
    90 RA
    O.T     -20℃ ~ 50℃

Description

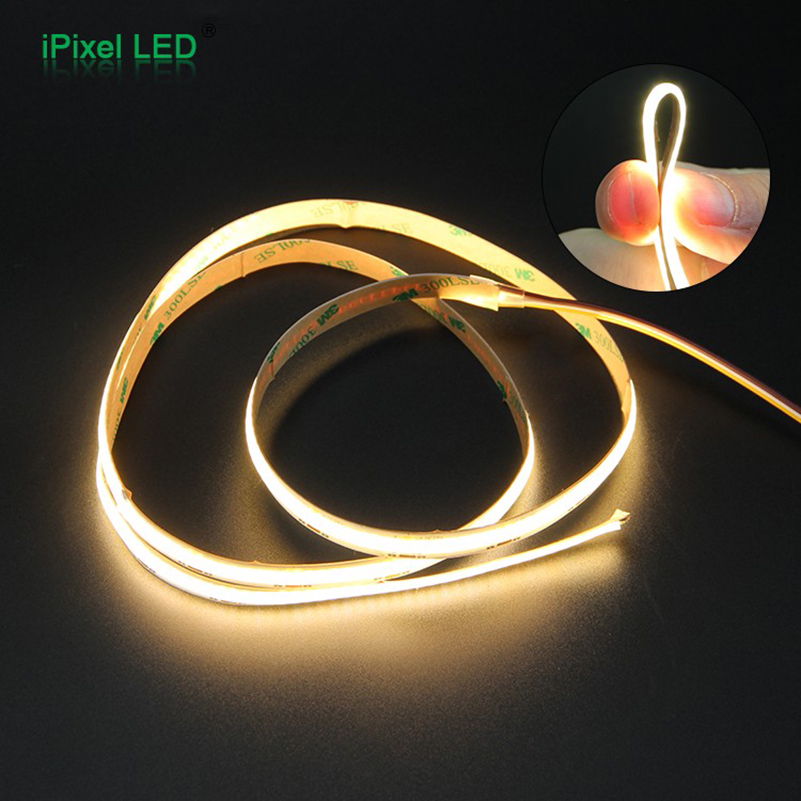

1.This COB led strip is small in size, can be arbitrary bending
2.It with double/dual color temperature and the color temperature can be adjusted through the controller.
3.Using SMD flip chip, high integration, 576 LEDs per meter.
4.Every 27.8mm can be cut, thickened PCB 1 + 2 OZ thick copper.
5.High luminous efficiency, uniform illumination, no spot.
6.This product is suitable for covered channel, Park, Square, Building lighting.
7.Ambient temperature: - 40 ~ 55℃



Dimension (unit:mm)

Dual Color COB LED strip 576LEDs/m

IP Rate

Dual Color COB LED strip 576LEDs/m
