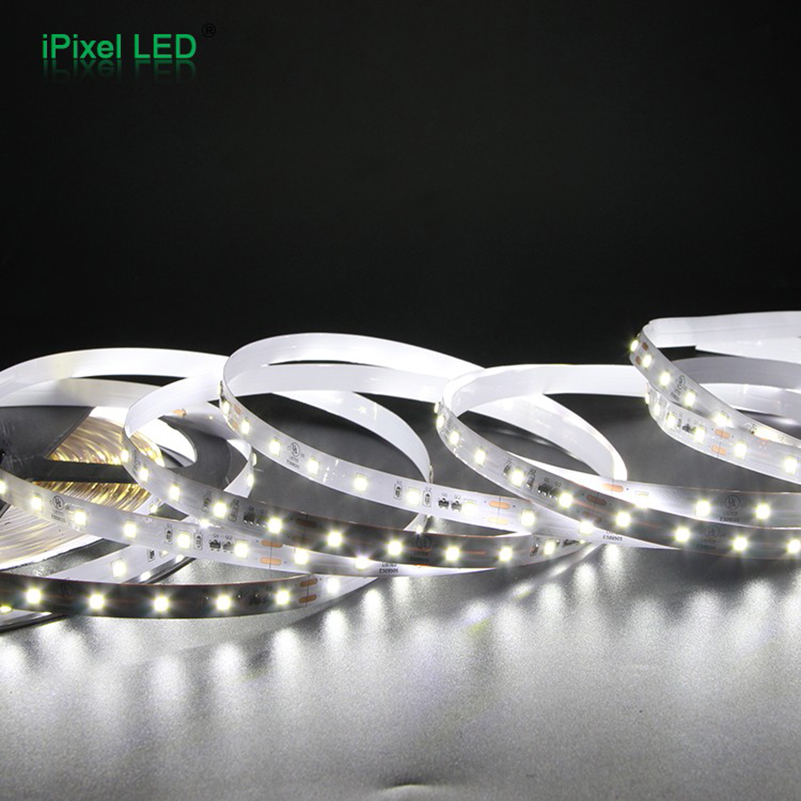

Constant Current single color 2835 LED strip 60LEDs/m DC24V

Application:

1. Hotels,restaurants,nights clubs,

2. Shopping malls,various shops,

3. Coffee/wine bars, furniture light

4. Cinemas,beauty centers,
5. Coffee/wine bars, furniture light.

Email: inquiry@ipixelleds.com

Share to

Specification

Product Parameter

    PN
    S010060BC1HZ
    Voltage
    DC24V
    SMD Type
    SMD 2835
    LED Quantity     60 LEDs/m
    View Color
    3000K  4000K  6000K
    Dimension
    20000*10mm
    Lumens/m
    430LM
    Material     FPC
    Power
    4.8 W/M
    Minimum Cutting Length
    100mm
    IP Rate     IP20/IP64/IP65/IP67

Description

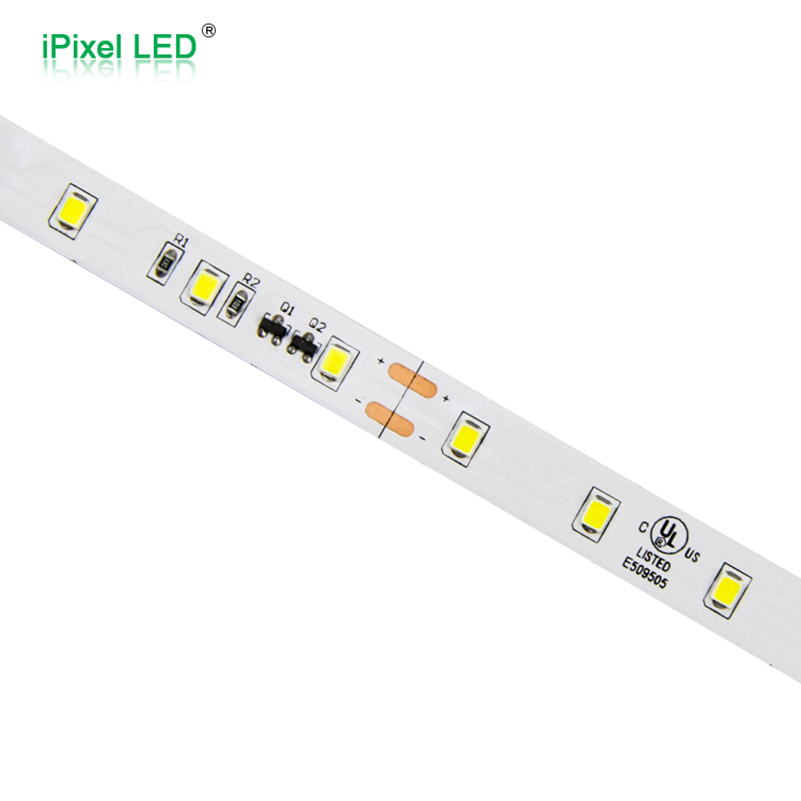

This flex led strip uses SMD2835 LED chip, 20M

The width of PCB is 10mm, and white PCB, 1+2 Ounce copper

DC24V, cuttable every 6LEDs/100mm

It adopts triode constant current, can be super-long connection, the brightness within 20M is consistent even if one end is powered, suitable for large projects

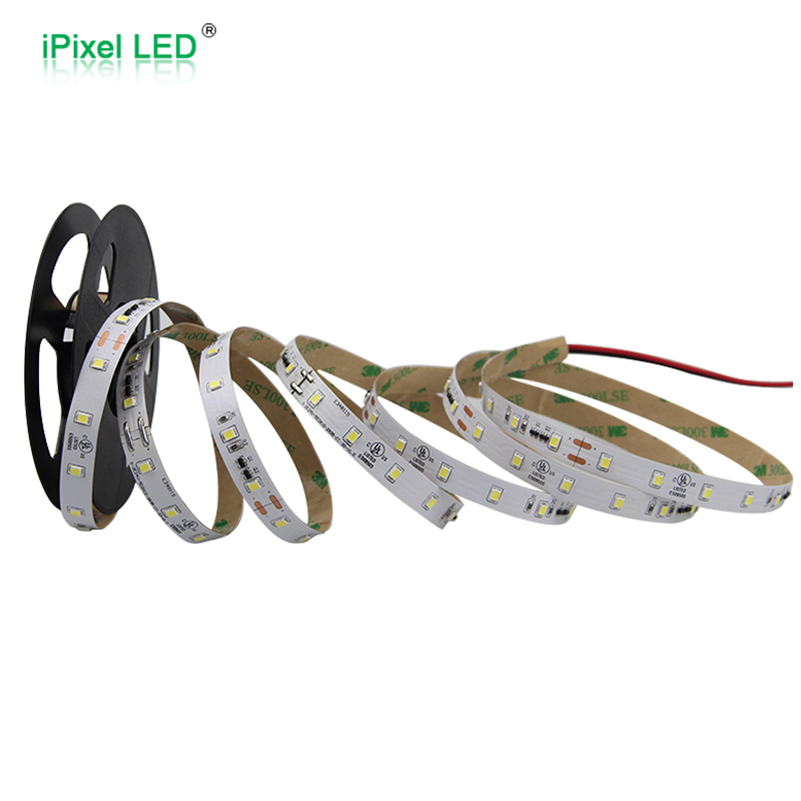

Standard size is 20M/roll, but custom length or terminal wires are accepted

Both ends of each led strip are welded with 2Pin power wire

The back of each strip with 3M adhesive, easy to tear and paste

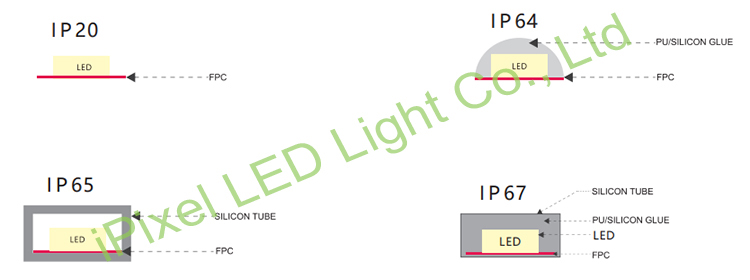

The IP rate can be IP20, IP64, IP65 and IP67

Not just can you choose a different CCT white light, the strip also can be Red/Green/Blue etc


Dimension (unit:mm)

Constant Current single color SMD2835 LED strip 60LEDs/m

IP Rate
