Application:
1. Hotels,restaurants,nights clubs
2. Back lighting, edge lighting
3. Advertising signs, brightening
4. Dancefloor background
|
PN |
Ｎ004120BB1LZ | Ｎ004120BC1LZ |
|
Voltage |
DC12V | DC24V |
| Cutting Length | 25MM | 50MM |
|
LED Quantity |
120 leds/m |
|
SMD Type |
SMD 2835 |
|
Color |
3000K 4000K 6000K |
|
Wavelength |
R:620-625 G:520-525 B:460-465NM |
|
Power |
5 W/M |
|
Lumens/m |
W: 210LM |
| Beam Angle | 120° |
| Size (mm) | 5000x4x10mm |
| O.T | -25℃ ~ 60℃ |
Description
This neon strip is side view with a translucent silicone rubber as a diffuser, light uniform and
no spot.
It is designed to be bent side to side with light projecting upwards.
This silicone rubber is anti-UV, anti-yellowing, anti-aging, environmental protection, non-toxic,
and very soft.
Use highlighted 2835 LED chips, it's long life, low light decay, and good color consistency.
Standard length is 5M/roll, length can be customized, there are cutting marks on the side.
IP65 waterproof for outdoor use
Each roll includes 10pcs alu clips for installation (2pcs/m)

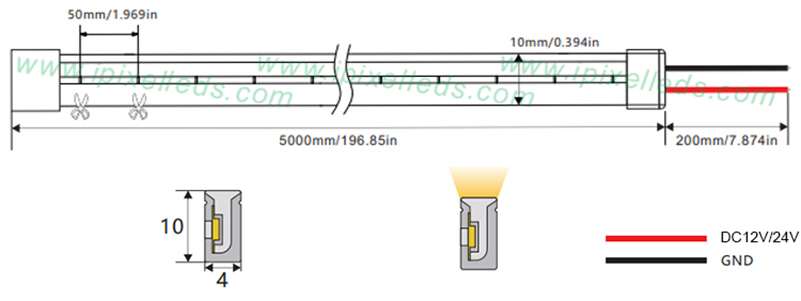

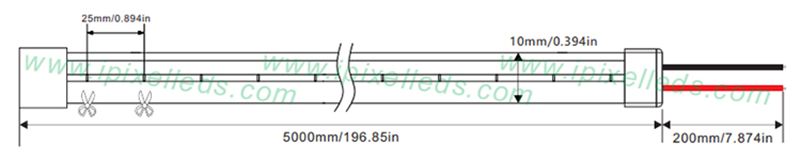

Dimension (unit:mm)
DC12V Type
DC24V Type
Accessory
