10x10mm single color top view led neon strip DC12V/DC24V

Application:

1. Hotels,restaurants,nights clubs

2. Back lighting, edge lighting

3. Advertising signs, brightening

4. Dancefloor background

Email: inquiry@ipixelleds.com

Share to

Specification

Product Parameter

    PN
    N010120BB1LZ                      |            N010120BC1LZ
    Voltage
    DC12V                                     |            DC24V
     Cutting Length      25MM                                  |           50MM
    LED Quantity
    120 leds/m
    SMD Type
    SMD 2835
    Color
    R/G/B/W:3000K/4000K/6000K
    Wavelength
    R:620-625 G:520-525 B:460-465NM
    Power
    7.2 W/M
    Lumens/m
    W: 580LM
     Beam Angle      150°
     Size (mm)      5000x10x10mm
     Net Weight/Roll      0.5KG
    O.T     -25℃ ~ 60℃

Description

This neon strip is top view with a translucent silicone rubber as a diffuser, light uniform and
no spot.

It is designed to be bent side to side with light projecting upwards.
This silicone rubber is anti-UV, anti-yellowing, anti-aging, environmental protection, non-toxic,
and very soft.
Use highlighted 2835 LED chips, it's long life, low light decay, and good color consistency.
Standard length is 5M/roll, length can be customized, there are cutting marks on the side.
IP65 waterproof for outdoor use
Each roll includes 10pcs alu clips for installation (2pcs/m)

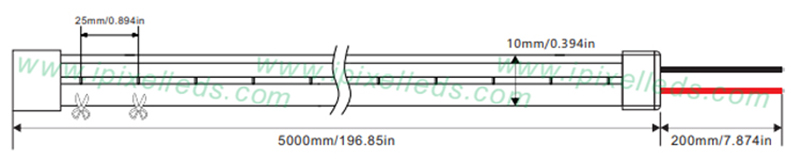

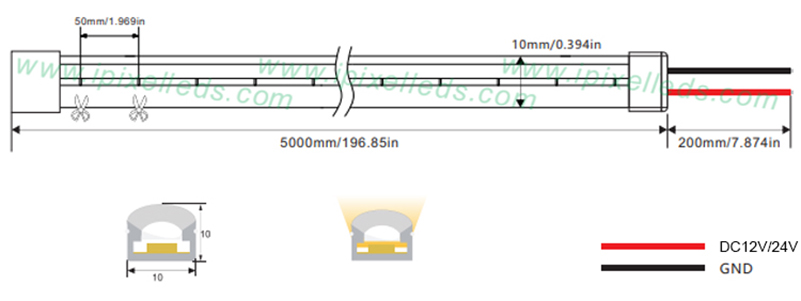

Dimension (unit:mm)


                                                          DC12V  Type

8x16mm single color side emitting led neon strip DC12V/DC24V

                                                         DC24V Type

8x16mm single color side emitting led neon strip DC12V/DC24V

Accessory

10x10mm single color top view led neon strip DC12V/DC24V

10x10mm single color top view led neon strip DC12V/DC24V
