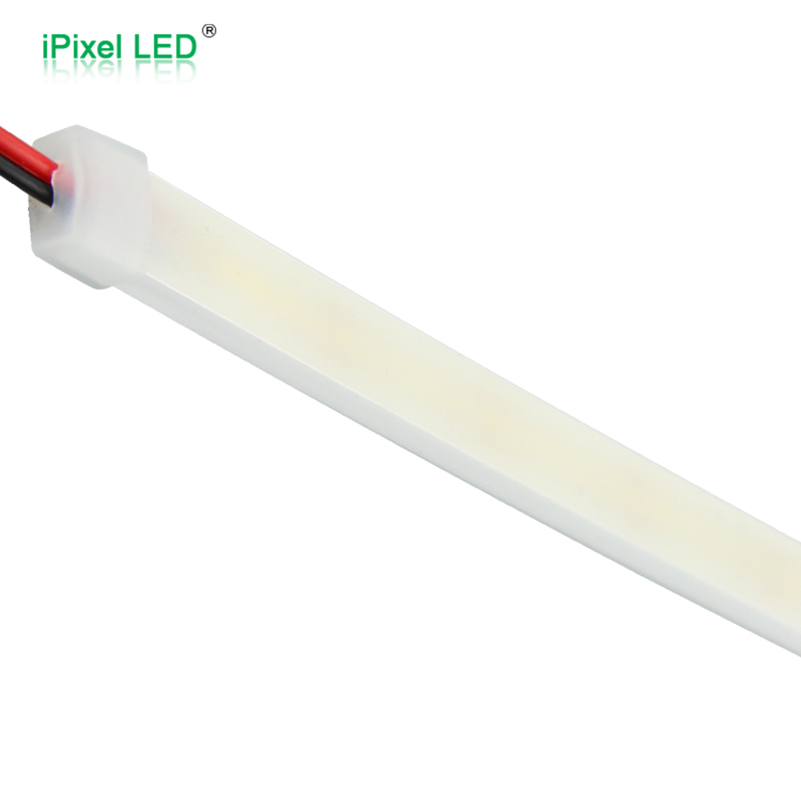

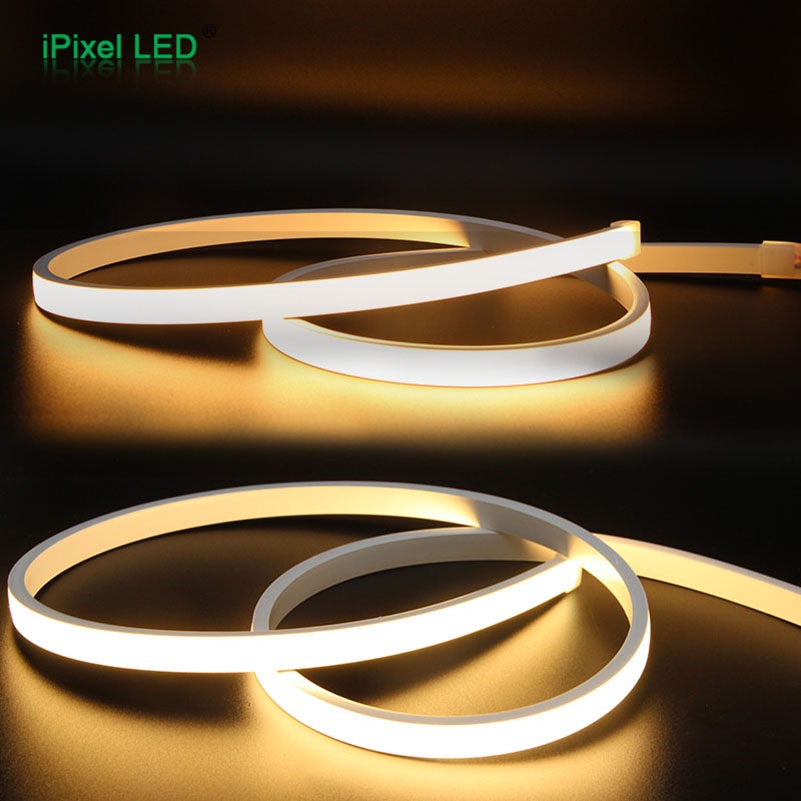

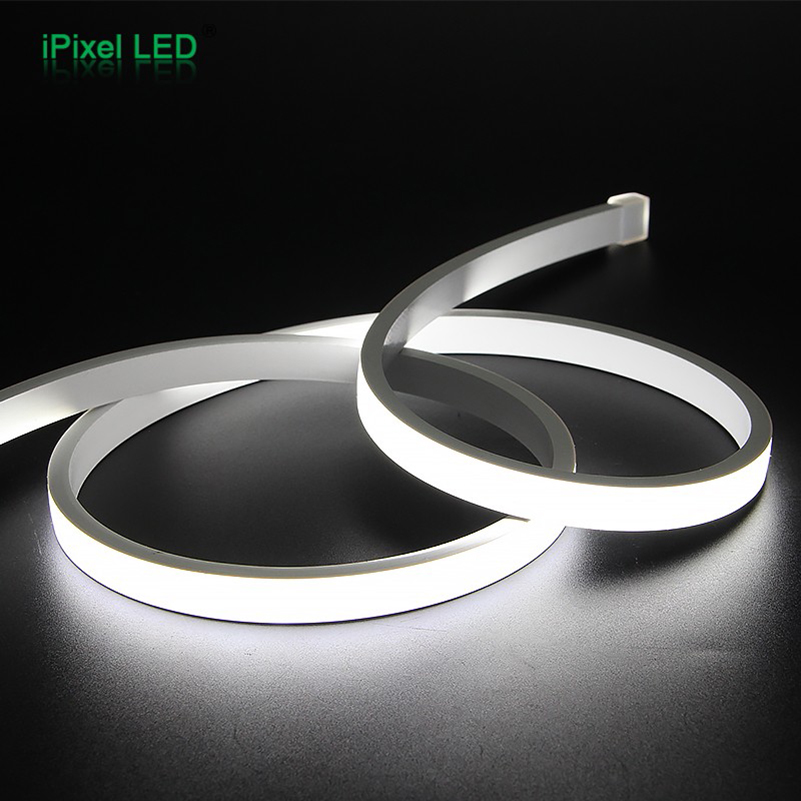

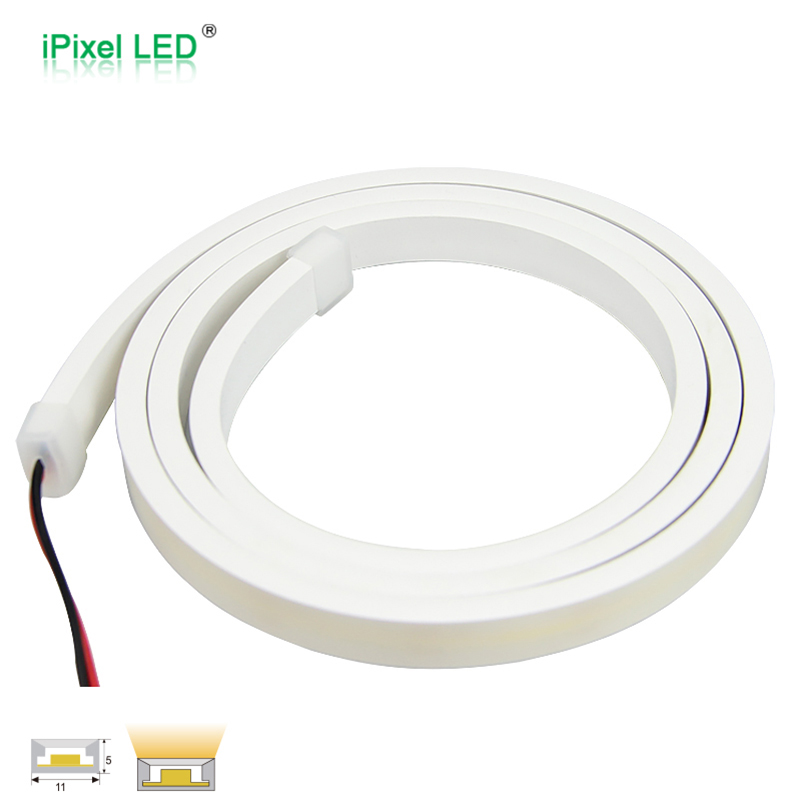

11x5mm single color top view COB led neon strip DC12V/DC24V

Application:

1. Hotels,restaurants,nights clubs

2. Back lighting, edge lighting

3. Advertising signs, brightening

4. Dancefloor background

Email: inquiry@ipixelleds.com

Share to

Specification

Product Parameter

    PN
    N011480ZB1LZ                      |            N011480ZC1LZ
    Voltage
    DC12V                                     |            DC24V
    LED Quantity
    480 leds/m
    SMD Type
    COB
    Color
    R/G/B/W:3000K/4000K/6000K
    Wavelength
    R:620-625 G:520-525 B:460-465NM
    Power
    10 W/M
    Lumens/m
    W: 780LM
     Beam Angle      120°
     Size (mm)      5000x11x5mm
     Net Weight/Roll      0.3KG
    O.T     -25℃ ~ 60℃

Description

This neon strip is top view with a translucent silicone rubber as a diffuser, light uniform and no spot.
It is designed to be bent up to down with light projecting upwards.
This silicone rubber is anti-UV, anti-aging, anti-yellowing, environmental protection, non-toxic,

and very soft.
Use highlighted COB LED chips, it's long life, low light decay, and good color consistency.
Standard length is 5M/roll, length can be customized, there are cutting marks on the side.
IP65 waterproof for outdoor use
Each roll includes 10pcs alu clips for installation (2pcs/m)

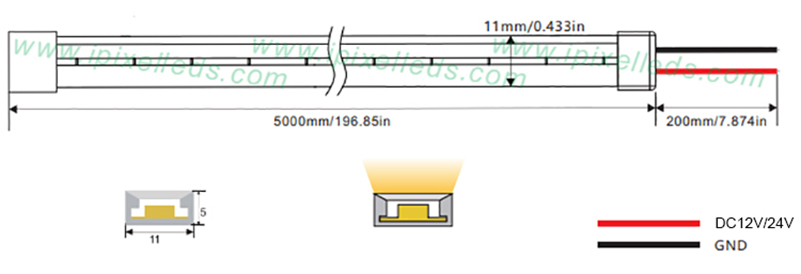

Dimension (unit:mm)

11x5mm single color top view led neon strip DC12V/DC24V

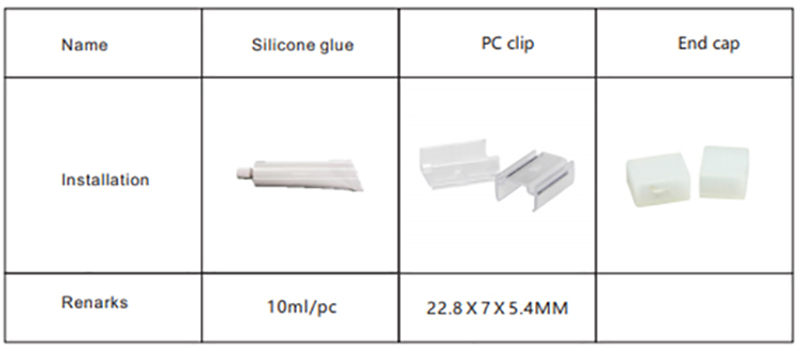

Accessory

4x10mm side emitting led neon strip DC12V
