P032 RGBW Digital LED Module

Application:

1. rides,carousels

2. amusement attractions
3. luminous signs
4. Luna Park signs

5. Casino lighting

Email: inquiry@ipixelleds.com

Share to

Specification

Product Parameter

    PN
    P032001MA4SD6
    Voltage
    DC5V
    LED Type
    Imitation Lumen
    Lumens/pcs
    R: 51lm G: 76lm B: 20lm W:102lm
    Beam Angle
    140°
    Size(mm)
    35*25mm
    Control
    SPI / SM16714
    Power
    4W/PCS
   PCB color
    Black
    O.T     -30℃ ~ 45℃

Description

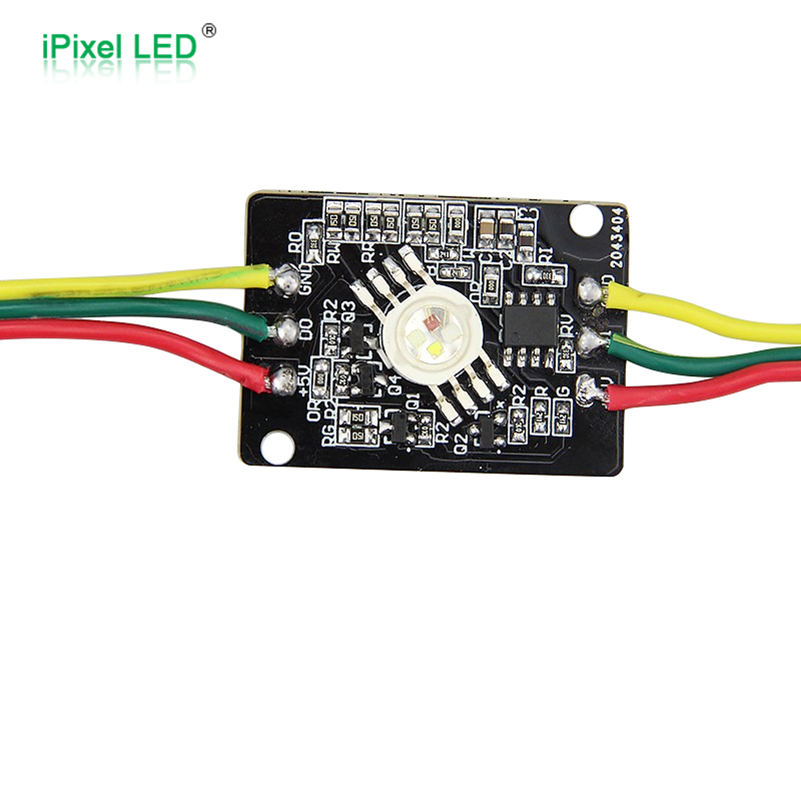

This is a super bright RGB LED mounted on a
Aluminum board backside without a 3M stick
suggested to install on any plate for heat disspation,
2 pcs M3 mounting hole on each conner
SM16714 IC control ,it's working with any SPI
controller or a DMX decoder
constant voltage working, there are 3 pads on each
side of board do not confuse the Data in and Data out

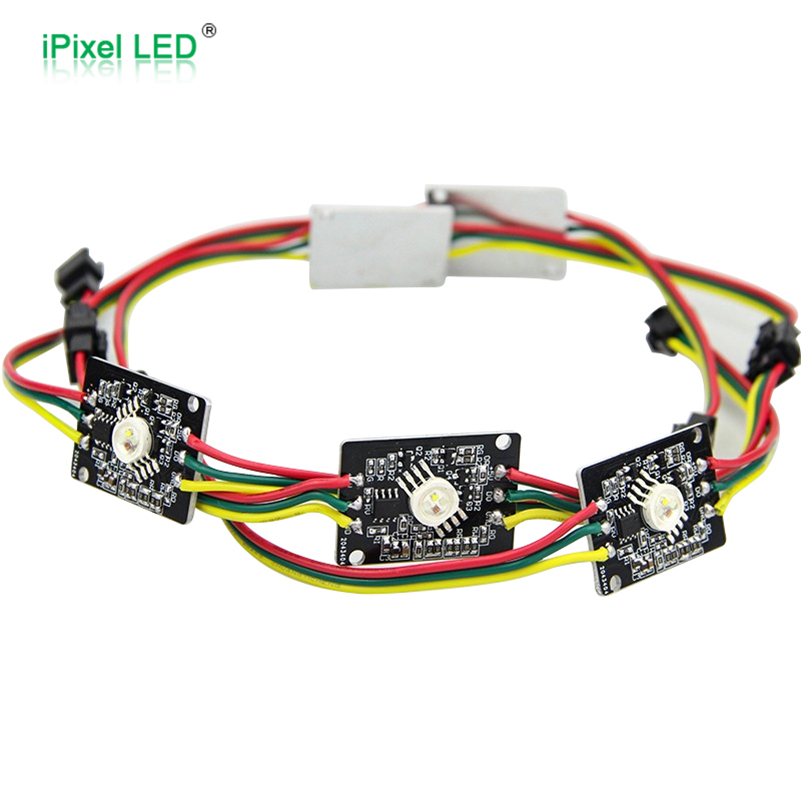

each module contains a pair of JST connector and
packed by An-ti static bag



Dimension (unit:mm)

P032 RGBW Digital LED Module
