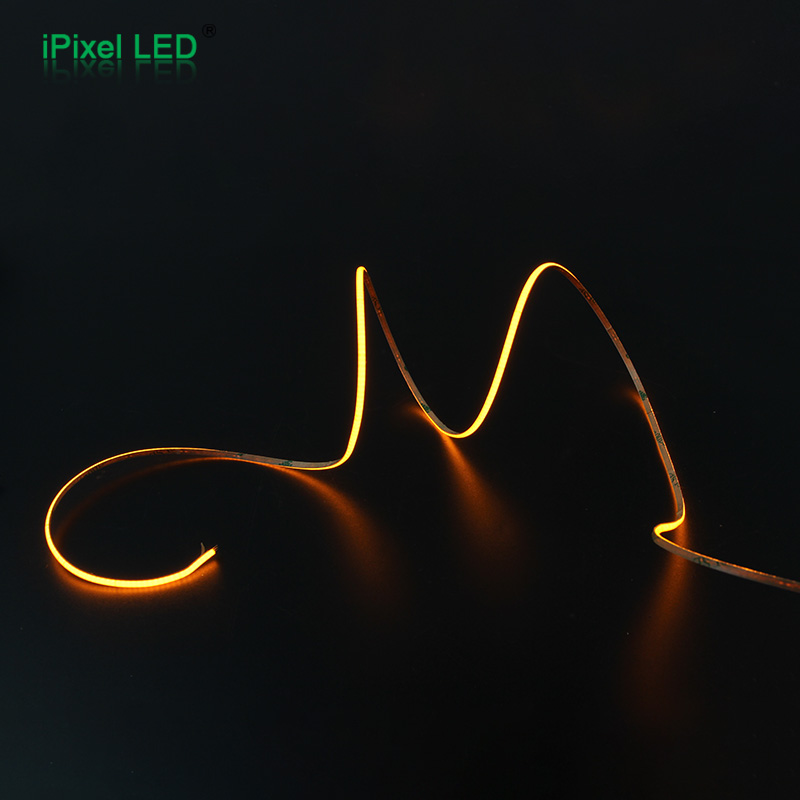

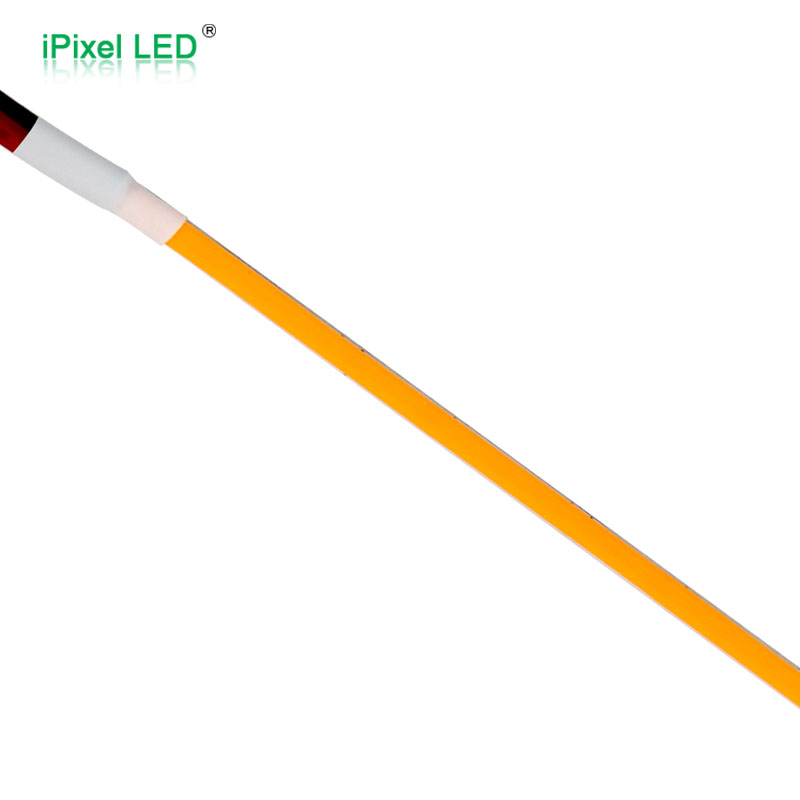

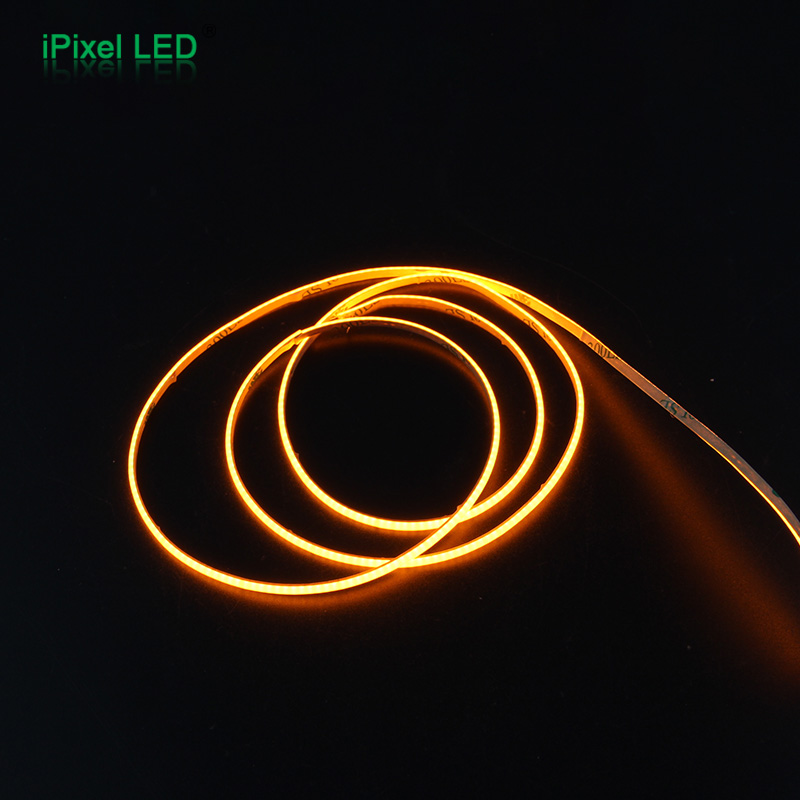

-This is a COB LED strip,high density with 480LEDs/m
-The chip mounted on FPC directly,uniform light no hot spot /shadow
-Input voltage is DC12V
-Flexible PCB,the FPCB color is white

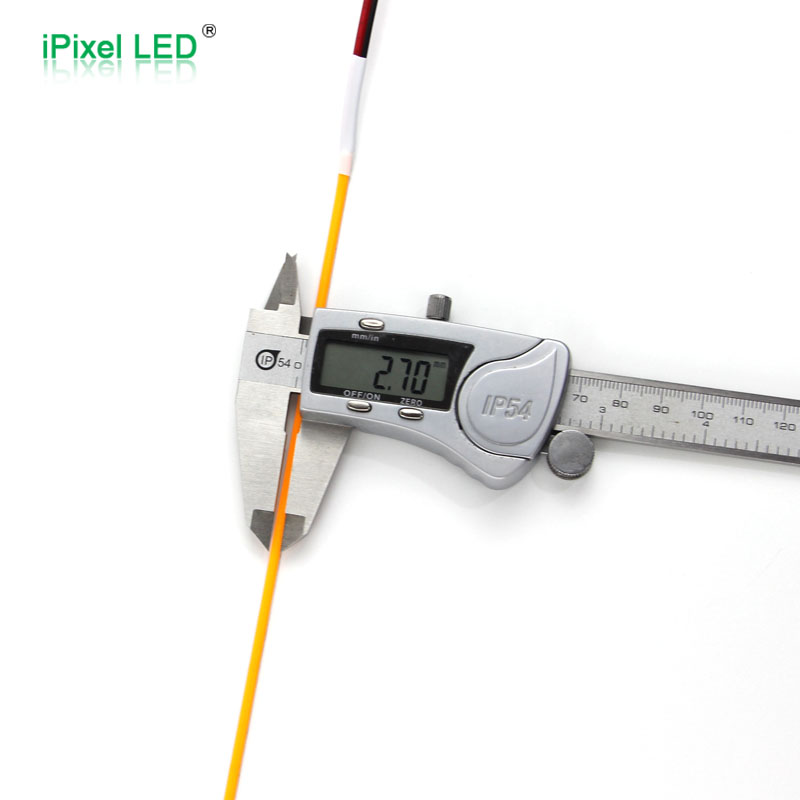

-The FPCB width is 2.7mm, 1 +2 Oz copper each small section can be cut off
-Standard 5M/roll, length can be customized
|
PN |
S003480ZB1LZ |
|
Voltage |
DC12V |
|
LED Type |
COB |
| LED Quantity |
480LEDs/m |
| Luminance(lm/m) |
350 |
|
SDCM |
＜5 |
| CRI | Ra 90 |
|
Dimension |
1000x2.7mm |
|
Cutting unit |
12.5mm |
| Materiar | FPC |
|
Power |
5W/m |
|
IP Rate |
IP20 |
| O.T | -25℃ ~ 60℃ |
Dimension (unit:mm)
