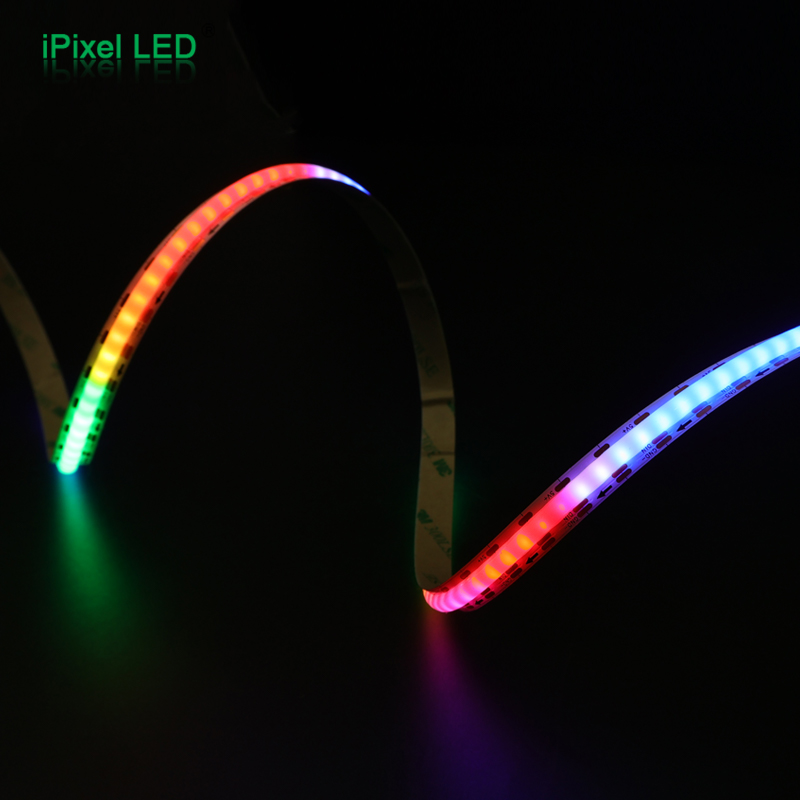

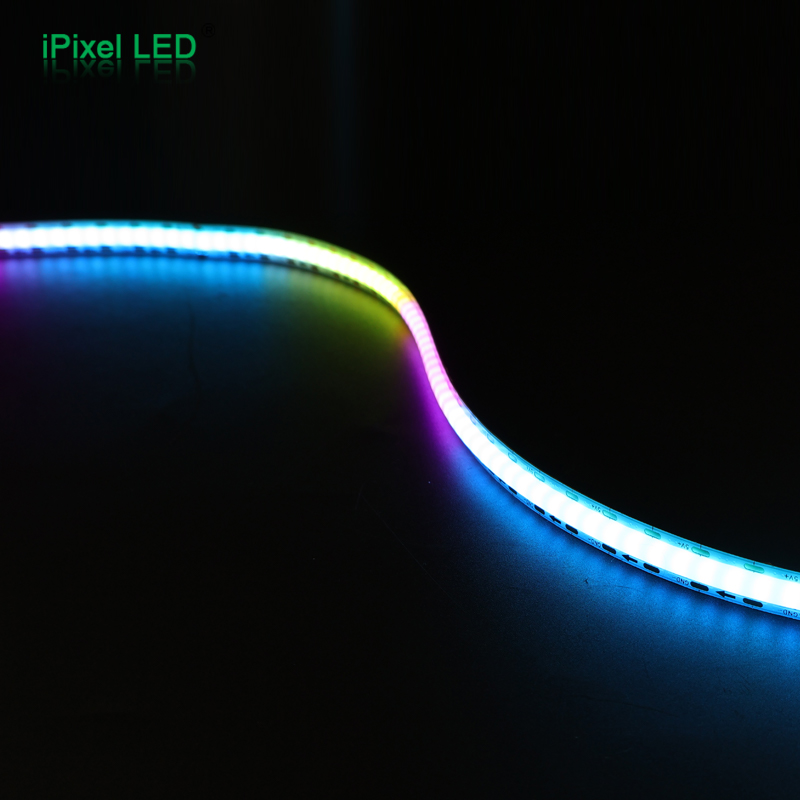

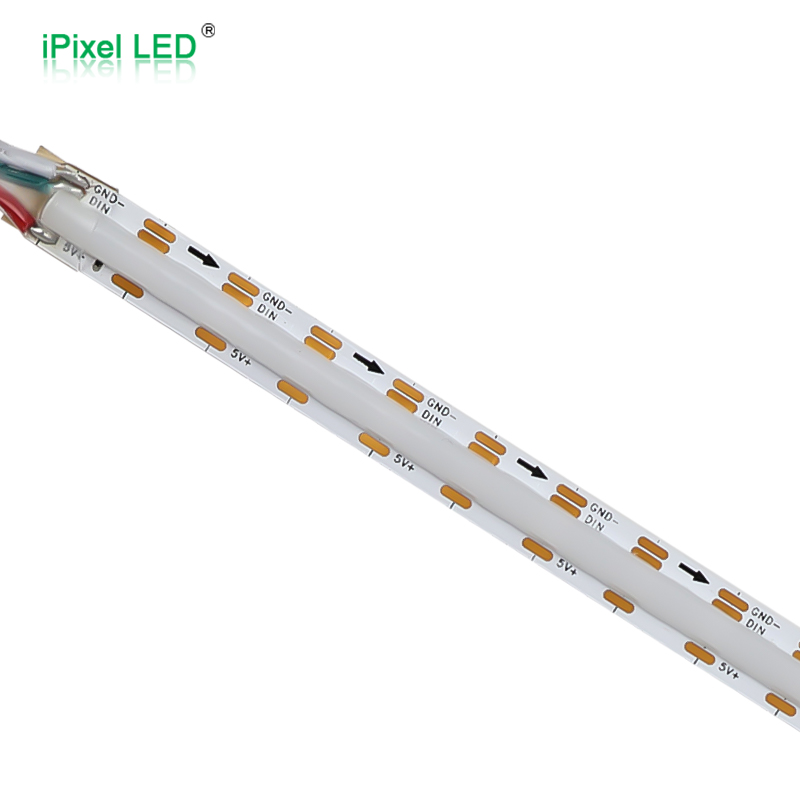

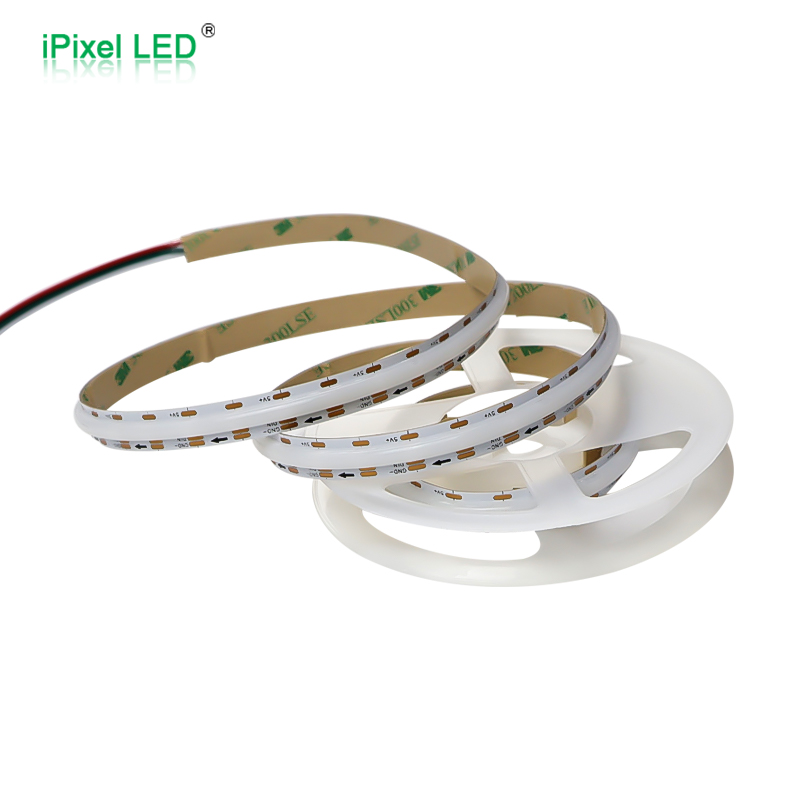

-5V digital LED strip, dotless dream color withCOB design.
-256-level gray chip is used to achieve moredelicate change effects. The chips also keep consistent brightness and mixing effects frombeginning to the end.
-90 pixels per meter, cutting distance 11.1mm.
-Double layer FPC, balancing the voltage dropping,heat dissipation and flexibility.
|
PN |
S010180ZA3SA8 |
|
Voltage |
DC5V |
|
Power |
14W/m |
|
SMD Type |
COB |
| LED Quantity |
180LEDs/m |
|
Color |
RGB |
|
Control |
SPI/SK6805 |
|
Cutting length |
11.1mm |
|
Dimension |
5000*10mm |
|
Luminance/m |
R:55 G:200 B:40 lm |
|
Wavelength |
R:615-630 G:520-535 B:450-460 |
| Beam Angle | 180° |
|
IP Rate |
IP20/IP65 |
| O.T | -25℃ ~ 60℃ |
Dimension (unit:mm)
